CVD Diamond Heat Spreader

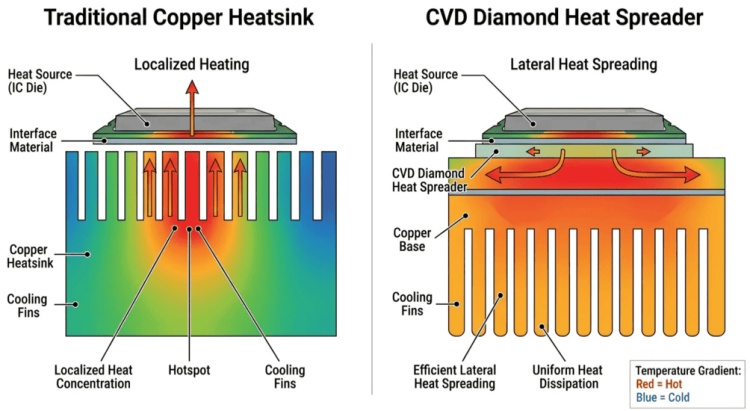

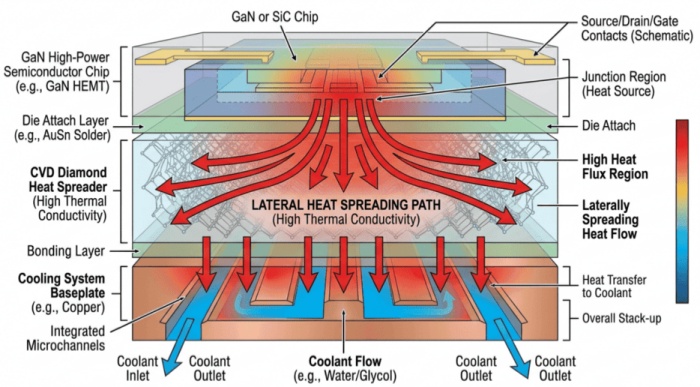

As semiconductor power densities skyrocket, traditional materials like Copper and SiC are no longer enough to prevent thermal throttling. Semixlab’s CVD Diamond Heat Spreaders (Chemical Vapor Deposition) offer the world’s most efficient thermal diffusion path. Designed as a high-performance "Heat Spreader" rather than a traditional finned heatsink, our diamond substrates are placed directly between the heat-generating chip (GaN, RF, or AI ASIC) and the secondary cooling layer to rapidly "spread" heat laterally, eliminating catastrophic thermal hotspots.

Why Engineers Actually Choose Diamond ?(Not Just Specs)

Most datasheets highlight thermal conductivity. That’s only part of the story.

In practice, engineers choose diamond when:

● copper is no longer enough

● AlN or SiC substrates hit their limits

● system lifetime becomes more valuable than upfront cost

It’s usually not the first option—but it becomes the only option at the high end.

Material Grades (Engineered for Different Thermal Loads)

We don’t position grades as “better vs worse”—they’re matched to real use cases:

TC1200: A practical choice for standard RF and LED applications where cost-performance balance matters.

TC1500: Typically used in 5G infrastructure and GaN modules where thermal headroom starts to tighten.

TC1800+: Selected for extreme scenarios—laser systems, aerospace electronics, and AI hardware—where every degree counts.

The Semixlab Edge

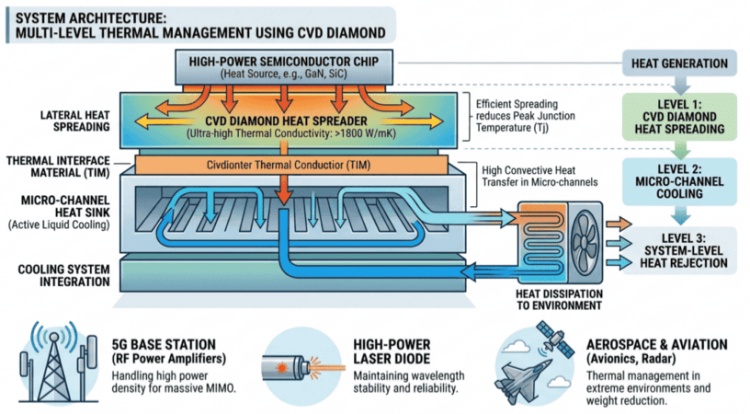

Semixlab doesn't just provide raw materials; we provide thermal solutions. From standard diamond plates (0.1–2mm thickness) to advanced Diamond/Cu composites and Micro-channel heat sink designs, we help you push the physical limits of your hardware. We look forward to your further inquiry.

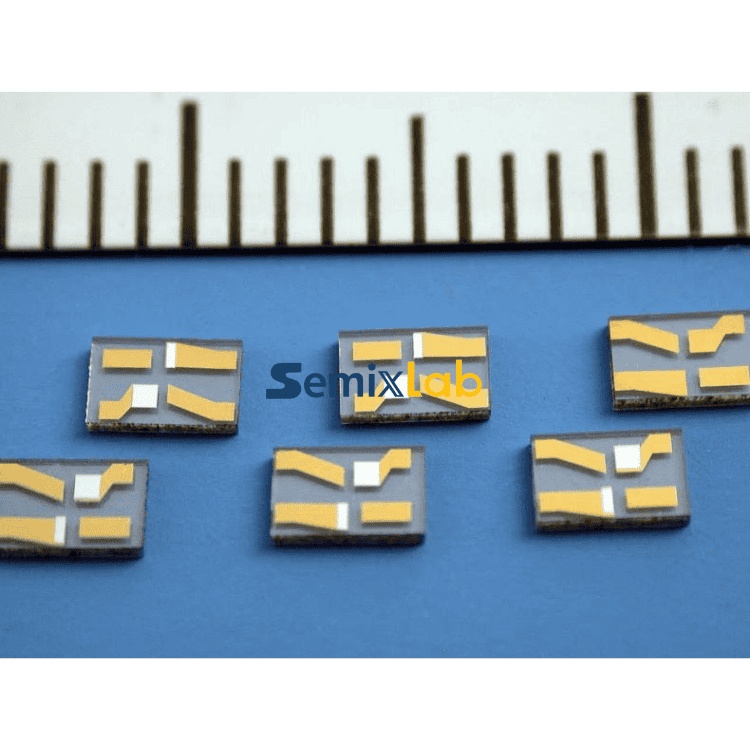

We provide high-purity polycrystalline and quasi-single-crystal diamond plates tailored to specific thermal demands:

In real-world applications, diamond is not used everywhere—it is typically introduced only when conventional thermal solutions start to fall short. That’s exactly where Semixlab diamond comes in.

1)GaN / SiC / Ga₂O₃ Power Devices

In high-power semiconductor platforms such as GaN, SiC, and emerging Ga₂O₃, thermal density is no longer a secondary issue—it directly limits performance.

Diamond substrates are often selected when:

● junction temperature becomes a bottleneck

● power density keeps increasing

● long-term reliability is a concern

You’ll commonly see this in radar systems and EV power electronics, where heat is not just a side effect—it’s the main constraint.

2)RF & Wireless Infrastructure

For RF engineers, the problem is familiar:

as frequency and power go up, thermal margin disappears quickly.

Diamond doesn’t “improve” performance in a vague way—it simply allows devices to run harder without thermal runaway.

Typical use cases include:

● high-frequency RF power amplifiers

● base station front-end modules

● GaN-on-diamond architectures

In many designs, it’s not about optimization anymore—it’s about making the system viable at all.

3)Optoelectronics (High-Power Laser Systems)

Laser engineers usually care about one thing: stability over time.

Once thermal drift kicks in, wavelength shifts, efficiency drops, and lifetime follows.

Diamond helps by pulling heat away fast enough to keep the system within a stable operating window—especially in high-power laser diodes where conventional substrates struggle.

4)Aerospace & Harsh Environments

Not every material survives vacuum, high radiation, and extreme temperature swings. Diamond does.

That’s why it shows up in:

● satellite electronics

● space-grade RF systems

● compact, high-reliability modules

Here, weight also matters. Diamond offers a rare combination: high thermal performance without adding bulk.
