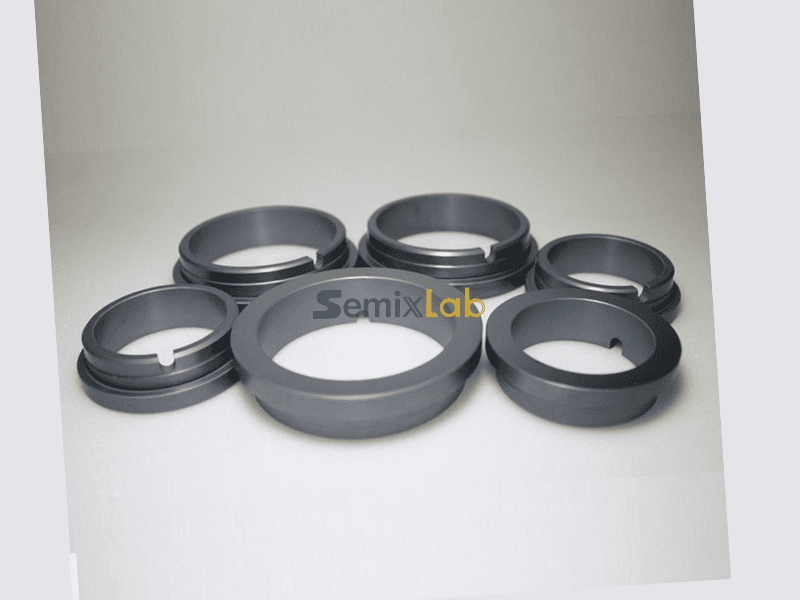

Why Are SSiC Sealing Rings Increasingly Used in Semiconductor Etch Process?

In modern semiconductor manufacturing, the etch process is one of the toughest steps. The high heat, harsh gases, and fast cycles can quickly wear out equipment, especially the seals that keep the chamber airtight. Traditional graphite or ceramic seals often can't handle these conditions, which leads to frequent maintenance and downtime. Recently, sintered silicon carbide (SSiC) sealing rings have gained attention because they are much more durable and resistant to chemicals. They withstand heat and corrosion better, allowing equipment to run longer and more reliably a major benefit for factories trying to maintain high production.

Sealing performance requirements in plasma etch environments

In plasma etch systems, sealing rings play a crucial role in keeping the process stable and the chamber clean, and they face some of the harshest conditions in semiconductor manufacturing. Inside an etch tool, high-energy plasma, reactive gases, and rapid temperature changes can quickly wear down materials that aren't up to the task. Even a tiny leak can let process gases escape or contaminants enter, affecting etch uniformity and wafer yield. To perform well, a sealing ring must handle repeated heating and cooling without cracking or forming gaps, resist the corrosive attack of many etch gases, and maintain mechanical stability under compression and pressure changes. Traditional graphite or ceramic materials often struggle to meet all these demands, slowly degrading over time and leaving particles that could contaminate wafers. Sintered silicon carbide, or SSiC, has emerged as a stronger alternative. Its material properties allow it to withstand high temperatures with minimal expansion, resist chemical damage, and keep its shape over many cycles. This consistency ensures predictable performance from batch to batch and reduces maintenance interruptions. For engineers running plasma etch tools, using SSiC rings can make a real difference, improving both the efficiency of production and the quality of the wafers produced, which is critical in high-volume semiconductor manufacturing.

Chemical and mechanical properties of sintered silicon carbide

Sintered silicon carbide, or SSiC, is a material built to handle the harsh conditions of semiconductor etch processes far better than most traditional sealing materials. Chemically, it stands up to nearly all reactive gases used in plasma etching, including fluorine- and chlorine-based gases, so it resists corrosion and breakdown even after hundreds or thousands of cycles. In contrast, standard graphite or alumina seals can slowly erode, leaving tiny particles that may contaminate wafers. This chemical stability keeps the etch process cleaner and more consistent. Mechanically, SSiC is extremely strong and hard, with a dense, uniform structure that resists cracking and deformation under high temperatures and mechanical stress. Sealing rings in plasma etch tools are repeatedly compressed as the chamber is assembled and pressurized, and SSiC rings maintain their shape through these cycles, ensuring a tight seal every time. Its low thermal expansion also reduces gaps that could compromise the chamber's airtightness. On top of this, SSiC is highly wear-resistant, withstanding friction against mating surfaces without chipping or flaking, which extends the ring's lifespan and reduces maintenance downtime. Overall, the combination of chemical resistance, mechanical strength, thermal stability, and durability makes SSiC a reliable choice for engineers, helping etch tools run longer, cleaner, and more predictably under the most aggressive conditions.

Comparison between SSiC, graphite, and coated graphite seals

When selecting sealing rings for plasma etch tools, it helps to understand the differences between graphite, coated graphite, and SSiC, as each material performs differently under various conditions. Graphite has been a traditional choice because it is easy to machine and relatively inexpensive, and it handles moderate temperatures and pressures reasonably well. However, in aggressive etch environments, graphite can wear quickly, react with gases, and produce particles, which increases contamination risks and maintenance needs. Its higher thermal expansion also makes it more prone to forming gaps during heating and cooling cycles. Coated graphite improves on these limitations by adding a protective layer, often of a hard material like tantalum carbide, which boosts chemical resistance and slows erosion. While coated graphite lasts longer than plain graphite, the coating can eventually wear off, and defects in the layer can reduce effectiveness, exposing the underlying graphite. Sintered silicon carbide, or SSiC, provides the strongest overall performance for demanding etch processes. It is chemically inert to most etch gases, has very low thermal expansion, and maintains mechanical strength over many cycles. Unlike coated graphite, its material is consistent throughout, so there is no risk of a weaker core being exposed. This durability reduces process interruptions, particle generation, and maintenance, making SSiC the preferred choice for high-volume, aggressive plasma etching where uptime and wafer quality are critical, while graphite or coated graphite may be acceptable for less demanding conditions.

Use cases in dry etch, CVD, and vacuum process chambers

SSiC sealing rings are becoming increasingly common in various semiconductor process chambers because they can withstand some of the harshest conditions in the industry. In dry etch tools, the plasma environment is highly aggressive, with reactive gases like CF₄, SF₆, and Cl₂ attacking many traditional materials. SSiC rings resist corrosion from these gases and maintain a tight seal even with rapid heating and cooling, which helps preserve etch uniformity and reduces contamination a critical factor for advanced nodes where even tiny particles can ruin a wafer. In chemical vapor deposition (CVD) chambers, temperatures often exceed 1,000°C, and corrosive precursors can quickly degrade graphite or ceramic seals. SSiC's chemical resistance and thermal stability allow longer deposition cycles without seal failure, improving tool uptime and lowering maintenance costs. Vacuum process chambers also benefit from SSiC, as achieving ultra-high vacuum requires seals that do not outgas or deform under pressure changes. SSiC's low thermal expansion and strong mechanical properties help maintain a tight vacuum, which is essential for processes like atomic layer deposition or plasma etching where gas purity and pressure stability directly impact wafer quality. Real-world fab experiences show that switching from coated graphite to SSiC in 300 mm dry etch tools extends tool life, reduces particle-related defects, and cuts downtime. In CVD tools, SSiC helps maintain coating uniformity over long runs. Overall, SSiC combines chemical resistance, durability, and thermal stability, making it a highly reliable choice across multiple chamber types in modern semiconductor manufacturing.
