What Is the Role of the Aixtron G5 Ceiling Component in MOCVD Systems？

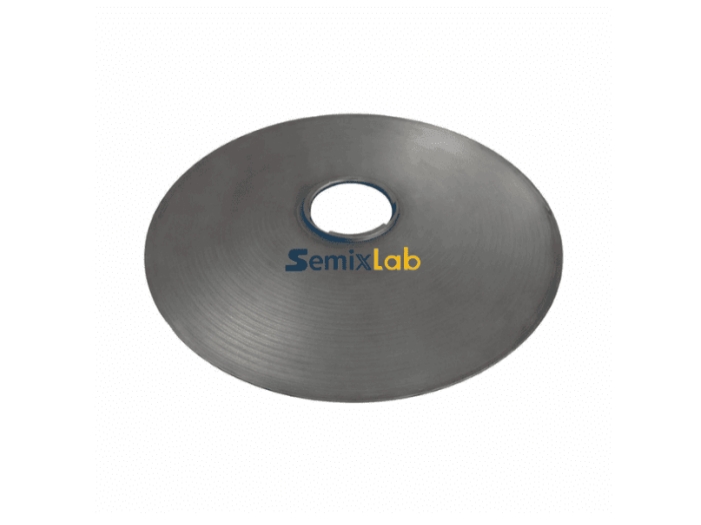

When it comes to MOCVD systems, every component has its role such as components that you may not see as often. Aixtron G5 ceiling component is an element that is silently playing a great mode. Placed at the reactor chamber top, it assists in the control of gases flow and in keeping temperature constant, and it also aids in obtaining uniform deposition on the lower wafers. In the vast majority of cases, when most engineers notice that the ceiling element is in good condition, then their layers become more balanced and the flaws are minimized. It would also be beneficial to know the mechanics of this piece so that you can troubleshoot issues and keep your system running smoothly.

Ceiling component function in gas distribution and flow control

All depends on the gas distribution in a MOCVD system. The Aixtron G5 ceiling component is installed on the top of the reactor and acts as the overall traffic controller of all process gases. The design helps in distributing the gases on the wafer surface in a way that every part of the wafer receives the same mixture. Where the gases do not move well, we shall have areas where they are thicker and areas where they are thinner, and with this there will be uneven films and defects. The ceiling component generally has many small nozzles or holes which scatter the gases entering the chamber. It quantifies those angles, speed and direction of these flows and then can manage them so that precursors, like metal-organic compounds and hydrides, are delivered to all sides of the wafer in the same way. This is especially important with large wafers or when loading a lot of wafers and any little difference in the distribution of the gases could add to the quality problems observed. The other significant role of the ceiling element is to help maintain a steady flow even in changing conditions. Pressure and flow rate can change during a long run or when changing between processes. The ceiling component balances these differences, resulting in a less vigorous turbulence and identical environment around the growth. The other observation that engineers have found is that well aligned and clean ceiling parts lead to fewer particles and more even layer thicknesses. Life practice shows that even little trouble with the ceiling element, like a blocked nozzle or slightly inaccurate, can lead to a reverberation effect in the full run. Frequent checking, cleaning and understanding of the flow direction of the gas across the wafer will save time and avoid wastage of material. In short, the ceiling aspect is not a passive feature of the environment, but rather an active component of the environment, so it can render your epitaxial layers smooth and homogenous, or it can render them highly varied.

Material and coating requirements for long-term stability

The Aixtron G5 ceiling element operates in a harsh environment. Every Mocvd reactor run exposes it to extreme temperatures, reactive gases and continuous chemical assault. It must have the proper materials and coatings to be able to withstand all of this without being warped or corroded. The majority of ceiling parts are composed of high stainless steel, Inconel, or other alloys that are resistant to heat. These materials can withstand the cycles of heating and cooling and have the structural integrity necessary to facilitate the accurate delivery of gases. Coatings are also equally important. The material is coated with a thin, protective film which, in most cases, is composed of some sort of ceramic such as aluminum oxide or silicon carbide which allows the material to withstand chemical reactions with the process gases. The absence of this layer will cause pitting, corrosion, or metal contamination on the wafers even with a slight exposure. A good coating makes the surface of the components smooth and this also aids in the flow of gas being consistent. Flat surfaces eliminate turbulence, minimize accumulation of particles and clean up is easier during maintenance. The longevity is not only the material but also the treatment and maintenance provided to the component. Hundreds of cycles can make components with a high-quality coating wear out, yet frequent inspections remain significant. Any chips, scratches or non-uniform wear may act as hotspots to chemical attack and may influence the uniformity of the growth of the wafer. In practice, engineers tend to observe that with a good coating applied to ceiling components, it takes a long time before particles of the components cause problems and that the flow remains consistent over a long time compared to the period when the component was not coated or when the coating is not of high quality. It is not merely a matter of ensuring one survival through a single run, but stability and predictability of your MOCVD system and the fact that it becomes easier to maintain over months or years, depends on the choice of material and coating. An efficient design of ceiling delivers payback in terms of fewer interruptions to the process and higher quality wafer.

Interaction with precursors and plasma environments

The ceiling component of the MOCVD system does not simply direct gases but it comes in direct contact with the precursors that constitute your epitaxial layers. These antecedents such as trimethylgallium or ammonia are very reactive. The material and the coating must not react to undesirable chemicals when they pass across the component of the ceiling. Once the surface begins degradation or reacts, it may produce particles or have uneven gas distribution, which has direct implications on the quality of the layer. This is the reason why engineers are very keen on the interactions between the ceiling component and these chemicals. Plasma environments are also added in some sophisticated processes in order to accelerate the growth rates or to alter the character of the layers. Plasma forms charged particles and radicals with even more aggressive ability to attack the surfaces than normal gases. The ceiling element should be made to withstand such conditions without collapsing or polluting the chamber. Protective coatings such as silicon carbide or aluminum oxide offer a protective layer whereas smooth surfaces eliminate the local accumulation of byproducts, which may cause plasma non-uniformity. Practical experience proves that even minor flaws count. A dent or a fracture on the ceiling element may serve as a hotpoint where precursor molecules break down prematurely. This does not only decrease efficiency of growth, but also results in the formation of particles, which adsorbs onto the wafers. Engineers usually monitor these interactions, by observing deposition patterns, as well as by counting the number of particles in the chamber. To any user of Aixtron mocvd systems, knowledge of these interactions can be used to arrange maintenance and to understand lifetime of components. Frequent cleaning, handling and plasma exposure monitoring can do a lot of good. A ceiling element managing precursors and plasma effectively keeps growth layers consistent, minimizes contamination, and increases the consistency of processes. Simply stated, it is not an inactive component of the system, but a dynamic influence on the chemical environment that defines the quality of wafer.

Impact on epitaxial uniformity and yield

The quality of your epitaxial layers is directly influenced by the ceiling component of a MOCVD system. There is an even distribution of gases so all the wafers are exposed to the same set up and this implies that the layers are growing at an equal rate throughout the surface. When the component of ceiling is misaligned, damaged or applied unevenly, or when certain portions of the wafer are exposed more than others, certain portions of the precursor can be applied more than other portions. That results in thicker points, thinner points, and even defects that may decrease the performance of the devices. Even-layers of epitaxial are not only about the look but the electrical and optical characteristics of the completed device. As an example, in LEDs or high frequency transistors, even a slight change in the composition or thickness of the layer can result in asymmetrical light emission, lower efficiency or worse yield in test. These problems can be generally attributed to the gas flow patterns in the chamber by engineers and the ceiling component will be considered as a major factor in controlling the patterns of the gases. Small changes to the ceiling part usually result in an improvement in yield, such as realigning the ceiling, polishing the surface, or a new coating is applied. Even simple advances in the uniformity of gases can cut on the amount of non-specification wafers, which saves on time and waste. Other production teams follow wafer-to-wafer uniformity and realize instant dividends following repairs or improvements in the ceiling element. The ceiling component in reality is one such part that silently gives your process reliability. When it is functioning properly, the growth of the wafers is even, fewer defects are observed, and the throughput is expected to increase. The neglect of its state may result in developing disproportionate growth, increased rejection and additional expense of reworking. The ceiling element is a minor undertaking but one that has huge spill over on quality and output in any Mocvd system procedure.
