What is the operating principle of the SiC Carrier Plate for LED Etching in the LED Etching process?

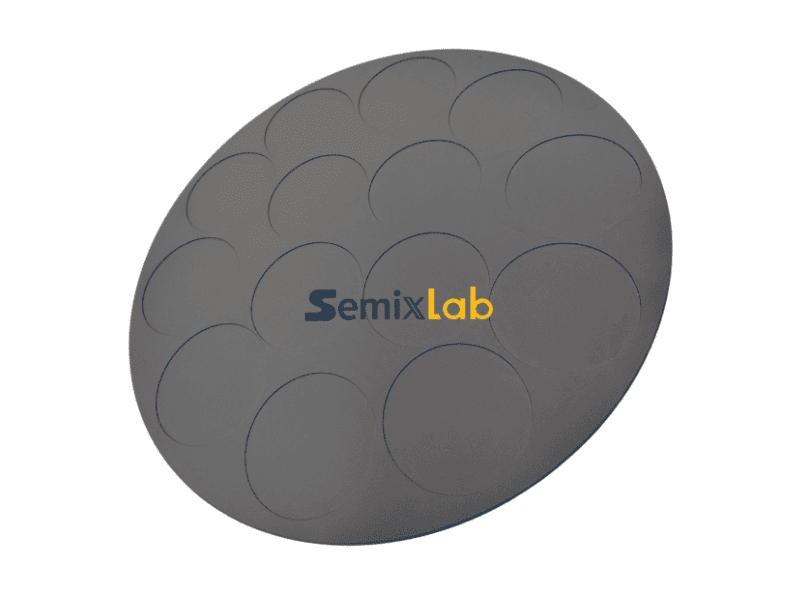

In LED manufacturing, precise etching is essential for the final product’s performance and reliability. The SiC (Silicon Carbide) carrier plate is crucial during this process, providing a stable and heat-resistant platform for the LED wafer. This plate protects the wafer and ensures even heat distribution, which leads to consistent etching. Knowing how the SiC plate functions helps improve yields and quality of LED chips.

Understanding the Role of the SiC Carrier Plate in the LED Etching Process

The SiC carrier plate is important in the LED etching process as it supports the wafer while being exposed to high temperatures and chemicals. It provides a stable and heat-resistant base that keeps the wafer flat, preventing any warping or cracking. This stability is vital because even small movements or uneven heat can create defects on the LED surface, which can affect the product’s efficiency and lifespan.

Silicon Carbide is used for these plates due to its great thermal conductivity and resistance to chemical corrosion. It helps distribute heat evenly across the wafer, avoiding hot spots that could lead to uneven etching. This even heat ensures consistent material removal, essential for creating precise LED patterns. The hardness and chemical stability of the SiC plate allow it to be reused in tough environments without degrading, ensuring steady results over time.

Operators typically secure the wafer on the SiC carrier plate , using thermal grease or vacuum suction, and then it moves through the etching chamber. By maintaining stability and even heating, the SiC plate enhances the performance and lifespan of the LEDs. Understanding this role helps technicians improve their etching processes.

Material Characteristics of SiC Carrier Plate: Strength, Purity, and Thermal Stability

Silicon Carbide (SiC) carrier plates are ideal for the LED etching process due to several key features. Strength is crucial, as LED wafers are thin and fragile. The hard nature of SiC allows it to support the wafers without bending or breaking, preventing scratches and surface damage.

Purity is also important for preventing contamination during etching, as even small impurities can leave residues or cause uneven etching. High-purity SiC plates help keep the LED surface clean and defect-free, ensuring high-quality chips.

Thermal stability is another vital property. LED etching involves high temperatures, which can warp other materials. SiC retains its shape and strength even at high heat, with excellent thermal conductivity that distributes heat evenly, avoiding hot spots. This stability allows the plate to handle repeated heating and cooling cycles without cracking, which is essential for efficient production.

In LED manufacturing, these characteristics make SiC carrier plates reliable, allowing operators to focus on precise work, knowing the plate provides a stable and even platform, directly impacting the quality and yield of production.

Operating Principle: How the SiC Carrier Plate Ensures Precision and Process Stability

The SiC carrier plate provides a stable environment for the LED wafer during etching. It securely holds the wafer flat and in the right position to prevent any shifts that could cause uneven etching, affecting LED performance. The plate’s strength helps maintain uniform chemical reactions and heat distribution, which is essential for creating precise microstructures that enhance LED efficiency and brightness.

Thermal management is crucial, as the etching process involves high temperatures that can cause warping. The Silicon Carbide material evenly spreads heat to avoid temperature differences across the wafer, enabling consistent interactions with etching chemicals.

Chemical resistance is another important feature of the SiC plate. Since the etching process uses strong acids or plasma treatments that can damage weaker materials, the chemical stability of SiC prevents contamination or degradation over time. This stability allows for repeated etching cycles without compromising wafer quality.

In practice, the wafer is placed on the SiC carrier plate and may be secured with thermal paste or vacuum suction. The plate then moves through the etching system, ensuring a flat, clean, and evenly heated surface. The combination of strength, thermal stability, and chemical resistance helps produce high-quality LEDs consistently.

Typical Applications and Compatibility in LED Etching Equipment

SiC carrier plates are important in LED etching equipment because they are strong, stable, and heat-resistant. They are used in various LED production processes, including wet chemical etching, dry etching, and plasma-based etching. The main function of these plates is to provide a flat, stable surface for the wafers while enduring high temperatures and harsh chemicals. This helps create accurate patterns on LEDs, which is crucial for their light output and efficiency.

These plates are designed to fit standard wafer sizes like 2-inch, 4-inch, and 6-inch, making them suitable for different production requirements. They can work with both sapphire and silicon-based LED wafers, which are common in the industry. Their thermal and chemical stability ensures reliable performance without causing defects or contamination.

Manufacturers select SiC plates based on their specific etching equipment needs. Using the appropriate SiC carrier plate minimizes wafer breakage, enhances yield, and reduces rework, benefiting both small labs and large production lines. This makes them vital for consistent LED etching outcomes.

Why Choosing a High-Quality SiC Carrier Plate Matters for LED Manufacturers

Choosing a high-quality SiC carrier plate is crucial for LED manufacturing. Although SiC plates may look similar, their effectiveness varies based on purity, flatness, and how precisely they are made. A well-crafted plate offers better wafer protection, more even etching, and fewer production problems. In contrast, a low-quality plate can warp, develop cracks, or release harmful contaminants, leading to poor etching, wasted materials, and increased costs.

For LED manufacturers, consistency is vital. LEDs must meet strict performance standards, and even minor variations can affect their brightness or lifespan. High-quality SiC plates provide stable thermal performance and an ultra-flat surface, allowing for uniform etching for each wafer. This uniformity significantly influences the efficiency and appearance of the final LED product.

Durability is another important factor. High-grade SiC plates can withstand many etching cycles without breaking down, resulting in fewer replacements and less downtime. Manufacturers using reliable plates often achieve higher yields and more predictable outcomes, making their operations more cost-effective. Switching to high-quality SiC models can lead to immediate improvements in process stability and yield rates, making it a smart investment for LED manufacturers.
