What Is an SiC Coated Graphite Barrel Susceptor and Why It’s Essential for Stable Epitaxy?

In semiconductor growth, maintaining stable conditions during epitaxy is essential, and the barrel susceptor plays a key role in this process. Coated with silicon carbide (SiC), the susceptor holds the wafers inside the reactor while the semiconductor layers form. The SiC coating protects the underlying graphite from high temperatures and chemical reactions, while also providing a smooth, uniform surface.

How SiC Coating Enhances Thermal Uniformity in Epitaxial Processes

In epitaxy, maintaining a consistent temperature across all wafers is critical because even small variations can cause defects or uneven layer growth. A silicon carbide (SiC)-coated graphite barrel susceptor helps solve this problem. While graphite can handle high temperatures, it is porous and can react with gases in the reactor. The SiC coating seals the surface, making it more stable, resistant to chemical reactions, and able to spread heat evenly. This reduces hotspots or cooler areas that might affect wafer growth. Think of it like cooking on a pan that heats uniformly, ensuring every wafer experiences the same conditions. Using SiC-coated susceptors often results in wafers with more uniform layer thickness and fewer defects. The coating also improves reproducibility because the susceptor maintains its thermal performance over many cycles, reducing wear and minimizing the need for recipe adjustments. Overall, the SiC layer transforms a graphite barrel into a reliable thermal manager, ensuring consistent, high-quality wafers, smoother production, and less waste.

Key Advantages of Graphite Barrel Structures in High-Temperature Environments

Graphite barrels are a popular choice in epitaxy reactors because they handle high temperatures exceptionally well. They are strong, lightweight, and can be shaped precisely to hold wafers securely, ensuring stability during gas flows and temperature changes. This prevents wafers from shifting, which could otherwise cause uneven layers or defects. Graphite also has excellent thermal conductivity, quickly absorbing and distributing heat to help wafers reach target temperatures efficiently. When combined with a silicon carbide (SiC) coating, this thermal performance becomes even more reliable, as the coating protects the graphite from chemical reactions that might degrade it over time. Graphite barrels are highly customizable, allowing operators to adapt shapes and sizes to optimize gas flow, temperature uniformity, and wafer exposure. Unlike many metals, graphite resists thermal stresses such as expansion and contraction, making it safer and more reliable for long-term use. With proper handling and an SiC coating, graphite barrels can endure hundreds or even thousands of cycles while maintaining consistent performance, reducing maintenance needs and supporting stable production.

Comparing SiC-Coated vs. Uncoated Susceptors: Performance and Lifetime Differences

When deciding between an SiC-coated and an uncoated graphite barrel susceptor for epitaxy, the differences in performance and lifespan are significant. Uncoated graphite is lightweight, easy to shape, and handles high temperatures reasonably well, but it is porous and reactive. During epitaxy, gases in the reactor can slowly erode the surface, alter thermal conductivity, and create uneven heating. This can result in layer thickness variations or defects in the wafers, and uncoated susceptors generally have a shorter lifespan, requiring more frequent replacement or maintenance. In contrast, an SiC-coated susceptor adds a protective silicon carbide layer that stabilizes the graphite surface chemically and helps distribute heat evenly. This ensures consistent temperatures across all wafers and reduces defects. Coated susceptors also last far longer, often enduring hundreds or thousands of cycles compared to uncoated ones. While the initial cost is higher, the improved reliability, uniform wafer quality, and reduced maintenance make SiC-coated barrel susceptors the preferred choice for high-precision or high-volume epitaxy operations.

Typical Applications of Barrel Susceptors in LED and Power Semiconductor Manufacturing

Barrel susceptors play a critical role in semiconductor manufacturing, particularly in LED and power device production, by holding wafers securely during epitaxy while the reactor supplies gas and heat. This stability ensures that wafers remain in place and experience uniform temperatures, preventing defects that can reduce yield or performance. In LED manufacturing, even small variations in layer thickness or composition can impact brightness and color consistency, so SiC-coated graphite barrel susceptors are used to maintain thermal stability across the wafer, producing uniform light-emitting layers and consistent device performance. Power semiconductors, such as those used in electric vehicles or renewable energy, often rely on wide-bandgap materials like GaN or SiC that require high-temperature growth. SiC-coated graphite barrels withstand these temperatures without warping or reacting with gases, providing a reliable platform for precise layer deposition and reducing the risk of device failure. Barrel susceptors are also valuable in R&D, where flexible graphite designs accommodate various wafer sizes and reactor setups. Their combination of mechanical stability, thermal uniformity, and chemical resistance makes them essential for producing high-quality, reliable semiconductors.

How Semixlab Ensures Purity, Coating Quality, and Dimensional Stability

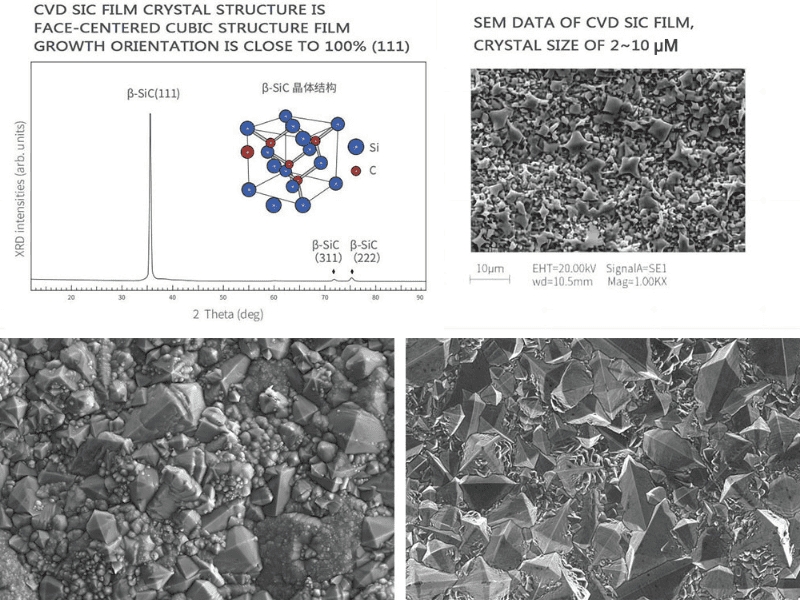

When working with high-temperature epitaxy, the quality of the susceptor is critical for consistent semiconductor growth. Semixlab ensures that each SiC-coated graphite barrel susceptor meets strict standards for purity, coating quality, and dimensional stability. They start with high-purity graphite, which minimizes metal contaminants or particles that could affect wafer surfaces during growth. The silicon carbide (SiC) coating is applied using a controlled chemical vapor deposition (CVD) process, producing a uniform, dense layer that resists corrosion and withstands repeated high-temperature cycles. This smooth coating prevents gases from reacting with the graphite underneath, keeping the reactor environment clean and supporting consistent epitaxial results. Semixlab also carefully controls coating thickness and matches the thermal expansion of the SiC to the graphite base, reducing stress and preventing cracks during heating and cooling. Each susceptor is inspected for surface quality and dimensional accuracy before shipping, ensuring wafers sit flat, heat evenly, and that manufacturers achieve high yields reliably over many cycles.
