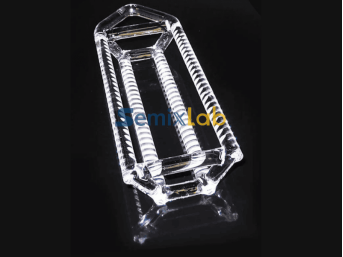

What Is a Quartz Boat Wafer Carrier and How It Functions in Thermal Processes？

Machines and chemicals are generally thought of when discussing semiconductor manufacturing, but the tools that transport the wafers are not ignored. A Quartz boat wafer carrier can be not a very complex device, but provides a large part of the thermal treatment of oxidation, diffusion or annealing. It is essentially a highly purified form of quartz in a molded tool that contains silicon wafers in an ordered and uniformly spaced fashion, within a furnace. It is necessary to make sure that each chip is produced the same and without a flaw since there must be a method of keeping the wafers in such a way, the heat can reach them equally. It is possible to understand the mechanism of these carriers and simplify the whole process.

Fundamental design and material properties of quartz wafer boats

Quartz wafer boats are designed in such a way that they are able to contain different silicon wafers in order to ensure that they are stable and evenly distributed in a furnace. Its basic design is that of a long and narrow tray with many slots or grooves where the wafers are pierced vertically. This simplistic design may seem to be straightforward but all grooves and openings are calculated in such a way that the heat is evenly distributed across all the wafers. The said chips can be faulty because of the non-uniform heating process, and this is where the process of holding the wafers can be of greater importance than most people might think. This is really important to its shape which is high-purity quartz. Quartz wafer boat carrier can withstand very high temperatures without bending or breaking so it can be used in processes that are very high and exceed 1000 C. It is also impervious to most chemicals used in handling of semiconductors therefore it does not introduce pollutants that can compromise the quality of the wafer. In still other cases, the quartz is smoothed or finished to result in low roughness levels such that no particles can be formed that can scratch the wafers. Quartz boats are also available in various sizes based on furnaces and the count of wafers. The small boats may have a small number of wafers to conduct tests on a small scale and production level boats could carry dozens of wafers simultaneously. Certain designs have removable supports or additional stiffeners so that they do not bend during handling. The makers are also concerned with thermal expansion, quartz changes not much with temperatures, and wafers can remain in place without cracking or distorting when the temperature varies. Knowing such design decisions, it becomes easier to understand why Quartz wafer boat are a central component of thermal processes. They can be in the form of mere holders but balance strength, purity and accurate spacing so that the wafers can endure high temperatures cycles without damage and in a reliable manner.

Application in diffusion, oxidation, and LPCVD processes

Various thermal processes are performed in quartz wafer boats and these include diffusion, oxidation, and low-pressure chemical vapor deposition (LPCVD), where a consistent temperature and cleanliness is essential. During a diffusion furnace, wafers must be subjected to high temperature gases in order to allow dopants to enter the silicon. The quartz boat makes the wafers secure and lets the gas circulate evenly around the wafers, whereby the dopant is evenly spread on all the wafers. The lumpy spacing or a crooked holder may form a hot or cold spot resulting in a possibility of irregular electrical characteristics. During oxidation, wafers are subjected to the third step, which is exposure to high temperature oxygen or steam to produce a thin layer of silicon dioxide on the surface. The heating resistance and purity of quartz boats are ideal for this task. It does not react with oxygen or water, thus the oxide layer develops uniformly without contamination. The slot spacing in the boat should also be correct to avoid contact between wafers to prevent scratches as well as maintain a constant oxide thickness. In the case of LPCVD, chemical reactions are used at low pressure to provide thin films to the wafer. In this case, the wafers are arranged very accurately in the quartz boat inside the chamber so that gases are able to penetrate all surfaces equally. Any anomaly of the wafer placement may lead to variations in the film thickness or defects, which may affect the performance of the devices. In real life fab, the furnace is usually rotating or staggering the quartz boats, and before using a boat an operator is known to check it closely to ensure that there are no cracks or contamination. A tiny piece in the quartz has the capacity of generating particles that destroy wafers. Through the knowledge of the operation of quartz boats in these operations, the operators can minimize defects and achieve more predictable outcomes, and thermal processing has become more efficient and reliable.

Thermal stability and wafer alignment considerations

Thermal stability of quartz wafer boats is important when dealing with high temperature processes. Quartz is able to work with high heat conditions without bending and cracking, and thus the wafers are not spoilt by the heating and cooling process. When a boat becomes soft due to heat, wafers may slide or rub against one another leading to scratches or uneven heating or even breaking. That is why operators are very sensitive to the state of every boat and renew the ones that have signs of stress or micro-cracks. Another important factor is wafer alignment. The grooves or slots in the boat are not just to hold wafers, they are also used to position them accurately to ensure that all the wafers are subjected to the same temperature and exposure to gases. A minor misalignment can result in variation of the layer thickness during oxidation process or unequal doping in the diffusion process. A non-uniform deposition of the film can occur due to improper alignment and this may impact on the performance of the devices produced. Specific design characteristics of some boats are additional stiffeners or adjustable supports to ensure the spacing of the wafer when inserting or removing. The operators also take care of the boats to avoid tilting because the sudden motions may destroy the delicate wafers. When larger production lines are involved, several boats can be placed in a furnace and regular alignment will make a heat and gas flow even across the entire load. Practically, the operators of the fab boats in the real world use high intensity light to scan slots on boats before establishing the existence of any chip/deposit that can cause out of position wafers. Thermal stability is significant as well as alignment to ensure that wafers are not only safeguarded, but also that the process is as uniform as possible. The backbone of high-temperature wafer processing is a stable, perfectly aligned quartz boat, which has the quiet effect of making all the wafers undergo the same conditions, and thus semiconductor devices are made to be reliable and defect-free.

Common failure modes: devitrification and contamination

Quartz wafer boats can be strong and heat resistant but they can fail when they are not handled or maintained. Devitrification and contamination are so common. Devitrification is the gradual process that occurs in the crystallization of the quartz as a result of constant exposure to the high temperatures. This may form ridges or cracks or crevices in the boat. Wafers in a devitrified boat can not necessarily remain perfectly oriented and the surface roughness can create particles that scratch or break wafers. Devitrified boats also tend to break on being handled or heated and this may spoil an entire lot of wafers. History of each boat is normally followed by operators and the boats that exhibit early signs of devitrification are retired. Another great issue is contamination. Even minute particles of a past process, chemical residues or handling can settle on the boat and ultimately get onto the wafers. This may cause defects in oxide layers, uneven doping or problems in deposition of the thin-film. Contamination may also occur when the boat is not washed regularly or in case the boat is stored in a dusty area. To mitigate this risk, fabs may have special cleaning procedures, such as external exposure to ultrapure chemicals and baking the boat to dry it before it is loaded into a furnace, to exclude water or organic material. These modes of failure are costly in real-life fabs. One patty or a leaking boat may destroy dozens of wafers, which is time and resource consuming. This is why operators pay attention to the inspection of boats, keep control over their use, and adhere to the cleaning schedule. Learning the devitrification and contamination give users a glimpse that a quartz wafer boat is not a passive device, but it is an important component of wafer quality and process consistency. Proper maintenance makes wafers safe and of high quality during thermal processing.

When to choose quartz over SiC or graphite carriers

Selection of the appropriate carrier of the wafer depends on the process, temperature and sensitivity to the contamination. Quartz wafer boats are also in existence, particularly when high purity process of semiconductor is demanded, and purity is highly important. Quartz will not impose high risks of adding and introducing some metal impurities and particles to the wafers as it is a chemically inert material that can withstand the majority of process gases. This makes it the best in the processes like oxidation, diffusion as well as LPCVD since even the smallest contaminants can disrupt the functioning of the equipment. Graphite and Silicon carbide (SiC) carriers are strong. SiC boats have a high temperature capacity compared to quartz, they are more mechanically resistant and therefore are adapted well to extreme hot work or when the boat may be utilized repeatedly. Graphite carriers are also resistant to elevated temperature just like they are inexpensive but have the ability to react with some chemicals, and leave a trace of carbon on the wafers which is not acceptable in the delicate processes. Most commonly, an application of quartz is made, and the extent of purification of the wafer and elimination of impurities are more crucial than the necessity to have very high mechanical strength. Carriers of quartz will be used by the carriers of fabs utilizing a repeated oxidation reaction at portions of moderate temperatures (to around 1100o C) to prevent carriers made of graphite, which is less efficient due to the low probability of undesired reaction. Quartz is also easy to work with, and does not drop the wafer accidentally when loading or unloading the wafer as quartz is lighter. Finally, the quartz is utilized in situations where it has to be worked without defects and even-tempered temperatures. Where operating temperatures of the process are extreme, the length of the process cycle is excessive or handling is hard, then SiC or graphite would be desirable rather than purity. It is with such trade-offs that fabs are able to make correct carrier selection, safeguard wafers, and can be able to predict their performance in every batch.
