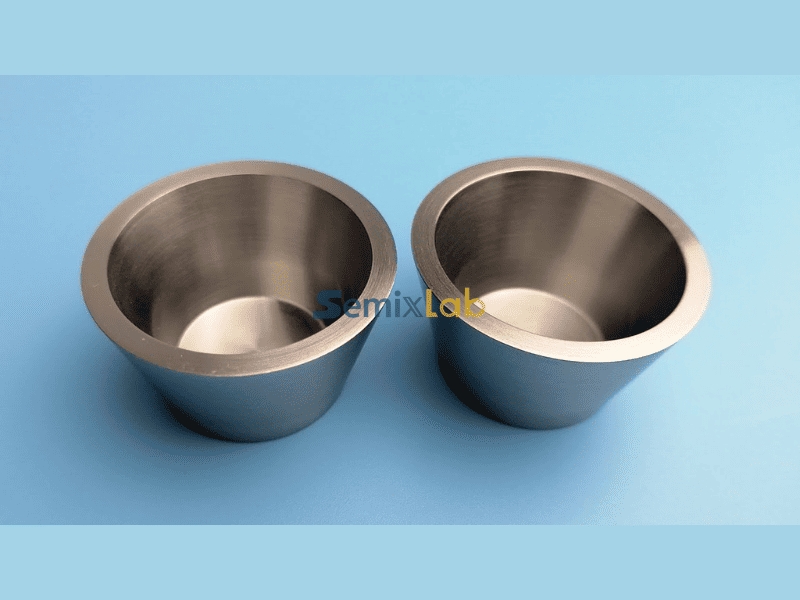

What Are the Advantages of TaC Coated Crucibles in Semiconductor Crystal Growth Processes?

In semiconductor crystal growth, even small details can affect the quality of the final crystal, and crucibles play a key role in this process. These containers hold the raw materials during melting and growth, and their material directly affects the purity and stability of the crystal. Traditional graphite crucibles can react with chemicals at high temperatures, which may introduce impurities or cause the crucible to degrade. Coating them with tantalum carbide , or TaC, makes a big difference. TaC-coated crucibles resist chemical reactions, withstand high heat better, and last longer, helping manufacturers produce more consistent and reliable semiconductor crystals.

Crucible performance requirements in crystal growth furnaces

In a crystal growth furnace, the crucible is one of the most important components, and its performance has a direct impact on the quality of the crystal. It must withstand extremely high temperatures, often above 2,000°C, without cracking or warping, because any deformation can ruin an entire batch and lead to costly material loss. Chemical stability is equally important, as crucible materials can react with oxygen, nitrogen, or even the crystal material itself. Reactions on the crucible surface can release impurities that get trapped in the crystal, reducing its electrical performance and uniformity. Thermal uniformity also plays a critical role. Uneven heating or cooling can create temperature gradients in the molten material, causing internal stress, defects, or irregular growth patterns, so a crucible that distributes heat evenly allows the crystal to form more predictably and consistently. Longevity matters as well. Crucibles that degrade quickly require frequent replacement, interrupting production and increasing costs. Coated crucibles, such as those with a tantalum carbide layer, address many of these issues. They resist chemical reactions, maintain their shape under high heat, and survive repeated heating and cooling cycles. In practical terms, this means manufacturers growing silicon carbide crystals can produce larger batches of high-quality, uniform crystals with fewer defects, keep production schedules on track, and improve overall yield, making coated crucibles a key factor in reliable semiconductor manufacturing.

How TaC coatings protect against chemical attack and sublimation

In high-temperature crystal growth, crucibles face extremely harsh conditions. The raw materials and molten substances can react with the crucible, and at very high temperatures, some surfaces slowly evaporate in a process called sublimation. Both chemical reactions and sublimation can introduce impurities into the crystal, reduce the crucible's lifespan, and disrupt the growth process. Coating the crucible with tantalum carbide, or TaC, helps solve these problems. TaC is highly stable at high temperatures and chemically resistant to materials like molten silicon, silicon carbide, and reactive gases. By forming a protective layer over the graphite base, it prevents direct contact between the melt and graphite, stopping unwanted reactions and helping keep the crystal pure. Even in oxidizing or nitrogen-rich atmospheres, TaC holds up, reducing the risk of contamination. Sublimation is also minimized because TaC's strong bonds and high melting point slow down the evaporation of graphite, preserving the crucible's shape and thickness over repeated heating cycles. This extends the crucible's life and maintains a stable growth environment. In practice, manufacturers growing silicon carbide or gallium nitride crystals see fewer defects with TaC-coated crucibles, producing crystals with more uniform structure, fewer inclusions, and better electrical properties, while the crucibles last longer. Essentially, the TaC layer acts as a tough shield, allowing furnaces to operate hotter and longer without compromising the quality of the material inside.

Applications in SiC and compound semiconductor growth

Tantalum carbide, or TaC, coated crucibles are widely used in growing silicon carbide and other compound semiconductors because these processes involve extremely harsh conditions. SiC crystals are often grown at temperatures above 2,000°C using chemical vapor deposition or sublimation, so the crucible must withstand intense heat, resist chemical attack from reactive gases like argon, nitrogen, or silicon vapor, and maintain its shape over long growth periods. TaC coatings provide all of these benefits, making them a common choice in modern SiC crystal production. Other compound semiconductors, such as gallium nitride and gallium arsenide, also benefit from TaC-coated crucibles, as even tiny impurities can reduce electrical performance or create structural defects. The coating acts as a chemically inert barrier, preventing unwanted reactions between the melt or gases and the graphite crucible, which helps keep crystals pure. In practice, manufacturers growing large SiC boules often see uncoated graphite crucibles warp or develop pits after a few cycles, causing yield loss. TaC-coated crucibles, by contrast, survive multiple growth cycles without significant degradation, maintaining a stable thermal environment and supporting uniform crystal growth. This improves yield, reduces downtime and maintenance, and ensures cleaner surfaces for high-performance devices used in power electronics, LEDs, and high-frequency applications.

Impact on crystal purity and process repeatability

In semiconductor crystal growth, purity and consistency are critical because even tiny amounts of contamination can create defects that affect a crystal's electrical and mechanical properties. Crucibles play a major role in this, as any reaction between the crucible material and the melt can introduce impurities. Coating crucibles with tantalum carbide, or TaC, addresses this by forming a stable, inert barrier between the graphite base and the material forming the crystal. With the TaC layer, the risk of carbon contamination or reactions with reactive gases is greatly reduced, producing cleaner crystals with more uniform properties. For instance, SiC crystals grown in TaC-coated crucibles tend to have fewer inclusions and more consistent electrical resistivity across the boule, which is essential for power semiconductor devices where even small defects can cause early failure. TaC coatings also improve process repeatability. Standard graphite crucibles can degrade or warp after multiple heating cycles, causing temperature fluctuations and inconsistent growth conditions, but TaC slows this wear, helping the crucible maintain its shape and thermal performance over many runs. In practice, manufacturers report that switching to TaC-coated crucibles reduces scrap rates, lowers aborted growth cycles, and makes production schedules more predictable. Overall, TaC-coated crucibles help produce cleaner, more reliable crystals with fewer defects, supporting consistent, high-quality semiconductor manufacturing.
