SiC vs. TaC Coating: Choosing the Right Shield for Extreme Semiconductor Environment

In modern semiconductor manufacturing, epitaxial growth processes operate under extremely harsh environments — temperatures exceeding 1500 °C, reactive gases such as hydrogen and chlorinated precursors, and strict purity requirements at the atomic level.

To ensure stable crystal growth and prevent contamination, critical reactor components must be protected by advanced coatings capable of withstanding these conditions.

Among the most widely used protective coatings are Chemical Vapor Deposition (CVD) Silicon Carbide (SiC) and Chemical Vapor Deposition (CVD) Tantalum Carbide (TaC). Both materials serve as high-performance barriers for graphite components, improving corrosion resistance, thermal stability, and service life in epitaxial reactors.

However, despite their similar roles, SiC and TaC coatings differ significantly in material properties, temperature limits, and application scenarios. Understanding these differences is essential when selecting the optimal coating for semiconductor epitaxy systems.

Ⅰ. What is CVD SiC Coating?

CVD Silicon Carbide (SiC) coating is a dense ceramic layer deposited onto graphite or other substrates through a chemical vapor deposition process, typically using methyltrichlorosilane (MTS) or silane-based precursors at high temperature.

The resulting coating forms a high-purity, tightly bonded protective layer that shields the substrate from chemical attack, oxidation, and particle generation.

SiC coatings are widely used in semiconductor epitaxy, LED growth, and power device fabrication equipment.

Key Properties of CVD SiC Coating

Property ranges refer to《data from ASM International Materials Database》 and 《SiC materials engineering references》

Advantages of SiC Coating

Key advantages include:

● Excellent corrosion resistance

● High thermal conductivity

● Low particle generation

● High purity suitable for semiconductor processing

Because of these properties, SiC coating has become the standard protective layer for many graphite components in epitaxial reactors.

Ⅱ. What is CVD TaC Coating?

CVD Tantalum Carbide (TaC) coating is a refractory carbide coating deposited via chemical vapor deposition, typically using tantalum chloride (TaCl₅) and hydrocarbon gases as precursors.

TaC is known for its extremely high melting point and superior chemical stability, making it one of the most heat-resistant ceramic materials available.

Key Properties of CVD TaC Coating

Data refers to《CRC Handbook of Chemistry and Physics》 and refractory carbide research publications.

Advantages of TaC Coating

TaC coatings provide several unique benefits:

● Ultra-high temperature resistance

● Outstanding corrosion resistance in aggressive environments

● Excellent structural stability at extreme temperatures

These characteristics make TaC coatings ideal for the most demanding epitaxial environments.

Ⅲ. Applications of SiC and TaC Coatings in Semiconductor Epitaxy

Both coatings are primarily used to protect graphite components inside epitaxial reactors, but their application focus differs depending on process conditions.

Typical Applications of CVD SiC Coating

SiC coatings are widely used in Si, GaN, and LED epitaxial reactors due to their excellent balance of thermal conductivity and chemical resistance.

Common SiC-coated components include:

1. Susceptors

Susceptors support wafers and ensure uniform heat distribution during epitaxial growth. Examples:

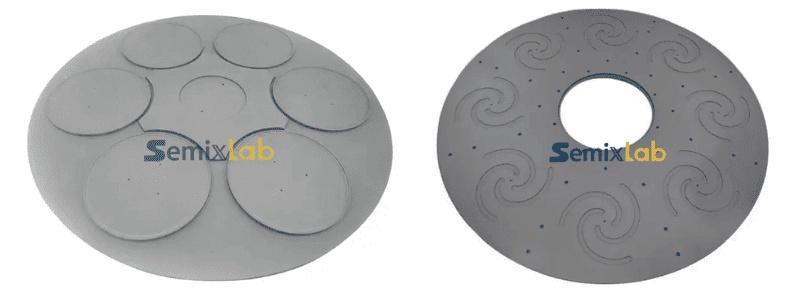

● MOCVD wafer susceptors

● Planetary susceptors for GaN LED growth

● ALD or CVD heating plates

2. Wafer Carriers

Used to hold wafers during high-temperature processing. Examples:

● LED wafer carriers

● SiC power device wafer holders

3. Gas Flow Components

SiC coating protects components exposed to reactive gases. Examples:

● Showerheads

● Gas distribution plates

● Process liners

Typical Applications of CVD TaC Coating

TaC coatings are generally used in more extreme epitaxial environments, especially where temperatures exceed the stability range of SiC.

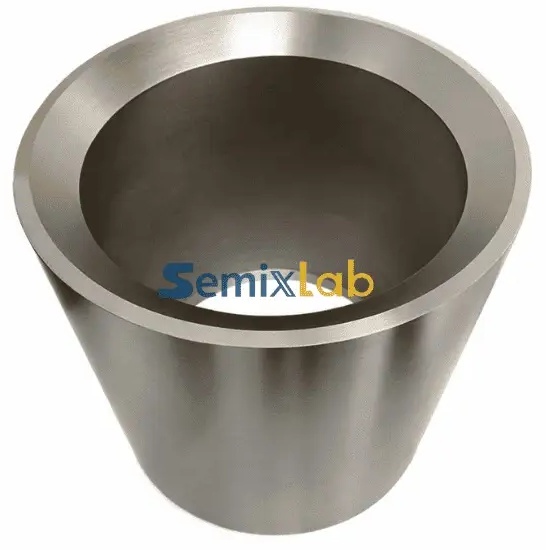

1. SiC Crystal Growth Components

TaC coatings are frequently used in SiC single crystal growth furnaces. Examples:

● Crucibles

● Seed holders

● Thermal shields

TaC-coated graphite is widely used in physical vapor transport (PVT) growth of SiC crystals due to its resistance to high temperature and sublimation environments. (Source: Research literature on SiC bulk crystal growth technology.)

2. Ultra-High-Temperature Reactor Components

TaC coatings protect components exposed to extremely high temperatures or corrosive vapor species. Examples:

● High-temperature susceptor shields

● Thermal insulation components

● Crystal growth crucible liners
