How to Select High-Purity Quartz Crucibles? Comprehensive Analysis on Key Consumables & Yield Enhancement in CZ Monocrystalline Silicon Growth

In modern semiconductor and photovoltaic manufacturing, the quality of monocrystalline silicon wafers is not solely determined by raw polysilicon materials ; it depends even more heavily on the container in direct contact with molten silicon under high-temperature and high-vacuum growth environments—the High-Purity Quartz Crucible.

As a core consumable thermal field component in Czochralski (CZ) monocrystalline silicon growth, a quartz crucible must continuously operate in highly corrosive molten silicon at temperatures exceeding 1,420°C for 200 to over 300 hours. During this period, the chemical purity, bubble distribution, thermal stability, and structural uniformity of the quartz crucible directly dictate the dislocation rate, minority carrier lifetime of silicon single crystals, and subsequent semiconductor/photovoltaic wafer yields.

Leveraging over 20 years of semiconductor material R&D expertise from its parent company, Zhejiang Liufang Semiconductor Technology Co., Ltd., SEMIXLAB has established a precision manufacturing system covering a full specification range of high-purity quartz crucibles from 28 to 36 inches (and customizable up to 42 inches). These products comprehensively serve 300mm semiconductor wafer fabrication as well as N-type TOPCon and HJT high-efficiency solar wafer production.

1. Why Are High-Purity Quartz Crucibles the Yield Lifeline of CZ Silicon Growth?

★ Core Insight: A quartz crucible is not merely a physical container for molten silicon, but a dynamic chemical reactor operating continuously at 1,420°C. Minor fluctuations in its purity or micro-structure directly transmit to the silicon ingot, leading to reduced crystal yield and severe wafer yield losses.

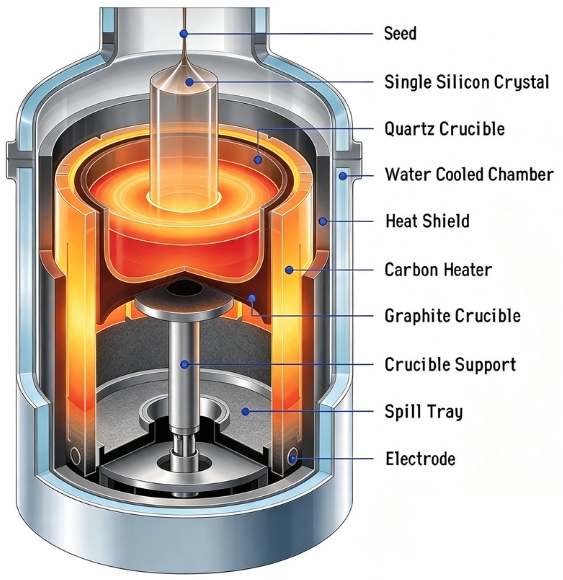

During the CZ crystal pulling process, polysilicon melts inside the quartz crucible, and a seed crystal is dipped into the melt and pulled upward while rotating to grow a single crystal ingot. Throughout this process, slight dissolution occurs on the inner wall of the crucible (SiO₂ + Si → 2SiO↑), causing trace metal impurities and micro-bubbles contained in the crucible matrix to be continuously released into the silicon melt.

2. Dual-Layer Structural Design: Functional Synergy of Inner & Outer Layers

★ Core Insight: Modern high-end quartz crucibles utilize a dual-layer composite structure consisting of an ultra-pure bubble-free inner transparent layer and a micro-porous outer opaque layer with high bubble density. This perfectly resolves the dual contradiction between 'ultra-high purity at the contact interface' and 'overall thermal field uniformity'.

During actual crystal pulling, if the transparent layer is too thin (< 3 mm), it is prone to being eroded through during hundreds of hours of melt dissolution. This causes bubbles and impurities from the outer layer to rush into the silicon melt. SEMIXLAB semiconductor-grade crucibles strictly maintain an inner transparent layer thickness of ≥ 5 mm (up to 10–12 mm upon request), ensuring that the corrosion front remains entirely within the ultra-clean transparent layer across extra-long pulling cycles.

3. Core Parameters & Material Metrics Dictating Quartz Crucible Performance

★ Core Insight: Controlling ppm-level and even ppb-level transition metals and alkali metals is key to enhancing wafer minority carrier lifetime; meanwhile, managing high-temperature fluid inclusions and devitrification resistance forms the cornerstone of long-cycle pulling stability.

3.1 Ultra-Low Trace Metal Impurity Control Standards

Transition metals (e.g., Fe, Cu, Ni) directly degrade device breakdown voltage, while alkali metals (Na, K, Li) act as primary catalysts for abnormal devitrification of quartz glass at high temperatures. SEMIXLAB sets strict impurity limits for inner-layer quartz materials via ICP-MS and GDMS testing:

3.2 Control of Bubbles and Fluid Inclusions

Micron-scale gas-liquid inclusions naturally present in raw quartz ore build up extremely high internal pressures at temperatures above 1,400°C. SEMIXLAB utilizes high-temperature vacuum degassing and advanced electric arc fusing techniques during melting, reducing the density of bubbles with diameter > 50 μm in the transparent layer to near-zero, effectively preventing particle contamination in the silicon melt during crystal growth.

4. Semiconductor-Grade vs. Photovoltaic-Grade Quartz Crucibles: Selection Comparison

★ Core Insight: Semiconductor-grade crucibles pursue 'zero defects and ultimate purity', while photovoltaic-grade crucibles focus on 'ultra-long continuous recharge (CCZ) lifespan and cost efficiency'. The two differ fundamentally in raw material selection, processing technology, and quality inspection.

5. Common Failure Mechanisms of Quartz Crucibles & Mitigation Strategies

★ Core Insight: Devitrification and high-temperature deformation are the main culprits behind CZ crystal growth interruptions. Through micro-alloying with aluminum doping and specialized coating technology , high-temperature creep resistance can be significantly improved.

5.1 Devitrification

Quartz glass (amorphous SiO₂) tends to transform into a crystalline cristobalite structure at elevated temperatures.

· Hazards: The thermal expansion coefficient of the crystallized layer differs drastically from that of quartz glass. During cooling or thermal perturbation, micro-cracks and particle peeling readily occur, entering the silicon melt and causing crystal dislocation breakdown.

· Triggers: Alkali metal (Na, K) contamination or cleaning chemical residues.

· SEMIXLAB Solution: Incorporates precise micro-doping ratio control and forms a dense, defect-free pure protective layer on the inner wall. This ensures that crystallization proceeds in an extremely uniform, flat thin-layer fashion (hardened layer), which actually enhances the crucible's erosion resistance.

5.2 High-Temperature Deformation and Sagging

Under heavy loads of hundreds of kilograms of molten silicon and long-term exposure to high temperatures, large-size quartz crucibles are susceptible to inward collapse on the upper wall.

· Hazards: Alters the thermal field on the liquid surface and the argon flow pattern, disrupting the stability of the solid-liquid interface.

· SEMIXLAB Solution: Precisely regulates micro-bubble size and bubble content in the outer opaque layer, enhancing the overall rigidity and high-temperature creep resistance of the outer wall structure.

6. SEMIXLAB Manufacturing Capabilities & Customization Services

★ Core Insight: Standard dimensions are merely the baseline. Full-process control from raw material screening to final delivery, along with rapid customization of non-standard dimensions and thermal field requirements, represent SEMIXLAB's core competitive edge.

6.2 Quality Control System (EEAT Quality Assurance Commitment)

SEMIXLAB enforces full-process traceability management from raw quartz sand sources to finished products:

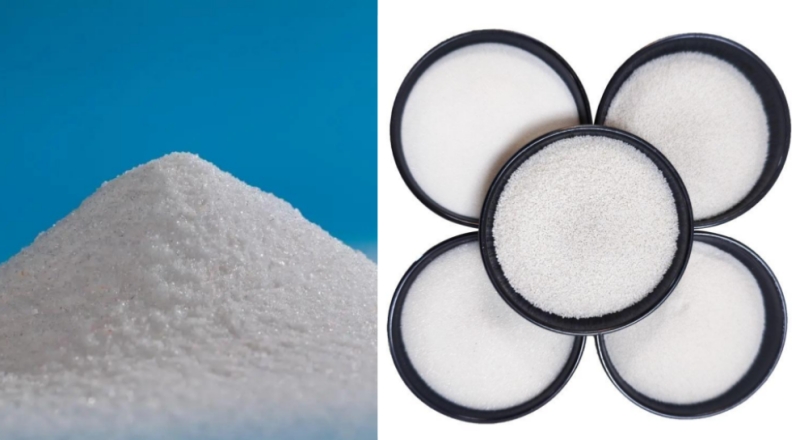

· 1. Incoming Quality Control (IQC): Every batch of raw quartz sand undergoes full 18-element metallic spectrum testing via ICP-MS to guarantee purity meeting 5N5+ standards.

· 2. In-Process Quality Control (IPQC): Automated electric arc fusing systems monitor real-time temperature curves and vacuum levels to ensure perfect interface planarity between the dual layers.

· 3. Final Quality Control (FQC): CMM (Coordinate Measuring Machines) inspect geometric dimensions, while automated laser bubble detectors perform 3D scanning of bubble distribution throughout the transparent layer.

7. Four Scientific Standards for Evaluating Quartz Crucible Suppliers

★ Core Insight: When evaluating quartz crucible suppliers, avoid looking solely at price quotes or isolated 'purity commitments'. It is imperative to comprehensively assess testing transparency, dual-layer structural consistency, and engineering service support.

· 1. Testing Transparency & Data Completeness: Does the supplier provide a complete ICP-MS / GDMS analysis report for each batch? Does bubble testing cover critical areas like crucible bottoms and corner arcs?

· 2. Transparent Layer Control Capability: Is the transparent layer thickness uniform (e.g., tolerance within ±0.5 mm across all points)? Are there dense micro-bubbles at the layer interface?

· 3. Raw Material Supply Chain Control: Does the supplier possess a stable and diversified high-purity quartz sand supply chain capable of mitigating international raw material fluctuations?

· 4. Engineering & Thermal Field Matching Support: Can the supplier optimize crucible geometry and wall thickness distribution based on the customer's furnace thermal field (e.g., MCZ magnetic field pulling)?

8. Frequently Asked Questions (FAQ)

Q1: What is the main composition of high-purity quartz crucibles? Can they be reused?

The primary component of high-purity quartz crucibles is silicon dioxide (SiO₂, purity ≥ 99.999%). Quartz crucibles are single-use consumable items and cannot be reused. Upon completion of a crystal pulling cycle, partial devitrification occurs inside the crucible, and thermal expansion mismatch during cooling and solidification of residual silicon causes the crucible to fracture.

Q2: Why are semiconductor-grade quartz crucibles significantly more expensive than photovoltaic-grade ones?

The price difference stems from three main factors: 1) Higher Raw Material Costs: Semiconductor inner layers require ultra-high purity synthetic quartz sand or top-grade natural sand; 2) Stringent Defect Control: Metallic impurity limits (such as Fe and B) are set at the 0.1 ppm level with near-zero bubble tolerance; 3) Quality Control Costs: Semiconductor products undergo 100% precision scanning and SEM/ICP-MS inspection.

Q3: How is the 'bubble content / bubble ratio' in a quartz crucible measured?

SEMIXLAB utilizes an automated Laser Optical Inspection system to perform non-destructive 3D imaging of the crucible transparent layer. This enables precise calculation of bubble quantity and volume ratio across different depths (e.g., 0–1 mm, 1–3 mm, 3–5 mm).

Q4: What specific requirements does MCZ (Magnetic Czochralski) technology impose on quartz crucibles?

MCZ technology uses magnetic fields to suppress silicon melt convection, resulting in higher pulling temperatures and longer cycle times. This places extreme demands on high-temperature softening resistance and inner-layer melt erosion resistance. SEMIXLAB's specialized MCZ crucibles feature increased transparent layer thickness and optimized outer micro-porous structures to ensure long-term thermal stability.

Q5: What are the lead times and Minimum Order Quantities (MOQ) for standard stock vs. customized crucibles?

SEMIXLAB maintains standard inventory for 28", 32", and 36" semiconductor and PV grade crucibles for rapid dispatch and customer validation. For non-standard dimensions or custom wall thicknesses, we support small-batch R&D-level MOQs, with typical lead times of 2 to 4 weeks.

9. Summary

★ Core Insight: In the CZ monocrystalline silicon growth process, high-purity quartz crucibles serve as critical thermal field consumables whose quality directly correlates with wafer yield, crystal formation rate, and overall manufacturing costs.

· Grade & Purity Selection: Semiconductor applications focus on ultra-low impurities (Fe/Na/K/B) and zero-bubble transparent layers; PV applications emphasize long-lifespan sagging resistance and cost efficiency.

· Structural Assurance: A high-purity transparent inner layer of ≥ 5 mm is the core barrier preventing impurity dissolution and bubble release.

· Supplier Evaluation: Look holistically at testing transparency, dual-layer uniformity, and custom engineering matching rather than headline price alone.

About SEMIXLAB

SEMIXLAB (a brand under Zhejiang Liufang Semiconductor Technology Co., Ltd.) specializes in the R&D and manufacturing of high-purity quartz and advanced ceramic materials for semiconductor and photovoltaic applications. All technical parameters listed in this article are empirically verified using ICP-MS, GDMS, and CMM optical measurement equipment.

For product specifications, sample testing, or custom thermal field solutions, please contact the SEMIXLAB engineering team.

Technical Reference Standards:

1. SEMI C19 — Specification for High Purity Quartz Materials

2. JC/T 1048-2018 — Quartz Crucible for Monocrystalline Silicon Growth Industry Standard

3. ISO 13320 — Particle Size Analysis - Laser Diffraction Methods
