PVT Silicon Carbide Crystal Growth: Advanced Thermal Field Materials for High-Yield SiC Crystal Manufacturing

As the global power semiconductor industry accelerates the adoption of silicon carbide (SiC) devices for applications in electric vehicles, renewable energy systems, and high-voltage industrial sectors, the demand for larger-diameter, low-defect SiC substrates continues to grow. PVT silicon carbide crystal growth technology is at the heart of this manufacturing revolution and is the mainstream technique for producing high-quality 4H-SiC single crystals for next-generation power electronic devices.

Major Challenges Facing Modern PVT Silicon Carbide Crystal Growth Systems

Despite decades of development, PVT silicon carbide crystal growth remains one of the most challenging processes in semiconductor manufacturing. Crystal growth takes place in a sealed, high-temperature environment exceeding 2000°C, where silicon carbide source materials sublimate and recondense onto seed crystals under precisely controlled temperature gradients. In such extreme conditions, even minor fluctuations in temperature distribution, vapor transport kinetics, or material purity can significantly affect crystal morphology, polymorph stability, and defect formation.

One of the greatest challenges in PVT SiC crystal growth is the long-term stability of the thermal field. Traditional graphite components are continuously exposed to highly reactive silicon-containing vapors, such as Si, Si₂C, and SiC₂. During extended operation, these vapors interact with the graphite surface, leading to gradual material erosion, dimensional changes, and distortion of the designed temperature distribution. As the geometry of the thermal zone changes, it becomes increasingly difficult to control the supersaturated conditions above the growth interface, which typically leads to unstable crystal growth, reduced growth rates, and increased defect density.

Material purity is also a key limiting factor. Trace amounts of nitrogen, boron, aluminum, titanium, and other metallic impurities present in traditional thermal field materials diffuse into the vapor phase during high-temperature operation. Once these impurities enter the growing crystal, they alter the carrier concentration, resistivity, and compensation behavior within the 4H-SiC lattice. More importantly, impurity-driven nucleation events accelerate the formation of microtubes, basal plane dislocations (BPDs), screw-type dislocations (TSDs), and other structural defects, which directly impact wafer yield and the reliability of downstream devices.

As silicon carbide (SiC) manufacturers transition from 6-inch wafer production to 8-inch wafer production, the requirements for thermal field stability have also increased significantly. Larger crystal diameters require longer growth cycles, stricter radial temperature uniformity, and better control of thermal stress. Traditional graphite-based thermal field systems often struggle to maintain the stability required for large-diameter crystal growth, resulting in higher operating costs and lower manufacturing efficiency.

Advanced Thermal Field Materials for PVT Silicon Carbide Crystal Growth

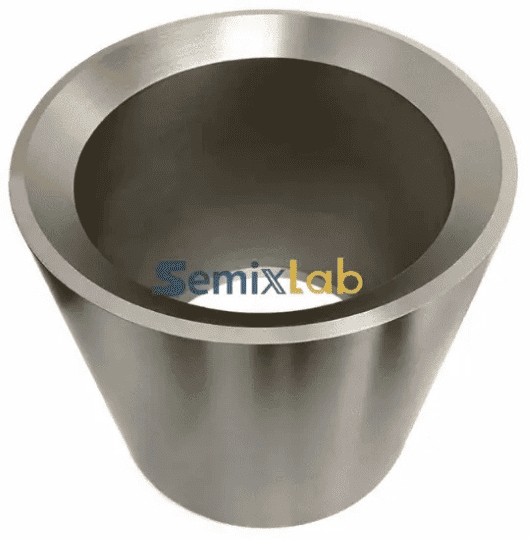

1. CVD TaC Coatings for Extreme Temperature Stability

To address these challenges, advanced thermal field engineering has become a key driver in modern PVT silicon carbide crystal growth. One of the most effective advancements in this area is the introduction of chemical vapor deposition (CVD) tantalum carbide (TaC) coatings. With a melting point of nearly 3880°C and excellent resistance to silicon-rich vapor environments, TaC serves as an effective diffusion barrier between reactive process gases and graphite substrates. TaC coatings prevent graphite consumption and maintain geometric stability during extended growth periods, thereby helping to preserve thermal field symmetry and supporting more stable crystal growth kinetics.

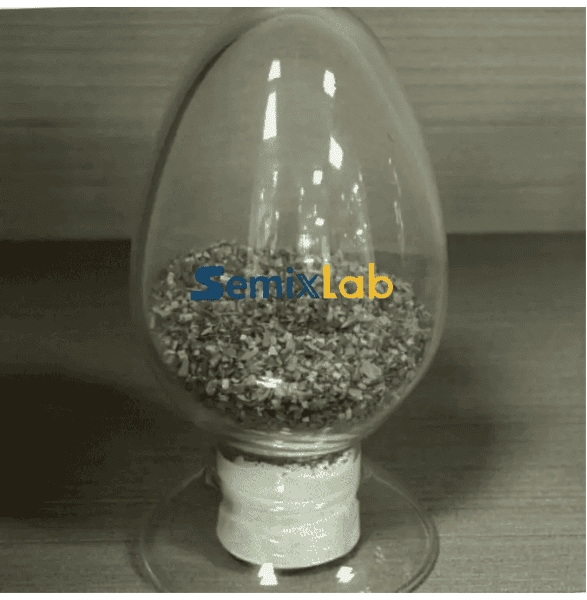

2. High-Purity 7N Silicon Carbide Feedstock for Defect Reduction

Another key advancement is the use of ultra-high-purity SiC source material prepared via chemical vapor deposition (CVD). Compared to traditional Acheson-process feedstock, CVD-prepared SiC powder contains significantly lower levels of nitrogen and metal impurities. With a purity as high as 7N (99.99999%), this material enables more precise control of vapor composition during sublimation, reducing the likelihood of impurity incorporation while enhancing crystal quality and electrical performance. This high-purity raw material is increasingly recognized as a fundamental requirement for producing low-defect substrates used in high-voltage and automotive-grade SiC devices.

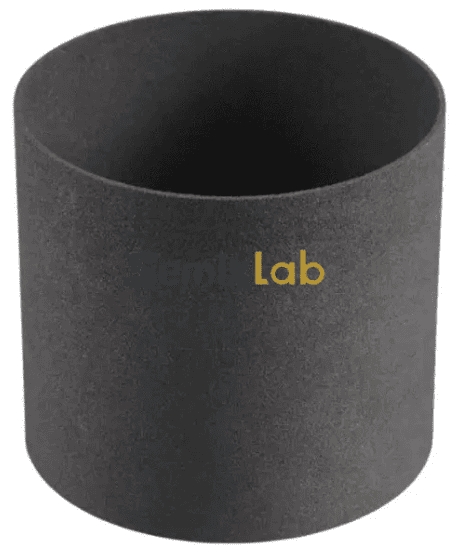

3. Engineered Microporous Graphite Structures

Thermal field optimization is further enhanced by a carefully engineered microporous graphite structure designed to regulate heat and gas transfer within the crucible environment. By precisely controlling porosity distribution and thermal conductivity, these components help create a more uniform temperature gradient and reduce convective disturbances. As a result, large-diameter silicon carbide ingots exhibit more stable growth interfaces, lower thermal stress accumulation, and improved structural integrity.

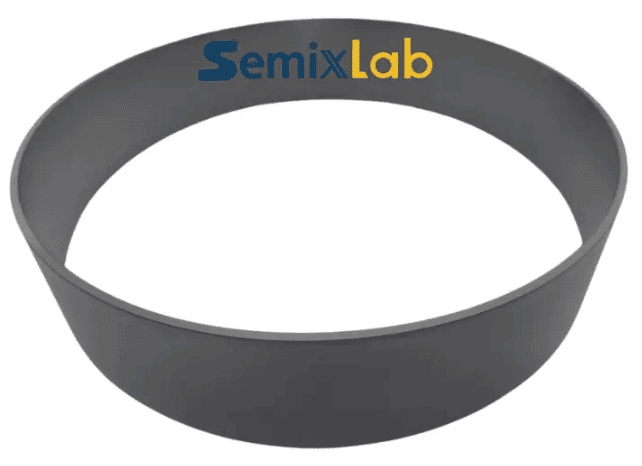

4. Pyrolytic Carbon (PYC) Protective Layer

Complementing these technologies, a dense pyrolytic carbon (PYC) coating further prevents particle formation and gas absorption. Its highly ordered carbon structure forms a pore-free surface, minimizing sources of contamination within the growth chamber while enhancing the component’s durability during repeated thermal cycling. This directly contributes to reducing defect formation rates and improving process repeatability.

Quantifiable Improvements in Silicon Carbide Crystal Growth Performance

The combined effect of these advanced material technologies has led to measurable improvements in key manufacturing metrics. The optimized thermal field system has been proven to increase crystal growth rates by 15–20%, maintain wafer yield stability above 90%, extend maintenance intervals from 3 to 6 months, and reduce operating costs by nearly 40%. More importantly, these improvements enable defect densities below 0.05 defects/cm², thereby enabling the production of high-performance substrates suitable for demanding automotive and industrial power semiconductor applications.

As global demand for silicon carbide devices continues to grow, the competitive advantage of SiC substrate manufacturers increasingly depends on their ability to control crystal quality, maximize reactor utilization, and reduce manufacturing variability. Against this backdrop, advanced thermal field materials—including TaC-coated graphite components, ultra-high-purity SiC feedstock, engineered graphite structures, and pyrolytic carbon protective layers—have become key technologies for the growth of next-generation PVT silicon carbide crystals.

Looking ahead, continued innovation in thermal field engineering will play a decisive role in achieving larger wafer sizes, higher production capacity, and lower defect densities. For manufacturers committed to scalable and cost-effective SiC wafer production, optimizing the thermal field is no longer a secondary consideration but a strategic requirement for maintaining long-term competitiveness in the rapidly growing wide-bandgap semiconductor market.

FAQs About PVT Silicon Carbide Crystal Growth

1. What is PVT Silicon Carbide Crystal Growth, and why is it the preferred method for producing SiC substrates?

Physical Vapor Transport (PVT) is currently the most widely adopted bulk crystal growth technology for manufacturing high-quality silicon carbide substrates. In this process, high-purity SiC source material is sublimated at temperatures typically exceeding 2000°C and transported through a controlled vapor phase before re-condensing onto a seed crystal.

Compared with alternative crystal growth methods, PVT offers superior scalability for producing large-diameter 4H-SiC crystals while maintaining acceptable crystal quality and production economics. As the industry transitions toward 200 mm (8-inch) wafers, continuous improvements in PVT thermal field design, vapor transport control, and material purity remain essential for achieving high-yield industrial production.

2. What challenges arise when transitioning from 6-inch to 8-inch SiC wafer production?

The transition from 150 mm (6-inch) to 200 mm (8-inch) SiC wafers represents one of the most important developments in the wide-bandgap semiconductor industry. However, larger crystal diameters introduce substantial technical challenges.

The thermal mass of the crystal increases significantly, requiring longer growth durations and much tighter control over radial temperature gradients. Small thermal asymmetries that may be acceptable in smaller crystals can become major sources of stress, cracking, and defect propagation in larger boules.

Consequently, 8-inch SiC manufacturing demands more sophisticated thermal field materials, improved insulation structures, advanced coatings, and highly optimized furnace designs to maintain process stability throughout extended growth cycles.

3. How does TaC coating improve PVT Silicon Carbide Crystal Growth performance?

Tantalum carbide (TaC) is one of the most chemically stable ultra-high-temperature ceramic materials available for PVT growth environments. With a melting point approaching 3880°C, TaC coatings provide excellent resistance against silicon-rich vapor species generated during SiC sublimation.

When applied to graphite components through Chemical Vapor Deposition (CVD), TaC acts as a diffusion barrier that prevents chemical erosion, minimizes particle generation, and preserves the original geometry of thermal field structures.

Maintaining dimensional stability throughout long growth cycles helps stabilize vapor transport conditions and thermal gradients, which directly contributes to improved crystal growth consistency and lower defect generation rates.
