Introduction: During the epitaxial growth of third-generation semiconductors (GaN/SiC), the temperature stability of the MOCVD process directly determines the yield of epitaxial wafers. However, many engineers are facing challenges such as frequent cracking of quartz shields, thermal deformation of shutters, and contamination from metallic impurities. This article combines VeTek Semiconductor’s empirical data with research findings from authoritative domestic journals such as the Journal of Artificial Crystals to provide you with scientifically grounded solutions to these failures.
I. Why Do Your Quartz Components Underperform at High Temperatures?
Field Diagnosis: Why Your Quartz is Flaking Out
Pain Point 1: Frequent Shield Cracking. Is it just the ramp rate?
The Reality Check: Traditional clear quartz looks great, but it’s a thermal nightmare in MOCVD. Because it’s transparent to IR radiation, heat shoots straight through, hitting the metal base and creating a massive thermal gradient. Our Fix: VeTek’s Fused Opaque Quartz is built via an electric fusion process that traps a galaxy of microbubbles inside.
The Result: These bubbles act like microscopic mirrors, scattering heat (Mie Scattering) and homogenizing the radiation. Our data shows this drops local thermal stress by 20% to 30%. Essentially, your shield stops fighting itself, which stops the cracking.
II. How can physical deformation of quartz shutters be prevented in processes above 1100°C?
Pain Point 2: Shutter Jamming at 1100°C+
The Reality Check: MOCVD shutters need to be precise. If you get even 0.1mm of creep (thermal softening), you’re looking at a mechanical jam or a vacuum leak. The Secret Sauce: It’s all about the OH (Hydroxyl) content. We’ve pushed our OH levels below 5ppm.
The Result: Low OH means higher viscosity. Even at 1200°C, VeTek shutters stay rigid. Combined with an ultra-low expansion coefficient (0.45 x 10⁻⁶/°C), you get a shutter that actually moves when it's supposed to, every single time.
III. Core Specs: No Fluff, Just Facts
Engineers need data, not marketing slogans. Here’s how our team stacks up against the "standard" expectations:
| Physical Property | Our Official Data | Academic/Industry Standard Reference | Practical Value for Processes |
| Purity - Total Metals | < 15 ppm | < 20 ppm (Semiconductor Grade) | Prevents Fe/Cu/Li ion diffusion into the epitaxial layer |
| OH Content | < 5 ppm | < 10 ppm (Low-OH Grade) | Improves viscosity, prevents creep above 1100°C |
| Coefficient of Linear Expansion | 0.45 (10⁻⁶/℃) | 0.4 - 0.5 (10⁻⁶/℃) | Extremely high dimensional stability, prevents shutter jamming |
| Thermal Conductivity (20°C) | 1.39 W/m`k | 1.3 - 1.5 W/m`k | Excellent thermal insulation, protecting precision components |
Ⅳ. Protecting Your Yield from the Source
In the world of GaN, Na and K ions are "yield killers." If your opaque quartz has open pores, it's
just a sponge for impurities.
We’ve refined our SOP to stop this:
● High-Purity Electric Fusion: We start with ultra-pure natural sand to keep metals < 15ppm from Day 1.
● Surface Flame Polishing (The Game Changer): * How it works: We use high-temp flames to "seal" every open pore on the surface.
The Value: This creates a dense, glass-phase protective layer. When you clean your parts, acid can't seep into the bubbles. This eliminates secondary contamination and drastically extends the part's cleaning life.
V. Supply Chain: Why Our team is the Practical Choice
As we discussed at the recent global trade summits, the industry is shifting. It’s no longer just about "Made in China"; it’s about "Engineered in China." If you’re looking for a serious alternative to Momentive or Heraeus, consider this:As we discussed at the recent global trade summits, the industry is shifting. It’s no longer just about "Made in China"; it’s about "Engineered in China." If you’re looking for a serious alternative to Momentive or Heraeus, consider this:

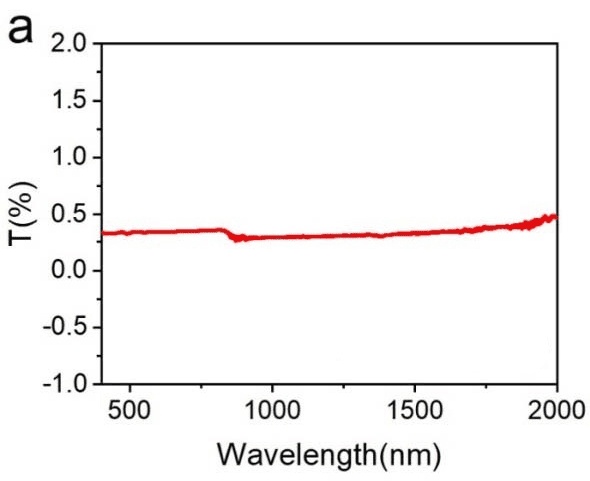

Figure a.Transmittance of fused opaque quartz

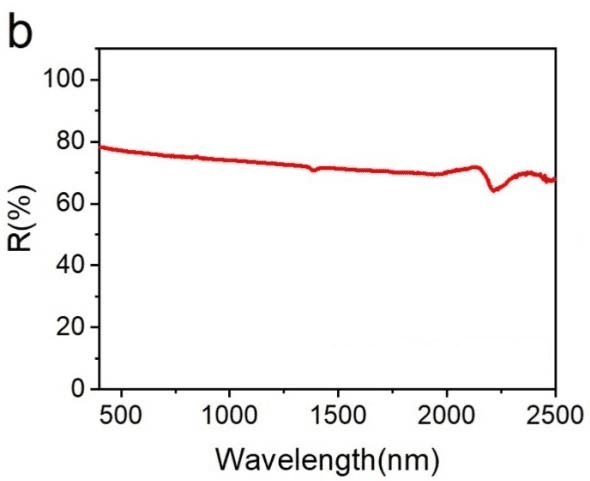

Figure b. Reflectivity of fused opaque quartz
● Full-Element GDMS: We don't hide our data. Every batch comes with a GDMS mass analysis report. Full transparency.
● Complex Machining: Whether it’s a tricky MOCVD shutter or a slotted shield, we keep tolerances within ±0.1 mm.
● Field Validated: Our components are already running in mass production on Aixtron and other Tier-1 platforms worldwide. We aren't testing on you; we’re delivering for you.
Ⅵ. Summary and Recommendations Expert Conclusion
Selecting low-transmittance opaque fused quartz is not only for “thermal insulation” but also to enhance chip electrical performance through precise thermal field control.
