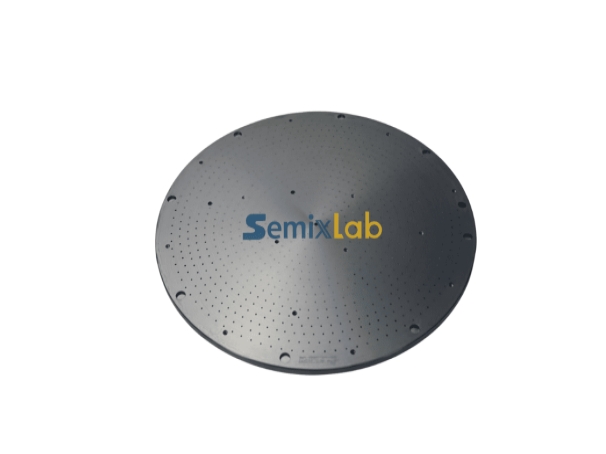

How Solid SiC Gas Shower Heads Enhance Epitaxial Process Control？

The uses of the epitaxy growth gases has become increasingly important to forming layers of high quality. In the epitaxy growth reactors, a gas shower-head is located at the top of the reactor, and is responsible for the distribution of the precursors to the gas epitaxy growth layers. An unstable or uneven flow can lead to thinning of epitaxial layers, the introduction of defects and particles, and ultimately the compromise of the devices functionality. Solid Sic coating improvements in gas shower-heads has improved flow stability for those high temperature and gas corrosive environments, so engineers can more easily achieve uniform growth of layers across the entire wafer.

Role of gas shower heads in epitaxy and CVD reactors

Gas shower-heads are vital for depositing layers of materials onto wafers in epitaxy or chemical vapor deposition (CVD) reactors. It is more applicable to think of a system of gas shower-heads for CVD or epitaxy reactors more as a system of gas sprinklers. The system of gas shower-heads operates to evenly distribute the precursor materials to the surfaces of the wafers. The more evenly the precursor materials are distributed the more uniformly the layers of materials can be deposited. Another critical issue is to ensure the precursor materials are evenly distributed so that no planar area of the surface of the wafers experiences a slower growth rate so that the end goal of achieving a more uniform thickness of the layers is accomplished. In SiC epitaxy, uniformity of the deposited layers is critical when fabricating high-performance devices, including power electronics and light-emitting diodes (LEDs). The shower head assists in flow direction and speed of gas streams. Effective control of gas streams reduces turbulence and avoids unnecessary reactions at the wafer surface. This leads to better epitaxial layer quality and reduces the particulate contamination commonly found in CVD processes at elevated temperatures. Another important consideration is being able to withstand high temperatures. In SiC, gas shower heads must withstand extreme temperatures throughout their lifespan without deformation or oxidation. Solid SiC shower heads are able to withstand harsh conditions and maintain their shape and effectiveness over time. This reduces the frequency of replacements needed and increases process deposition stability.

Advantages of solid SiC over coated graphite designs

In many SiC epitaxy reactor designs, shower heads used to be made of graphite with metal protective coatings (typically silicon carbide). While these coated heads did the job for a while, fully Solid SiC shower heads have clear and numerous economic advantages in the long term. The main benefit of Solid SiC is the loss of corrosion and chemical attack. The processes have very aggressive gases that include silane, propane, and hydrogen. Coated graphite shower heads deteriorate, and the mechanically exposed graphite can lead to contamination of the wafers. Solid SiC fully withstands the aggressive environments of CVD, enabling the use of more aggressive gases while keeping the growth chambers cleaner and reducing defects. Additionally, Solid SiC is more stable in shear and can withstand much greater mechanical and thermal stress than graphite. Coated graphite shower heads will warp and crack in thermal cycling and cascade thermal shocks. This is detrimental because the shower head's shape defines the velocity and flow profile of the reactor which determines the uniformity of the layers. Solid SiC head will retain its shape allowing uniform gas distribution as a result. The elimination of a thin, molten coat also reduces dust and flake contamination. Large wafers are particularly sensitive to this contamination and in many cases the presence of a single particle will cause a complete failure of several devices.

Gas flow uniformity and precursor distribution

The epitaxy of SiC entails supplying gases to the wafer evenly; otherwise, the layers formed will be of undesirable quality. Precursor gases, such as propane and silane, must be evenly and consistently supplied to the surface of the wafer. If they do not flow evenly, certain portions will be too thick, while other portions will be too thin, causing a defect in the layer which will compromise the electrical characteristics of the wafers, and subsequently, their profitability. The reason solid SiC shower heads is because they retain a uniform flow of gas, which is critical to the process. Coated graphite shower heads, on the other hand, can develop inconsistencies, such as warping, rough spots, and clogging; and thus, coated graphite shower heads cannot be relied upon. Engineers can rely on the stability of solid SiC shower heads and along with it, fine-tune optimization, without the fear of the equipment causing any undesirable changes.

The design of showerheads, and how precursor gases are mixed and delivered to the wafers, are significant factors to consider. Ideally, showerheads should create laminar flow to reduce turbulence so that undesirable responses occur before gas reaches the wafers. Controlled flow means that the entire wafer will receive the same precursor concentration. This enables uniform precursor deposition and even smoother surface to the wafer and fewer imperfections.

Thermal and chemical durability in harsh environments

Under the harsh reaction conditions of SiC epitaxy, which frequently exceed 1500°C and utilize reactive gases such as silane, hydrogen, and propane, the gas shower head must withstand extreme thermal and chemical conditions. Most materials will break down or influence the SiC epitaxy reaction. The gas shower head is at the centre of the reaction and must survive this harshness. Solid SiC copes with thermal shock by high melting point and thermal stability. Coated graphite may expand or deform more than its coating and create stresses that cause peeling or cracks SiC can also handle rapid changes in temperature without cracking or warping. Small changes in the shape of the shower head can disrupt the regularity of gas flows and throw off the uniformity of the process.

Applications in SiC epitaxy and high-power device fabrication

SiC solid gas shower heads have made an impact on the field of high power and high frequency devices epitaxy. SiC's compatibility with high voltage and high temperature makes it suitable for power electronics for electric vehicles, renewable energy systems, and industrial motor drives. Therefore, high quality epitaxy SiC layers are possible with the help of the solid gas shower head as it delivers stable and uniform gas flow. In the SiC epitaxy of a single reactor, several stacked wafers are used. There is a precursor gas that is uniformly distributed across each wafer. Any inconsistency will lead to thickness, composition, and crystal quality variations which can impede the end device's performance. Solid SiC shower heads are used to produce a gas flow to limit particle contamination and help manufacturers achieve the outstanding wafer quality.
