How Does a SiC Crystal Growth Furnace Impact Power Semiconductor Performance?

The durability and performance of power semiconductors often come down to the quality of the crystal inside. Silicon carbide , or SiC, can handle higher voltages and temperatures than regular silicon, but growing a perfect crystal is challenging. The furnace used in the process is crucial, as even tiny defects or uneven structures can cause a chip to fail under high power. Knowing how a SiC crystal growth furnace works shows that the performance of a semiconductor starts long before the chip is actually made.

Overview of SiC crystal growth methods and furnace design

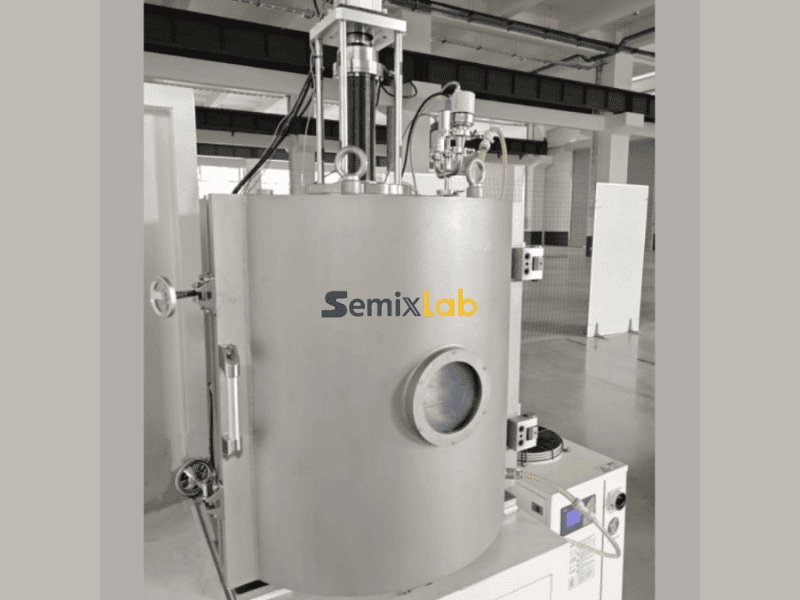

Growing a silicon carbide crystal is a precise and delicate process that involves much more than simply melting material and letting it cool. One common method is physical vapor transport, or PVT, where SiC powder is heated in a high-temperature furnace until it slowly turns into vapor, which then deposits layer by layer onto a seed crystal to form a larger single crystal. Controlling temperature and gas flow is critical because any imbalance can lead to defects like cracks or stacking faults. Another approach is solution growth, in which SiC dissolves in molten metal such as silicon or aluminum and then crystallizes on a seed. While slower, this method can produce very uniform crystals. The design of the furnace itself is equally important. Modern furnaces are typically vacuum or inert-gas systems to prevent contamination and oxidation, and they use graphite or SiC heating elements that reach temperatures above 2,000°C with precise control over the temperature gradient between the source material and the seed crystal. Additional features like insulation layers, cooling zones, and carefully shaped crucibles help manage heat flow, reduce stress inside the crystal, and guide vapor deposition. In practice, a well-designed furnace enables manufacturers to grow larger, cleaner crystals, which leads to power semiconductors that can handle higher voltages, switch faster, and last longer. Small improvements in furnace design can have a noticeable impact on the performance and reliability of the final chips, which is why companies invest significant effort in perfecting every detail of the crystal growth process.

Importance of thermal field control and atmosphere stability

When growing a SiC crystal, controlling the furnace temperature is about much more than just reaching high heat it's about managing how that heat spreads throughout the furnace. The thermal field, or how temperature varies across the chamber, is critical to crystal quality. If one area is too hot or too cold, the crystal can develop stress, cracks, or defects. It's like baking a cake in an uneven oven, except even tiny flaws in a SiC crystal can impact a semiconductor's performance. Furnace designers carefully shape the thermal field using heating elements, insulation, and sometimes cooling zones to create a smooth, predictable temperature gradient from the source material to the seed crystal, allowing atoms to align into a uniform single crystal. The gas or vacuum environment is equally important, as SiC can react with oxygen or impurities at high temperatures. Furnaces often operate in a vacuum or with high-purity inert gases like argon to keep the crystal clean and prevent unwanted chemical reactions. Even small changes in gas flow or pressure can affect growth. In real-world production, managing both temperature and atmosphere is what separates average crystals from top-quality ones. For instance, SiC wafers for electric vehicle power modules need consistent, defect-free crystals. Careful control ensures each run produces crystals strong enough to handle high voltages, fast switching, and the demanding conditions of modern power semiconductors.

Role of furnace materials in reducing contamination

In SiC crystal growth , the materials inside the furnace are just as important as temperature and atmosphere because any contamination can create defects that weaken the final semiconductor. Even tiny particles or traces of metal can affect how electricity flows through a chip, which is critical for high-power applications. Graphite is commonly used for crucibles, heaters, and insulation because it can withstand extremely high temperatures and is relatively inert, meaning it won't easily react with SiC. Some furnaces add coatings of silicon carbide or tantalum carbide to graphite, creating a hard, chemically stable layer that further reduces the risk of carbon dust or metal contamination. Other furnace components, like thermocouple holders, insulation supports, and gas inlets, are made from high-purity ceramics or special alloys to maintain a clean environment. Even small improvements, such as tighter seals, can prevent gas leaks or particles from entering, directly improving crystal quality. Controlling contamination is especially important for power semiconductors that operate at high voltages and temperatures, such as wafers for electric vehicle inverters, where even minor defects can cause early failure. A well-designed furnace using the right materials allows manufacturers to grow large, uniform SiC crystals consistently, reducing waste and improving reliability. Essentially, the furnace is more than a heating device it's a carefully engineered environment where material choices play a crucial role in producing strong, pure, high-performance crystals.

Relationship between crystal quality and device reliability

The quality of a SiC crystal has a direct effect on the reliability of the final semiconductor device. Even tiny imperfections, such as micro-cracks, dislocations, or stacking faults, can create weak points that may seem harmless at first but can cause a chip to fail under high voltage, high temperature, or rapid switching conditions. Power semiconductors are often used in demanding applications like electric vehicles, renewable energy inverters, or industrial motors, where reliability is critical. A chip that fails early can stop a motor, damage other components, or create safety risks, which is why manufacturers focus on crystal quality before even starting wafer production. High-quality crystals also allow devices to operate closer to their theoretical limits. For example, a SiC MOSFET grown from a nearly defect-free crystal can handle higher voltages, switch faster, and produce less heat, improving efficiency and reducing energy loss an important advantage in electric vehicles or solar inverters where efficiency directly impacts performance and cost. Achieving this quality starts in the furnace and continues throughout manufacturing. Engineers carefully monitor crystal growth, inspect wafers, and adjust processes to minimize flaws. Even small improvements in crystal quality can significantly extend device lifetime and reliability. In short, the better the crystal, the stronger and more dependable the semiconductor device, making investment in crystal growth technology essential for high-performance power electronics.
