How Do Isostatic Graphite Sealing Rings Support Stable Semiconductor Manufacturing Processes?

In semiconductor manufacturing, maintaining stable processes is always a challenge because even small changes in temperature, pressure, or chemical exposure can affect wafer quality and yields. Isostatic graphite sealing rings help solve this problem by providing a reliable, high-temperature seal in corrosive environments. They resist wear and deformation, keeping gases, liquids, and vacuum systems in furnaces or reactors contained. This ensures equipment runs smoothly without leaks or interruptions. For engineers and technicians, knowing how these sealing rings work is important for maintaining consistent production and reducing costly downtime.

Sealing requirements in epitaxy, CVD, and diffusion environments

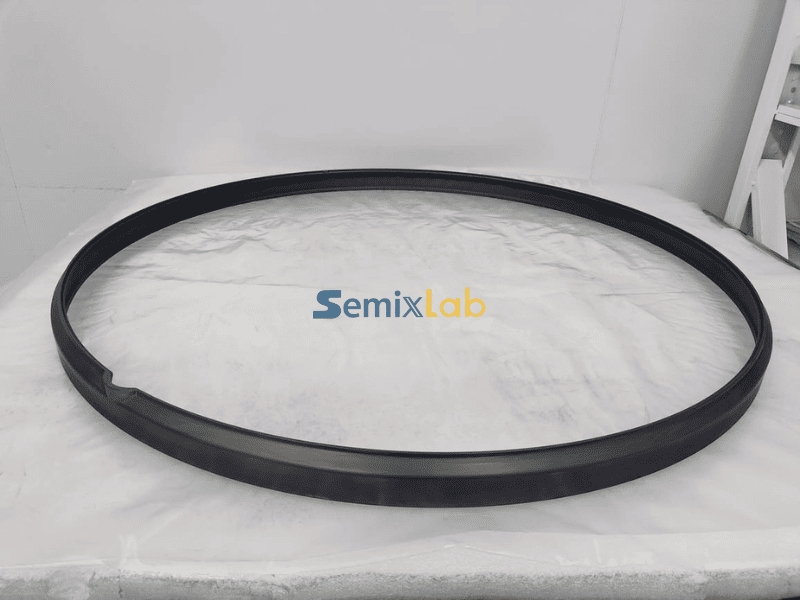

In semiconductor production, different processes place very specific demands on sealing components because ordinary seals can fail quickly under extreme conditions. In epitaxy reactors, for example, wafers are exposed to high temperatures and reactive gases, and even a tiny leak can allow contaminants to enter, ruining the delicate crystalline layers being grown. Sealing rings in this environment must maintain a tight barrier while withstanding thermal cycling and chemical attack. Chemical vapor deposition, or CVD , presents similar challenges but with an added focus on corrosion resistance. The precursor gases used can be highly aggressive, and processes often run under high pressure, so seals that soften or crack can lead to coating defects, unstable processes, or unplanned downtime. Isostatic graphite sealing rings are often chosen for these applications because they maintain their shape, resist chemical wear, and can handle sudden pressure changes without failing. Diffusion furnaces also rely on precise sealing to control gas flow and maintain vacuum integrity, since even minor leaks can alter dopant concentrations in wafers and affect their electrical properties. Graphite rings perform well here because they withstand repeated heating and cooling cycles without deforming, and their uniform density ensures consistent vacuum levels during long production runs. Across epitaxy, CVD, and diffusion processes, the goal is to prevent contamination, maintain stable pressure and gas composition, and reduce maintenance interruptions. Using the right sealing material, like graphite, allows engineers to keep production reliable, protect wafer quality, and avoid costly downtime, and understanding the unique demands of each process helps select the most effective sealing solution.

Advantages of isostatic graphite structure for thermal cycling

Thermal cycling is a major challenge in semiconductor equipment because furnaces and reactors heat up to very high temperatures and then cool down repeatedly during production. Many materials expand, contract, or crack under these conditions, leading to leaks or misalignment. Isostatic graphite handles this stress much better than metals or standard ceramics due to its uniform density and fine grain structure, which makes it less likely to warp or develop weak spots when temperatures change quickly. This structure also spreads stress evenly across the sealing ring, so in furnaces or CVD chambers where heat is rarely uniform, the graphite adapts without losing its seal. That stability keeps gases and vacuum conditions consistent, which is essential for maintaining wafer quality. Graphite rings also maintain their mechanical properties even after hundreds of heating and cooling cycles, preserving shape, density, and sealing performance over time. Its uniform surface helps resist chemical attack, preventing corrosive gases or liquids from causing damage. Because of these properties, isostatic graphite is commonly used in epitaxy, diffusion, and CVD processes where thermal cycling is routine. Technicians find that once properly installed, graphite rings reduce the need for constant monitoring, adjustment, or replacement, allowing them to focus on optimizing processes rather than troubleshooting equipment failures. This combination of thermal resilience, chemical resistance, and durability makes graphite a highly reliable choice for high-temperature semiconductor applications.

Contamination control and particle reduction in advanced nodes

In advanced semiconductor manufacturing, even the smallest particle can ruin a wafer, especially as feature sizes shrink and processes become extremely sensitive to contamination. Sealing components are critical for keeping the environment clean, and graphite sealing rings play a key role in this. Unlike some metals or soft seals, isostatic graphite doesn't flake or generate particles under stress, making it ideal for cleanroom conditions. During processes like CVD, epitaxy, or diffusion, consistent gas flow is essential, and any seal failure or degradation can allow particles from equipment to enter the chamber, potentially causing defects or electrical failures in finished chips. Graphite rings maintain their surface integrity even under repeated thermal cycling and chemical exposure, reducing the risk of shedding or contamination. Another important factor is outgassing. Some materials release gases when heated that can react with process gases and create unwanted byproducts, but isostatic graphite has low outgassing, keeping the chamber atmosphere stable and minimizing defects. Technicians also benefit in routine operation and long-term maintenance, as graphite seals need less frequent replacement, lowering the risk of contamination during service. They provide a consistent seal over many process cycles, keeping gas composition and pressure steady. For fabs working on advanced nodes, selecting the right sealing material is crucial for controlling contamination, protecting wafer quality, and ensuring high yields in highly sensitive production environments.

Comparison with metallic and ceramic sealing solutions

When selecting sealing rings for semiconductor equipment, engineers often weigh the strengths and weaknesses of graphite, metal, and ceramic options. Metal seals, like stainless steel or nickel alloys, are strong and handle pressure well, but they expand and contract with temperature changes. In processes with repeated heating and cooling, this can lead to leaks or misalignment. Metals can also corrode when exposed to reactive gases, shortening their lifespan and potentially introducing contamination. Ceramic seals are very hard and chemically resistant, making them useful in corrosive environments. They can withstand high temperatures without softening, but they are brittle and prone to cracking if exposed to shocks, misalignment, or uneven pressure. Ceramics also tolerate thermal cycling less effectively, which can be a problem in furnaces or reactors where temperatures fluctuate frequently. Isostatic graphite, however, combines the best qualities of both metals and ceramics. It resists chemical attack like ceramics but is far less brittle, allowing it to withstand shocks and uneven pressure. Its structure handles thermal cycling much better than metals or standard ceramics, remaining stable through hundreds of heating and cooling cycles. Graphite doesn't corrode and has low outgassing, helping keep wafers free from contamination. As a result, graphite sealing rings often last longer, require less maintenance, and maintain a tighter seal in demanding environments. While metals or ceramics may be suitable in lower-risk applications, graphite is generally the preferred choice in advanced semiconductor manufacturing where vacuum integrity, process stability, and particle-free conditions are essential.
