Ⅰ. Common Features of MBE and MOCVD
Working Environment: Both operate in a cleanroom environment.
Application Scope: Both techniques can produce identical epitaxial structures in specific material systems, such as arsenides.
Ⅱ. The differences between MBE and MOCVD
MBE (Molecular Beam Epitaxy)

Working Principle: Utilizes high-purity elemental precursors, heated in evaporation cells to form molecular beams for deposition. Typically operates under ultra-high vacuum (UHV) conditions to prevent contamination by air molecules.

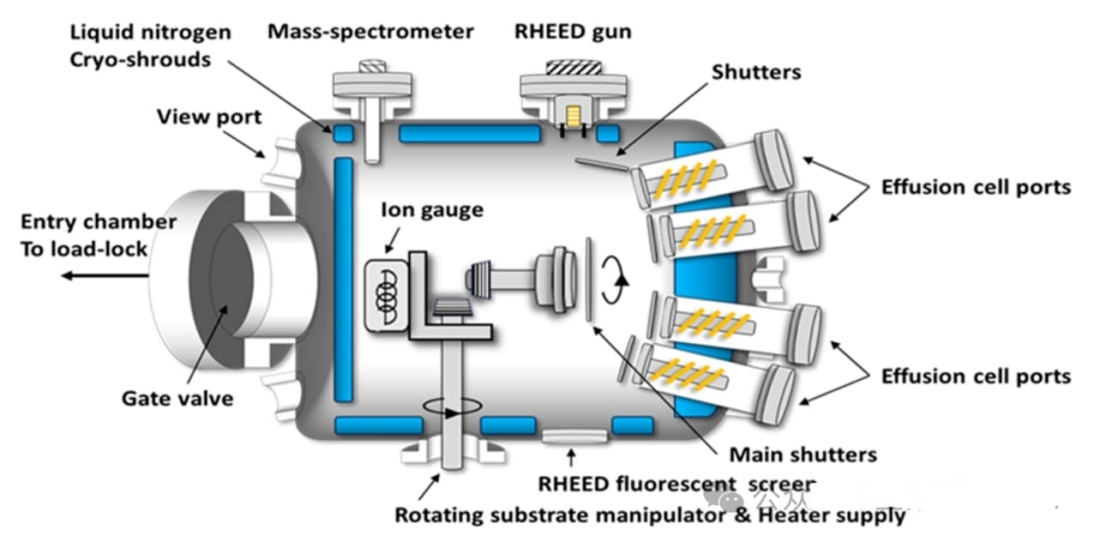

Equipment Structure: Composed of a sample transfer chamber and a growth chamber. The growth chamber is sealed and only opened during maintenance. Substrates are mounted on a heated holder surrounded by a liquid nitrogen-cooled cryoshroud to trap impurities and atoms not captured on the substrate surface.
Monitoring Tools: Employs in situ monitoring tools such as reflection high-energy electron diffraction (RHEED) for observing the growth surface, laser reflectometry, thermal imaging, and chemical analysis (mass spectrometry, Auger spectroscopy) to analyze the composition of evaporated materials. Additional sensors measure temperature, pressure, and growth rates for real-time adjustments.
Growth Rate: Typically around one-third of a monolayer per second (~0.1 nm, 1 Å). Controlled by flux rates (atomic arrival rate at the substrate, governed by source temperatures) and substrate temperature (affecting surface diffusion and desorption). Mechanical shutter systems enable precise control over growth rates and material supply, allowing reliable and reproducible growth of ternary/quaternary alloys and multilayer structures.
Material Properties
Silicon: Growth on silicon substrates requires extremely high temperatures (>1000°C) to ensure oxide desorption, necessitating specialized heaters and substrate holders.34 Lattice constant and thermal expansion coefficient mismatches make III-V material growth on silicon an active research area.
Antimony (Sb): For III-Sb semiconductors, low substrate temperatures are essential to prevent desorption from the surface.6 At elevated temperatures, "disproportionation" may occur, where one atomic species is preferentially evaporated, leaving non-stoichiometric material.
Phosphorus (P): For III-P alloys, phosphorus deposition within the chamber requires time-consuming cleaning processes, rendering short production runs impractical.
Strained Layers: Lower substrate temperatures are typically required to reduce atomic surface diffusion, minimizing layer relaxation risks.6 However, this may lead to defects due to reduced mobility of deposited atoms, causing voids in the epitaxial layer that can become encapsulated and induce failures.
MOCVD (Metal-Organic Chemical Vapor Deposition)

Working Principle: A chemical vapor deposition process utilizing ultra-pure gaseous precursors, requiring handling and treatment of toxic gases. High-purity metalorganic precursors (e.g., trimethylgallium [TMGa] or trimethylaluminum [TMAl] for Group III elements, and hydride gases such as arsine [AsH3] and phosphine [PH3] for Group V elements) are used for epitaxial layer deposition.

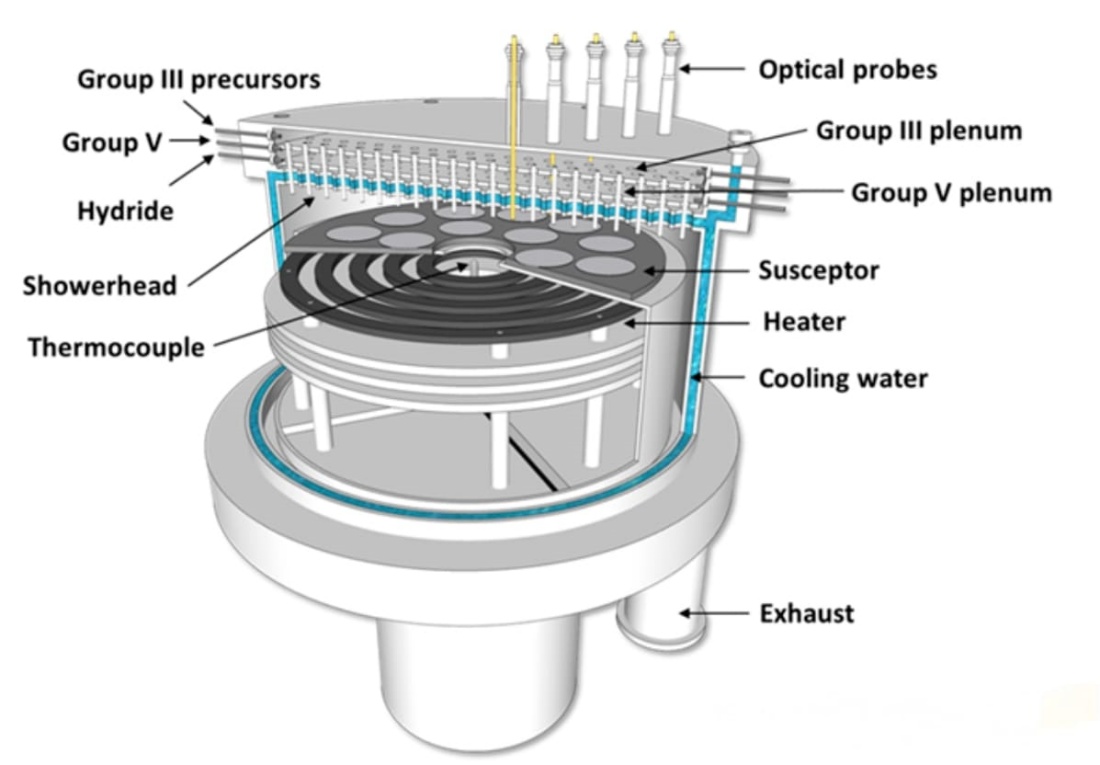

System Structure: Features a high-temperature, water-cooled reaction chamber. Substrates are placed on a graphite susceptor heated via RF, resistive, or infrared methods. Reactive gases are vertically injected into the process chamber above the susceptor. Layer uniformity is achieved by optimizing temperature, gas injection, total flow rate, susceptor rotation, and pressure.
Monitoring Tools:
· Emissivity-corrected thermal imaging for in situ substrate surface temperature measurement.
· Reflectometry to analyze surface roughness and epitaxial growth rates.
· Laser-based curvature measurement for substrate bending monitoring.
· Ultrasonic gas sensors to track metalorganic precursor concentrations, enhancing process accuracy and reproducibility.
Growth Conditions:
· Growth temperature is primarily determined by precursor pyrolysis requirements, then optimized for surface migration.
· Growth rates are governed by the vapor pressure of Group III metalorganic sources in the bubbler.
· Aluminum-containing alloys (e.g., AlGaAs) are typically grown at higher temperatures (>650°C), while phosphorus-containing layers (e.g., GaInP) are deposited at lower temperatures (<650°C), with exceptions such as AlInP.
Material Properties:
· For highly strained layers, strain balancing and compensation are achievable via routine use of arsenide and phosphide materials (e.g., GaAsP barriers and InGaAs quantum wells [QWs]).
· For antimonide materials, the lack of suitable precursors leads to unintentional (and often undesirable) carbon incorporation in AlSb, restricting alloy options and limiting adoption of antimonide growth in MOCVD.
Ⅲ. Summary
Monitoring Options:
MBE typically offers more in situ monitoring options compared to MOCVD. In MBE, epitaxial growth is adjusted via flux rates and substrate temperature—parameters that are independently controlled—enabling clearer, more direct insights into the growth process through correlated in situ monitoring.
Material Suitability:
MOCVD is a highly versatile technique capable of depositing diverse materials (e.g., compound semiconductors, nitrides, oxides) by altering precursor chemistry. MOCVD chambers also require shorter cleaning times than MBE systems.
Application Advantages:
· Sb-based materials: MBE is the preferred growth method.
· P-based materials: MOCVD is favored.
· As-based materials: Both techniques exhibit comparable capabilities.
· Advanced structures (e.g., quantum dots, quantum cascade lasers): MBE is often chosen for foundational epitaxy.
· Epitaxial regrowth: MOCVD is typically preferred due to its flexibility in etching and masking.
Specialized Applications:
· MOCVD excels in distributed feedback (DFB) lasers, buried heterostructure devices, and regrowth of butt-coupled waveguides (which may involve in situ semiconductor etching).
· MOCVD is well-suited for monolithic InP integration. While monolithic GaAs integration remains nascent, MOCVD enables selective area growth, aiding in spacing emission/absorption wavelengths. MBE struggles here due to polycrystalline deposits forming on dielectric masks.
