What is tantalum carbide？

Tantalum Carbide (TaC) is an advanced ceramic material with excellent performance, known for its extremely high thermal stability, strong hardness and excellent corrosion resistance. In high-performance applications, especially in the semiconductor manufacturing industry, TaC shows irreplaceable key value.

Ⅰ. Chemical Structure and Physical Properties of Tantalum Carbide

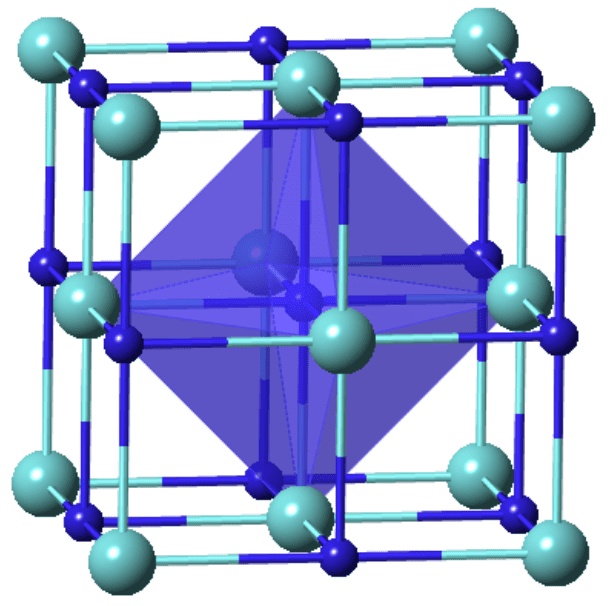

Tantalum carbide is a binary compound composed of tantalum (Ta) and carbon (C), with a chemical formula of TaC. It usually crystallizes as a face-centered cubic lattice structure (FCC), presents as a brown-gray metallic luster powder, and has a melting point of about 3880°C, which is one of the highest known melting points.

Main physical properties:

●Extremely high hardness: TaC is one of the hardest materials known, second only to a few materials such as diamond and boron nitride. This makes it incredibly wear-resistant.

●High melting point: TaC has a melting point of up to 3880°C, one of the highest melting points of all known compounds, and is very suitable for high-temperature applications.

●Excellent chemical inertness: It exhibits excellent corrosion resistance to acids, bases, and other corrosive chemicals, which is critical in harsh semiconductor environments.

●Good conductivity: Unlike many ceramics, TaC is conductive, which is important for certain semiconductor applications that require charge dissipation or specific electrical pathways.

●Thermal shock resistance: It can withstand rapid changes in temperature without cracking, which is a significant advantage in thermal cycling processes.

Because of these properties, tantalum carbide is often used in extreme environments in the form of coatings, especially for high-temperature processes in semiconductor manufacturing.

Ⅱ. Application of tantalum carbide in semiconductor manufacturing: coatings and others

In semiconductor manufacturing, TaC is mainly used in the form of TaC coatings and as a bulk material for key components. These applications take advantage of its unique combination of properties to improve process efficiency, extend equipment life, and improve wafer yields.

Main form: TaC is widely used as a protective coating for key components of various processes. These coatings are typically deposited by techniques such as chemical vapor deposition (CVD) or physical vapor deposition (PVD), which allows for precise control of thickness and uniformity.

Product Uses: The primary purpose of TaC in this industry is to provide:

●Wear resistance: Protects components from abrasive particles and high-velocity gas streams common in etching and deposition processes.

●Corrosion resistance: Protects components from corrosive plasma chemicals and reactive gases.

●High purity and low particle generation: Its inherent stability and hardness help reduce particle contamination, which is critical to preventing defects on sensitive wafers.

●Thermal stability: Ensures that components maintain their integrity and dimensional stability at high temperatures encountered during processing.

III. Main TaC Products in Semiconductor Processing

Tantalum carbide's excellent physical properties make it an indispensable material for several key components in semiconductor manufacturing equipment. Main TaC Related Products:

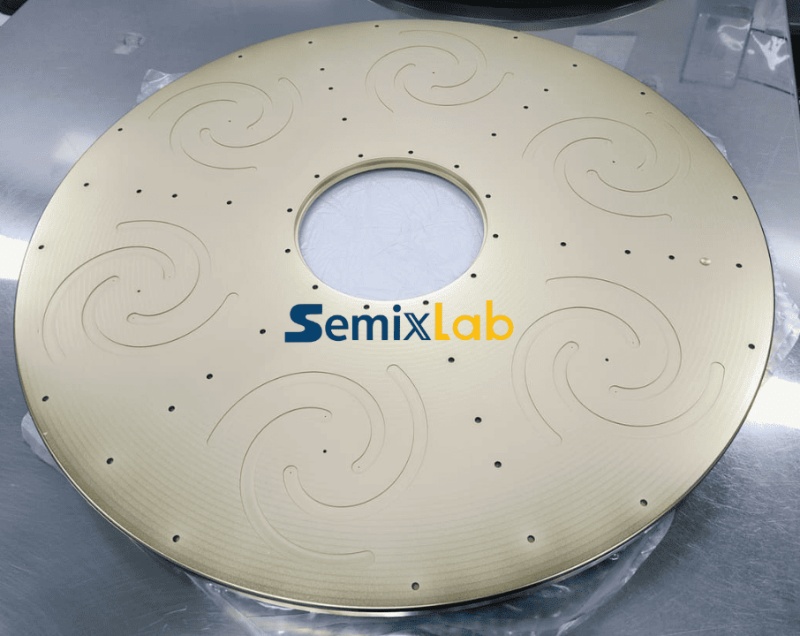

1. TaC Epitaxial Susceptors:

This is probably one of the most critical applications. During epitaxial growth processes (e.g., growing SiC or GaN on Si), wafers are placed on TaC-coated susceptors. TaC coatings provide:

● High temperature stability: Critical for maintaining uniform wafer temperature during epitaxial growth processes, which are typically performed at very high temperatures.

● Chemical inertness: Prevents susceptor material from reacting with process gases, ensuring high purity of thin films and minimizing contamination.

● Wear resistance: Extends susceptor life in demanding, high-throughput environments.

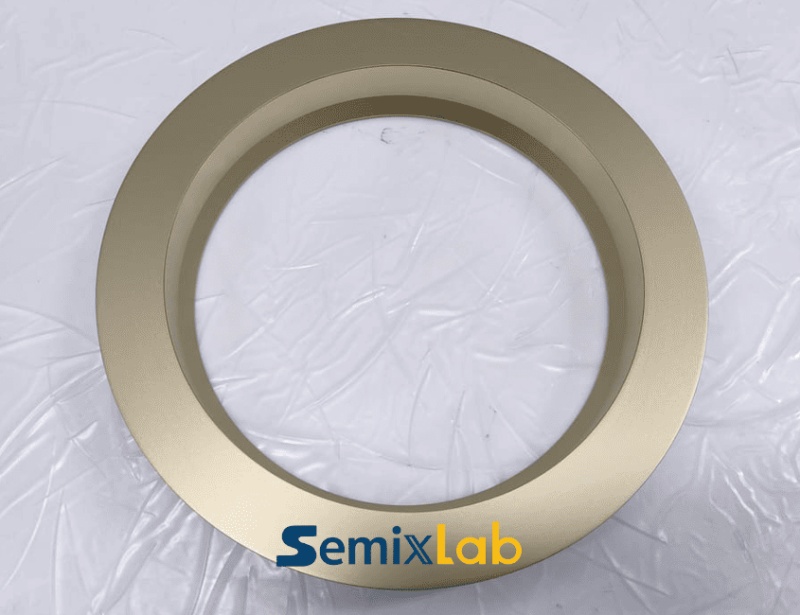

2. TaC Guide Rings:

These rings are used to precisely position and secure wafers during various processing steps, particularly in plasma etch and deposition chambers. Their TaC coatings provide:

● Excellent hardness and wear resistance: Minimizes friction-generated particles, preventing defects on the wafer.

● Plasma resistance: Withstands corrosive plasma environments without degradation or contamination.

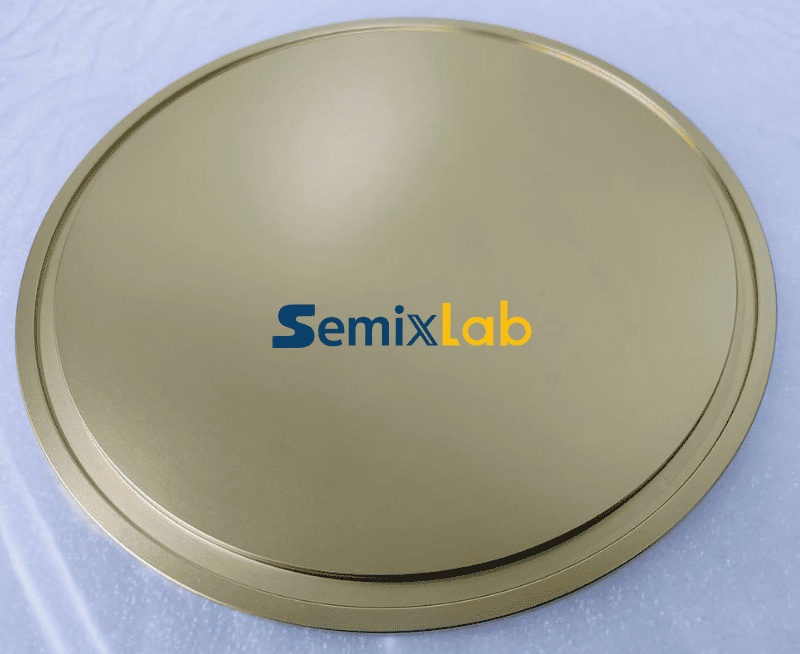

3. Tantalum Carbide Epitaxial Disc:

Similar to susceptors, these are used to support wafers for epitaxial deposition in systems that require a rotating or larger support structure. They benefit from the high temperature stability, chemical inertness, and purity provided by TaC.

4. Other Related TaC-Coating Components:

In addition to these primary examples, TaC coatings are applied to a variety of other critical components in semiconductor processing equipment, including:

Showerheads: Used to evenly distribute process gases across the wafer. TaC ensures uniform gas flow and resists chemical attack.

Electrodes: Used in plasma generation, TaC coatings prevent corrosion and contamination.

Chamber Walls and Liners: Provide protective, inert surfaces within the process chamber, reducing particle generation and corrosion.

Gas Injectors and Nozzles: Maintain integrity in high temperature, corrosive gas flows.

Semixlab focuses on the research and development and large-scale production of advanced technologies in the semiconductor industry, such as CVD silicon carbide coatings, CVD tantalum carbide coatings and high-purity CVD SiC materials. At the same time, we support customized product technology and services. We sincerely look forward to your further consultation.
