What is tantalum carbide coating used for?

Abstract: Tantalum Carbide (TaC) coating is a high-performance ceramic material applied to protect critical components in extreme environments, particularly in semiconductor manufacturing . We will delve into its definition, physical properties, compatible substrates, and specific roles in semiconductor processing.

What is TaC Coating？

TaC coating is an ultra-high-temperature ceramic (UHTC) layer composed of tantalum and carbon atoms. It is chemically inert, highly refractory, and designed to shield substrates like graphite from thermal degradation, chemical corrosion, and mechanical wear.

● Key Applications: Primarily used in semiconductor crystal growth (e.g., SiC, GaN), aerospace thermal protection, and high-temperature industrial processes.

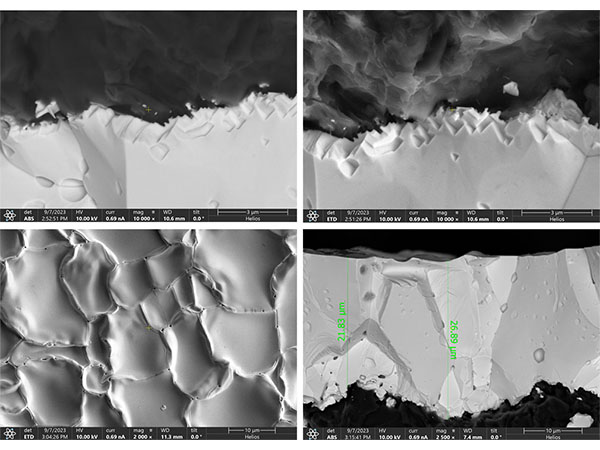

Tantalum carbide (TaC) coating on a microscopic cross-section

Physical and Chemical Properties

Tantalum Carbide TaC coatings exhibit exceptional material characteristics, making them ideal for harsh environments:

● High Melting Point: 3880°C, enabling stability above 2200°C in semiconductor reactors.

● Thermal Conductivity: 22 W/m·K, ensuring efficient heat dissipation in high-power applications.

● Low Thermal Expansion: Coefficient of 6.6×10⁻⁶ K⁻¹, reducing thermal stress and cracking risks.

● Chemical Inertness: Resistant to H₂, NH₃, SiH₄, and molten metals, critical for maintaining purity in semiconductor processes.

● Hardness: Mohs hardness of 9–10, surpassing many ceramics like SiC, ensuring durability against abrasion.

Tantalum Carbide Coating Compatible Substrates

TaC coatings are typically applied to carbon-based materials due to their chemical and thermal compatibility:

● Graphite: The most common substrate for semiconductor components (e.g., crucibles, wafer carriers). TaC prevents graphite oxidation and silicon vapor corrosion, extending component lifespan by 30–50%.

● C/C Composites: Used in aerospace for thermal protection. TaC enhances oxidation resistance in rocket nozzles and turbine blades.

● Transition Layers: To address thermal expansion mismatch, intermediate layers (e.g., SiC) or gradient coatings are sometimes applied between TaC and the substrate.

Roles in Semiconductor Manufacturing

In semiconductor fabrication, TaC coatings are indispensable for controlling crystal quality and process efficiency:

A. SiC Crystal Growth (PVT Method)

● Crucibles: TaC-coated graphite crucibles reduce nitrogen impurities in SiC crystals by 99%, minimizing defects like micropipes. Studies show carrier concentrations drop from 4.5×10¹⁷/cm³ (bare graphite) to 7.6×10¹⁵/cm³ with TaC.

● Thermal Uniformity: The coating ensures even heat distribution, critical for growing thick, high-purity SiC ingots.

B. GaN/AlN Epitaxy (MOCVD)

● Wafer Carriers: TaC-coated carriers resist ammonia (NH₃) and hydrogen (H₂) corrosion at 1000–1400°C, maintaining process stoichiometry and reducing particle contamination.

● Gas Injectors: Coated components prevent unwanted reactions with precursor gases, enhancing film uniformity

C. Cost Efficiency

● Extended Lifespan: Coated graphite parts last 30–50% longer, reducing replacement costs by 9–15% in SiC production.

Comparison with Silicon Carbide SiC Coating

TaC outperforms traditional coatings like SiC in extreme conditions:

● Thermal Stability: TaC operates above 2200°C, while SiC degrades beyond 1600°C.

● Etching Resistance: In NH₃ environments, TaC’s etching rate (0.2 µm/hr) is 7.5× lower than SiC (1.5 µm/hr).

● Purity: TaC’s impurity levels (<5 ppm) prevent dopant interference in semiconductor wafers.
