What is silicon carbide sic coating?

Ⅰ. What is Silicon Carbide (SiC)?

Silicon Carbide (SiC) is a compound semiconductor composed of silicon (Si) and carbon (C). In its pure form, it is an extremely hard, synthetic crystalline material. SiC can exist in a number of different crystal structures (called polytypes, such as 4H-SiC, 6H-SiC, 3C-SiC), each with slightly different properties. For coating applications, SiC is typically applied as a thin film to a substrate material to take advantage of its desirable surface properties.

A SiC coating is a layer of silicon carbide deposited on the surface of another material. These coatings are designed to protect the underlying substrate from harsh environments, improve its performance, or extend its service life. SiC coatings are deposited using a variety of methods, including chemical vapor deposition (CVD), physical vapor deposition (PVD), and plasma spraying. The choice of method depends on the desired coating thickness, uniformity, and substrate material.

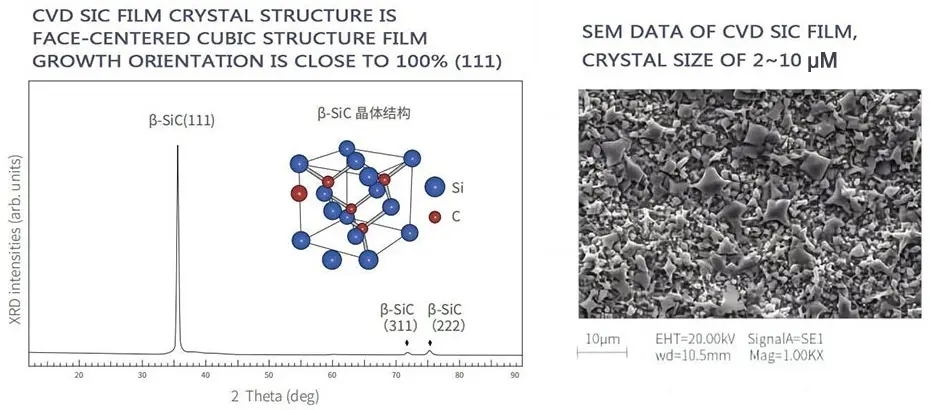

CVD SIC FILM CRYSTAL STRUCTURE

Ⅱ. Physical properties of Silicon Carbide SiC

SiC has an impressive array of physical properties that make it suitable for a variety of demanding applications, especially as a coating material.

These properties, especially its hardness, high temperature stability, and chemical inertness, make SiC an ideal choice for use as a protective coating in harsh industrial environments.

Ⅲ. The commonly used deposition substrates for SiC coating?

Silicon carbide (SiC) coatings are widely used in various industrial fields due to their excellent physical and chemical properties, especially in the semiconductor industry, which has strict requirements on material performance. Choosing the right substrate material is crucial to ensure the performance and durability of SiC coatings. The following are some commonly used deposition substrates for SiC coatings:

1. Graphite:

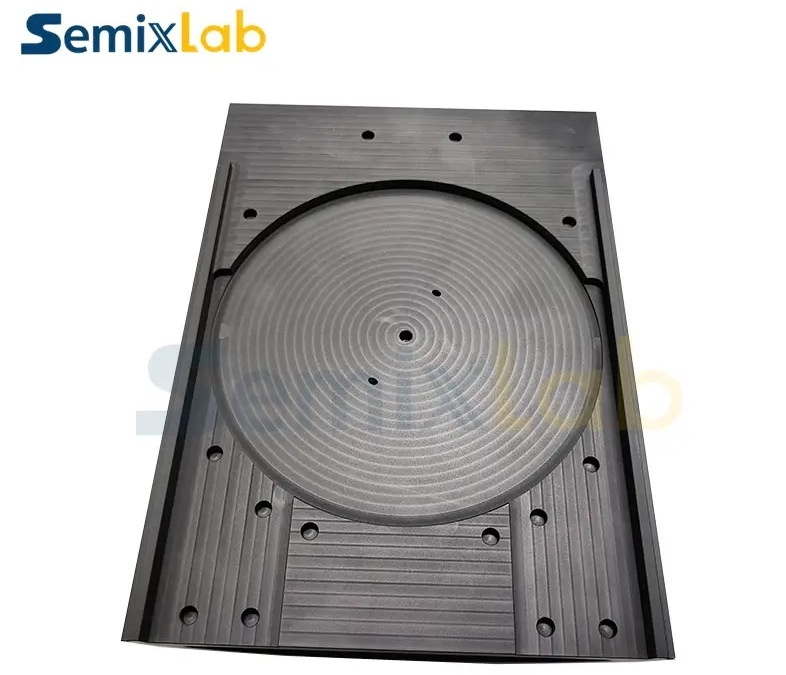

Reason: Graphite is a very common substrate for SiC coatings, especially on some parts in high-temperature applications and the semiconductor industry (such as heaters, boats, and susceptors). Graphite has good high-temperature stability and conductivity, and is relatively matched with the coefficient of thermal expansion (CTE) of SiC, which helps to reduce thermal stress. In addition, SiC coatings can significantly improve the oxidation resistance, corrosion resistance, and wear resistance of graphite parts, and reduce particle generation.

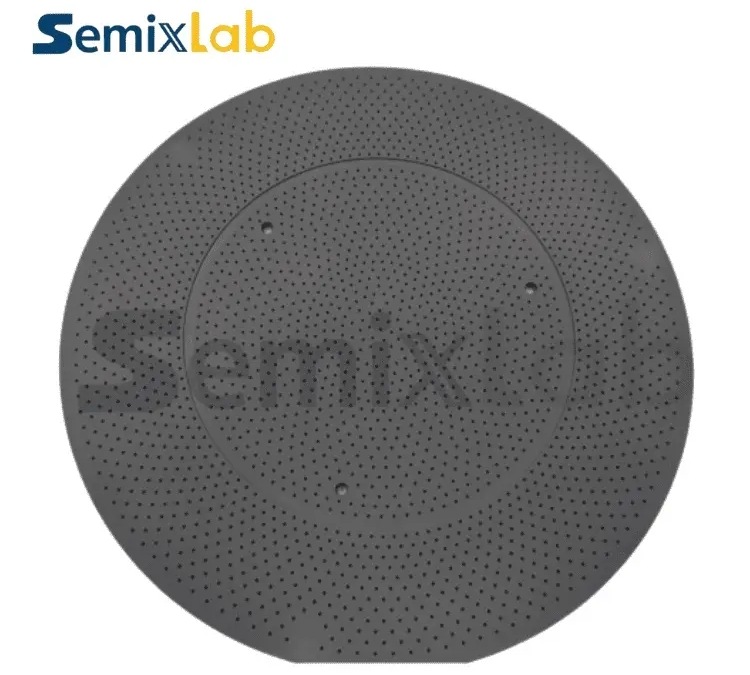

Application areas: Semiconductor equipment parts (MOCVD susceptors, epitaxial furnace parts), high-temperature furnace parts, rocket nozzles, etc.

2. Ceramic Materials (Ceramics):

Alumina (Al₂O₃): Relatively low cost, good insulation and certain mechanical strength. SiC coating can enhance its wear resistance and chemical corrosion resistance.

Silicon Nitride (Si₃N₄): High strength, high toughness and good thermal shock resistance. SiC coating can further improve its surface hardness and chemical stability.

Other ceramics: Such as Mullite, Boron Carbide, etc., selected according to specific application requirements. In semiconductor processes, high-purity ceramic substrates are preferred to avoid contamination.

3. Silicon (Silicon, Si):

Reason: In the semiconductor industry, it is common to deposit SiC coatings directly on silicon wafers or silicon components. This can provide a layer of protection against plasma erosion or as part of a specific electronic device structure. The chemical compatibility between the two is good.

Application areas: semiconductor wafer processing components, MEMS devices.

4. Metals and Alloys:

Reasons: Some metal parts need to improve wear resistance, corrosion resistance or high temperature resistance in specific environments. However, the difference in thermal expansion coefficient between metal and SiC is usually large, which may cause adhesion problems or generate stress during thermal cycling. Therefore, an intermediate transition layer or a special deposition process is usually required.

Common metal substrates:

● Stainless Steel: Used in situations where corrosion resistance and certain wear resistance are required.

● Molybdenum and its alloys: Used in high temperature applications due to its higher melting point and relatively good CTE matching.

● Tungsten and its alloys: Also used in high temperature environments.

Application areas: Chemical equipment components, high temperature structural parts, wear-resistant parts.

5. Bulk SiC:

Reason: Sometimes, a specific type of SiC coating (e.g., different polytype or higher purity SiC) is deposited on a bulk SiC substrate in order to further improve the surface characteristics of an existing SiC component (e.g., increase purity, change surface topography, or repair surface defects).

Applications: High purity SiC components in semiconductor devices (e.g., surface modification of SiC rings, SiC boats).

Key factors to consider when selecting a substrate material:

● Coefficient of thermal expansion (CTE) matching: CTE matching between substrate and coating is critical to reduce thermal stress and prevent cracking and spalling, especially under conditions that experience temperature changes.

● Chemical compatibility: The substrate material should not react adversely with theSiC coatingor the process environment.

● Adhesion: The SiC coating must be able to adhere strongly to the substrate. The surface treatment of the substrate (cleanliness, roughness) has a great impact on adhesion.

● Operating temperature: The substrate material must be able to withstand the temperature of the SiC coating deposition process as well as the temperature of the final application environment.

● Mechanical properties: The substrate should have sufficient strength and toughness to support the coating and withstand the operating loads.

● Cost-effectiveness: The cost of the substrate material is also an important practical consideration.

Ⅳ. Limitations of SiC Coatings in Semiconductor Processing

Despite the numerous advantages of SiC coatings, there are also some limitations in semiconductor applications:

1. Cost: High-purity SiC raw materials and the specialized equipment and processes required for deposition (especially high-quality CVD SiC) can make SiC coatings more expensive than some traditional alternatives. This can be a barrier for some cost-sensitive applications or components.

2. Brittleness: Like most ceramics, SiC is inherently brittle. Although very hard, it is prone to chipping or cracking under mechanical shock or high stress concentrations. This requires careful design and processing of SiC coated components.

3. Coefficient of Thermal Expansion (CTE) Mismatch: Although the CTE of SiC is relatively stable, the significant mismatch with the CTE of the substrate material can lead to high internal stresses during thermal cycling (heating and cooling). This can cause cracking, delamination, or deformation of the coating or substrate. Careful material selection and design are required to mitigate this.

Deposition Challenges:

1. Uniformity on Complex Geometries: Achieving perfectly uniform SiC coatings on large or complex-shaped components can be challenging and may require complex deposition techniques and process control.

2. Adhesion: Ensuring strong adhesion between the SiC coating and the substrate material is critical to the performance and lifetime of the coating. Surface preparation of the substrate is critical.

3. Stress in Thick Coatings: As coating thickness increases, internal stresses can accumulate, which can lead to cracking or delamination.

4. Processability: Due to its extreme hardness, machining or modifying SiC coatings (or bulk SiC) after deposition is difficult and expensive, typically requiring diamond tools or laser ablation techniques. This means that components often need to be machined to near-net shape before coating.

5. Defect Control: Achieving extremely low defect densities (e.g., pinholes, cracks, inclusions) in SiC coatings, especially in critical applications, requires tight process control and high-purity precursors. These defects can compromise the protective properties of the coating.

Addressing these limitations typically involves continued R&D in SiC material science, deposition techniques, and component design to optimize the performance and cost-effectiveness of SiC coatings in the evolving semiconductor industry.
