What is Chemical Mechanical Polishing (CMP)?

Chemical Mechanical Polishing (CMP)

 Chemical Mechanical Polishing (CMP) has evolved into a critical process in modern integrated circuit (IC) fabrication, enabling the precise planarization required for advanced device architectures. During CMP, a combination of mechanical abrasion and chemical etching is employed to achieve an atomically smooth and level wafer surface. The process utilizes a slurry, containing abrasive particles and reactive chemicals, together with a polishing pad that facilitates controlled material removal.

The abrasive particles in the slurry mechanically wear down elevated surface features, while the chemical components selectively react with and dissolve the loosened material. This synergistic mechanism allows CMP to remove topographical high points faster than recessed regions, resulting in global planarization.

While purely mechanical polishing can achieve partial surface leveling, it often induces subsurface damage and defects. Conversely, purely chemical etching—though capable of producing damage-free surfaces—is isotropic and ineffective at reducing surface topography. CMP bridges these limitations by combining both mechanisms, enabling precise planar control, minimal surface damage, and excellent uniformity across the wafer.

Applications of CMP in Semiconductor Manufacturing

Chemical Mechanical Polishing (CMP) has become a core enabling technology in semiconductor manufacturing, particularly as device geometries have scaled below 10 nm and multilayer integration has become increasingly complex. The ability of CMP to achieve global planarity across the wafer surface makes it indispensable for building advanced integrated circuits (ICs) with multiple interconnect and dielectric layers.

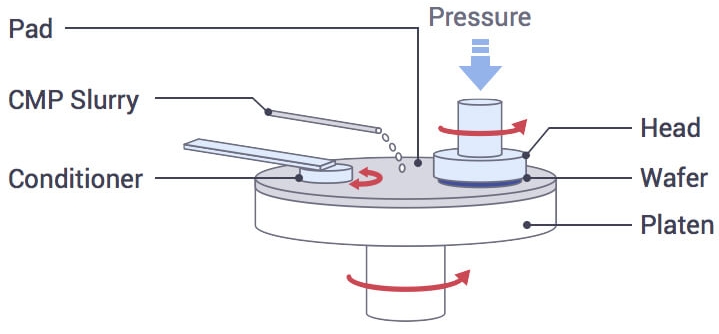

CMP Slurry working diagram

Below are the major applications of CMP in modern semiconductor processing:

(1) Interlayer Dielectric (ILD) Planarization

After the deposition of insulating layers such as SiO₂ or low-k dielectrics, the wafer surface often exhibits significant topography caused by underlying metal patterns. If left uncorrected, this non-planarity can lead to photolithography focus errors, poor pattern fidelity, and even short circuits in subsequent layers.

 CMP removes the excess dielectric material, creating a perfectly flat surface** before the next metal layer is deposited. This process ensures accurate alignment of subsequent photomasks and improves overall yield.

Typical ILD CMP uses colloidal silica-based slurries with low removal rates to prevent erosion and dishing, combined with soft pads for excellent global uniformity.

(2) Shallow Trench Isolation (STI) Planarization

STI is a critical isolation technique used to electrically separate adjacent transistors in CMOS devices. The trenches are first etched into the silicon substrate and filled with silicon dioxide. However, this overfilled oxide layer must be planarized to expose the silicon surface and define the isolation region precisely.

CMP is used here to remove excess oxide selectively while maintaining the integrity of the trenches. The process requires excellent selectivity between SiO₂ and silicon nitride (Si₃N₄)—since the nitride acts as a stop layer. Proper control of pressure, slurry chemistry, and endpoint detection prevents loss of isolation thickness and guarantees uniform transistor performance across the wafer.

(3) Metal CMP for Interconnect Formation (Cu, W, Al)

In advanced integrated circuits, electrical connections between transistors are formed using metal interconnects, commonly copper (Cu) or tungsten (W).

After the metal is deposited into patterned trenches or vias, it forms an overburden layer on the wafer surface. CMP removes this excess metal and the barrier layer (such as Ta or TaN), leaving only the inlaid metal within the trenches—a process known as damascene CMP.

Copper CMP: Involves multiple steps—bulk removal, barrier removal, and surface polishing. The slurry contains oxidizers (like H₂O₂) and corrosion inhibitors (such as benzotriazole) to maintain a smooth, defect-free copper surface.

Tungsten CMP: Commonly used for contact plug formation, using alumina-based slurries that ensure high removal selectivity and minimal micro-scratching.

Metal CMP directly affects line resistance, electromigration reliability, and interconnect uniformity, which are critical for maintaining signal integrity in advanced ICs.

(4) Silicon Wafer and Epitaxial Layer Polishing

Before epitaxial growth or film deposition, silicon wafers must have atomically flat, defect-free surfaces. CMP is used as the final step in wafer surface preparation to remove mechanical damage and achieve sub-nanometer surface roughness.

This ensures uniformepitaxial growth, minimizes crystal defects, and improves carrier mobility in subsequent device layers.

In this stage, ultra-fine colloidal silica slurries and chemically neutral polishing pads are used to achieve ultra-smooth surfaces with Ra < 1 nm across 300 mm wafers.

(5) Barrier and Hardmask Planarization

As device architecture evolves toward 3D NAND, FinFETs, and gate-all-around (GAA) transistors, CMP is increasingly applied for barrier and hardmask film planarization.

It enables precise thickness control for layers such as Si₃N₄, TiN, and Al₂O₃, which are used as protective or etch-stop layers. Controlled CMP helps maintain **critical dimension (CD) uniformity and process repeatability in these complex structures.

(6) Emerging CMP Applications

With the industry moving toward 3D integration and heterogeneous packaging, CMP is also finding new roles in:

●Through-Silicon Via (TSV) CMP: Used to planarize copper vias in 3D stacked chips.

●Wafer bonding surface preparation: CMP provides the ultra-flat, contamination-free surfaces required for wafer-to-wafer bonding in MEMS and advanced packaging.

●Compound semiconductors (SiC, GaN): Specialized CMP techniques are used to polish hard materials with minimal subsurface damage, improving device reliability in power electronics and RF applications.

 CMP is a highly sensitive and precision-driven process-every parameter, from slurry chemistry to pad conditioning,directly affects wafer planarity, defectivity, and device reliability. By establishing robust process monitoring, routine pad/slurry maintenance, and closed-loop control, manufacturers can achieve exceptional CMP stability, ensuring each wafer meets the stringent surface quality required for today’s advanced semiconductor nodes.

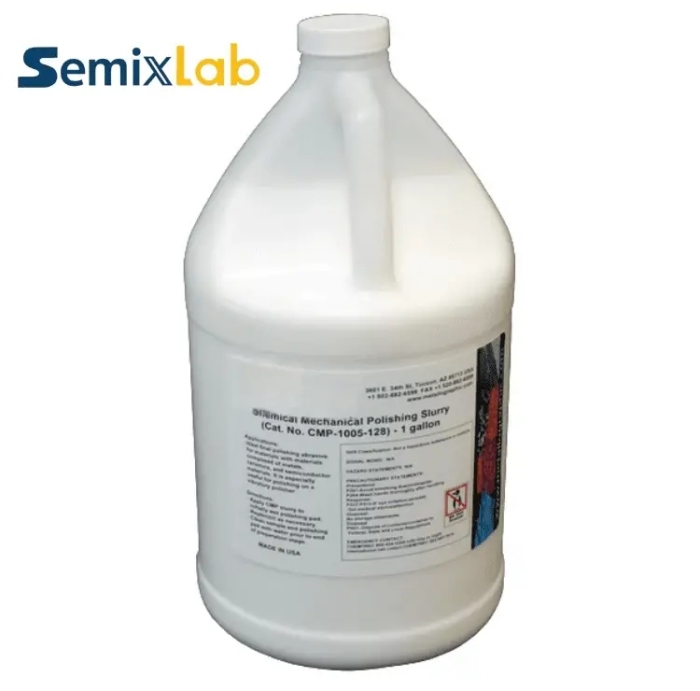

As a leading manufacturer and supplier of CMP polishing abrasives in China, Semixlab offers a wide range of ultra-high purity products to meet your performance requirements. Contact us for further customization and technical support.
