What is CVD Coating?

Abstract:

CVD coating—or Chemical Vapor Deposition—is a core technology used in semiconductor manufacturing to deposit high-purity, high-performance thin films onto complex components. This blog offers a deep dive into what CVD coating is, explores its thermal and chemical properties, compares popular materials like SiC and TaC, and explains where and why these coatings are used in real-world semiconductor processes such as epitaxy, diffusion, and plasma etching. Ideal for engineers and procurement teams looking to optimize component reliability and process stability.

In the world of advanced semiconductor manufacturing, CVD coating—short for Chemical Vapor Deposition—is a foundational technology that ensures durability, purity, and performance in extreme environments. From wafer carriers to susceptors and diffusion components, CVD coatings play a critical role in enabling high-precision processes and extending the lifetime of semiconductor equipment.

Ⅰ. What is CVD Coating?

Chemical Vapor Deposition (CVD) is a high-temperature surface coating process in which volatile precursors react or decompose on a heated substrate to form a thin, solid film. This film typically serves as a protective, functional, or structural layer on components exposed to high-temperature or corrosive environments.

The process occurs in a controlled vacuum or low-pressure environment, allowing for high-purity, conformal coatings with excellent adhesion to complex geometries.

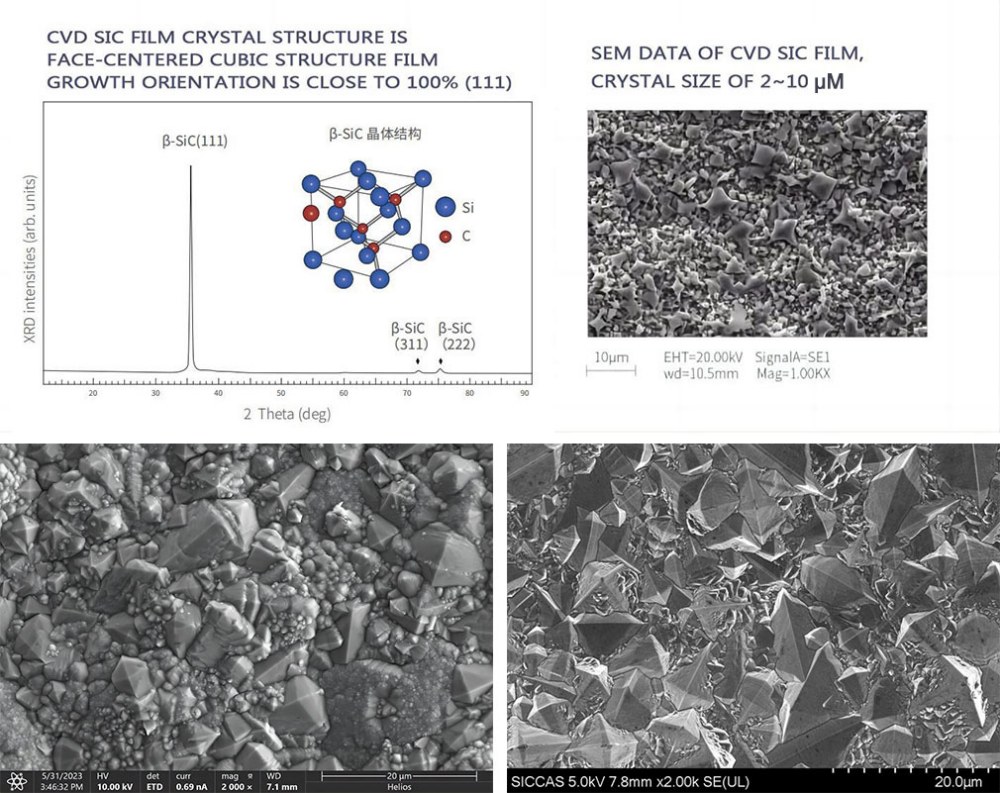

CVD SiC Film Crystal Structure

Ⅱ. Key Physical and Performance Characteristics

CVD coatings are valued for their exceptional physical properties, which make them ideal for high-demand semiconductor applications:

● High purity (often >99.9%): Especially important for ultra-clean environments.

● Excellent thermal stability: Maintains structural integrity above 1500°C.

● Superior hardness: Often above 2000 HV (e.g., TaC or SiC).

● Chemical inertness: Resists strong acids, bases, and plasma environments.

● Low outgassing: Critical for vacuum-based deposition and etching systems.

● Conformal coverage: Even on complex internal and external surfaces.

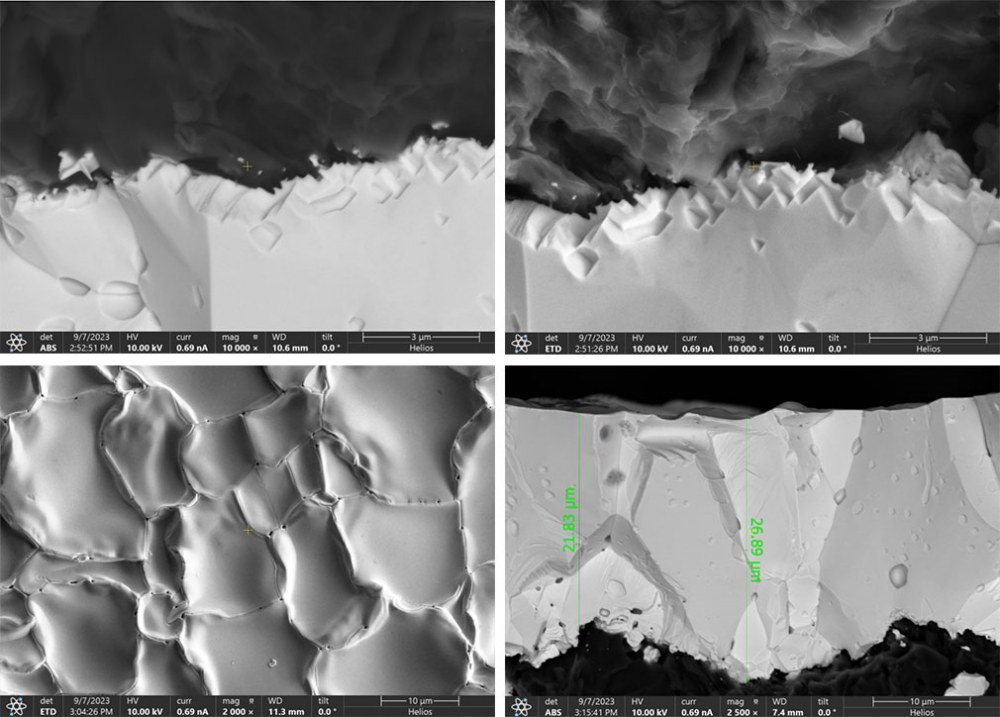

Tantalum carbide (TaC) coating on a microscopic cross-section

Ⅲ. Common Types of CVD Coating in Semiconductor Applications

Each type of CVD coating is engineered to meet specific challenges in semiconductor processing. Below are some of the most widely used materials:

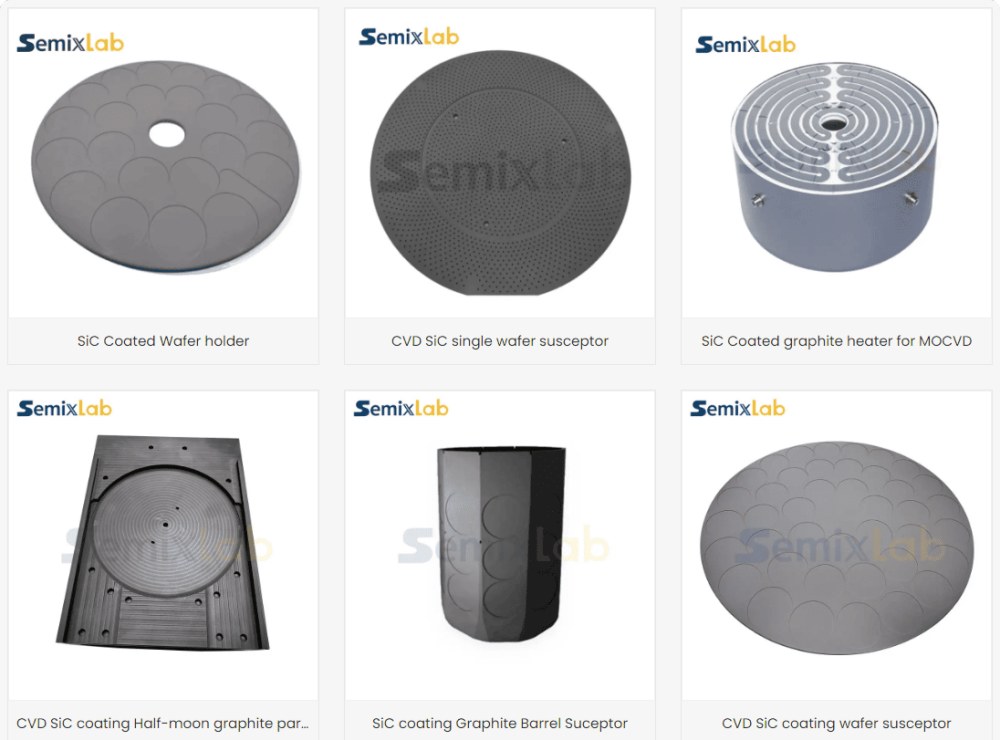

1. CVD Silicon Carbide (SiC) Coating

● Application: Used on quartz, graphite, or SiC components like wafer boats, susceptors, and etching plates.

● Features: High hardness, thermal shock resistance, and strong corrosion resistance.

● Processes: Ideal for LPCVD, diffusion, epitaxy, and dry etching systems.

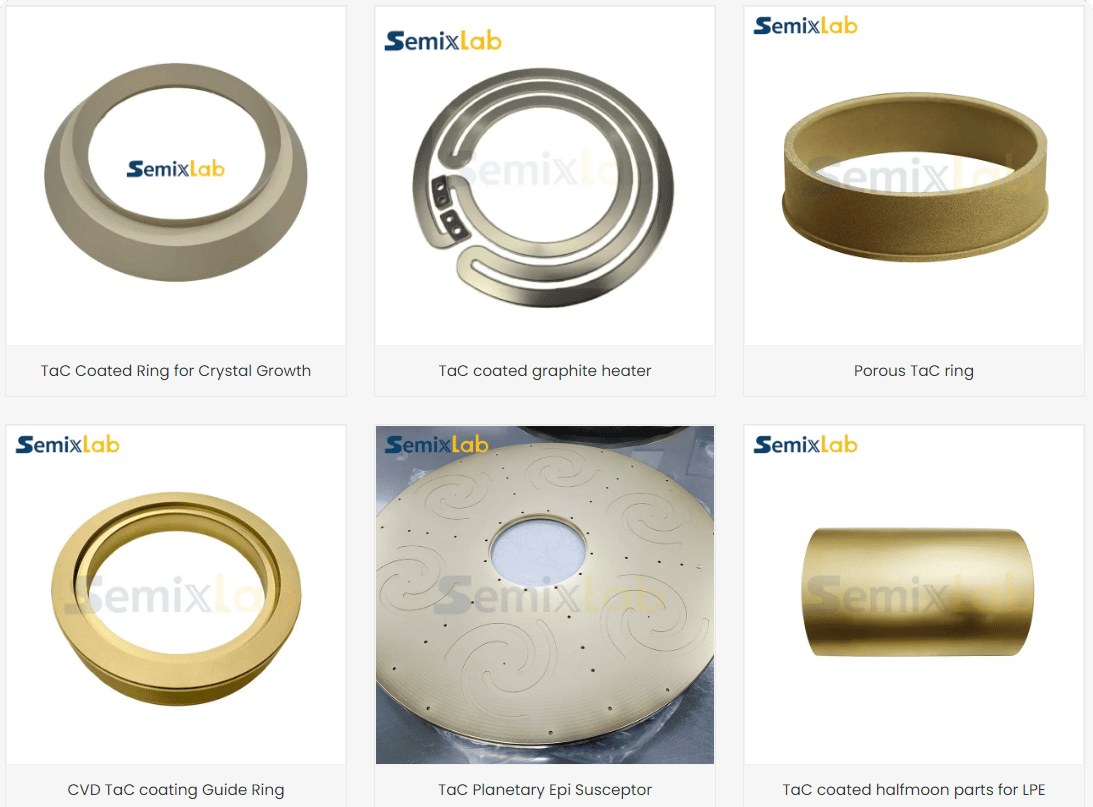

2.CVD Tantalum Carbide (TaC) Coating

● Application: Coated on graphite or SiC substrates to form susceptors and process rings.

● Features: Ultra-high melting point (~3880°C), excellent resistance to halogen-based plasmas.

● Processes: Common in SiC epitaxy (especially in aggressive HCl environments).

3.CVD Silicon Dioxide (SiO₂) or Silicon Nitride (Si₃N₄)

● Application: Insulating or diffusion barrier layers in IC fabrication.

● Features: Electrical insulation, oxidation resistance.

● Processes: Used in gate dielectric layers and passivation coatings.

4.Other CVD Materials

● Examples: Titanium nitride (TiN), boron nitride (BN), aluminum oxide (Al₂O₃).

Ⅳ. Applications in Semiconductor Processing

CVD coatings are used extensively across key process chambers and equipment, including:

● Epitaxy: Coated susceptors (e.g., TaC-coated graphite) provide stable and contamination-free environments for crystal growth.

● Diffusion Furnaces: SiC-coated quartz tubes and wafer boats withstand high heat and reactive gases during dopant diffusion.

● Etching Systems (ICP, RIE): Coated electrostatic chucks and chamber liners resist aggressive plasma chemistries.

● Oxidation & LPCVD: Components such as SiC-coated cantilever paddles and rings offer long life and low particle generation.

Semixlab Technology Co.,Ltd. focuses on the research and development and large-scale production of advanced technologies in the semiconductor industry, such as CVD silicon carbide coatings, CVD tantalum carbide coatings, CVD Solid SiC, high-purity CVD SiC materials. We insist on providing customized products and technical solutions, and welcome your consultation at any time.
