Chemical vapor deposition (CVD) and metal organic chemical vapor deposition (MOCVD) are both key technologies in the field of thin film deposition and are widely used in semiconductor manufacturing. However, there are significant differences between the two in terms of principles, processes and application scenarios. This article makes a detailed comparison from the perspectives of definition, process flow, application fields, advantages and disadvantages.
Ⅰ. Definition and core principles
CVD (chemical vapor deposition)

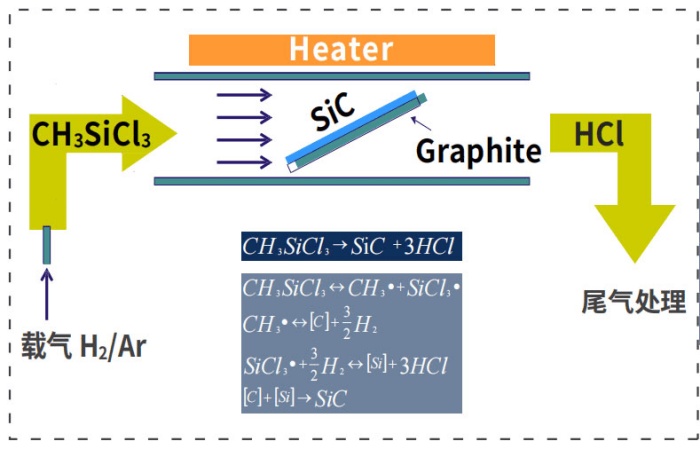

CVD deposits thin film materials (such as metals, ceramics, semiconductors) on the surface of a substrate through chemical reactions of gaseous precursors at high temperatures. For example, the deposition of sic coating in the semiconductor epitaxial process uses CVD technology. CVD usually requires high temperatures to activate chemical reactions.
MOCVD (metal organic chemical vapor deposition)

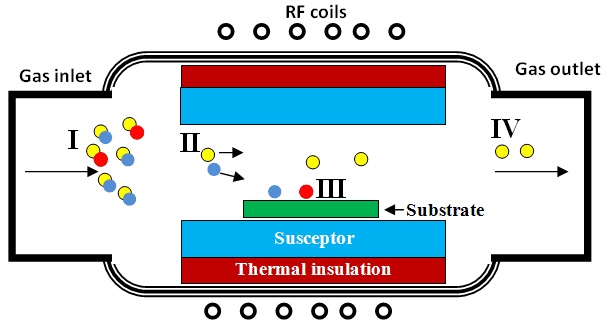

MOCVD is a special form of CVD that uses metal organic compounds (such as trimethyl gallium) and hydrides as precursors. These precursors decompose at relatively low temperatures (500–800°C) and can precisely control the growth of III-V compound semiconductors (such as gallium nitride GaN). The process temperature is relatively low and the film composition and thickness can be precisely controlled. MOCVD is a core technology for the manufacture of optoelectronic devices such as LEDs and laser diodes.
Ⅱ. Process flow comparison
| Comparison Dimensions | CVD | MOCVD |
| Precursors | Gas (such as silane SiH₄, ammonia NH₃) | Metal organic compounds (such as trimethylgallium TMGa) + hydrides (such as arsine AsH₃) |
| Temperature range | High temperature (500–1200°C) | Relatively low temperature (500–800°C) |
| Energy source | Thermal energy, plasma or light excitation | Thermal decomposition |
| Control accuracy | Medium | High (atomic level stoichiometric control) |
| Safety | Toxic gases (such as hydrogen H₂) need to be handled | Precursors are flammable and toxic, requiring strict protection |
Summary of core differences:
Precursor chemistry: MOCVD uses metal organic sources and is designed for complex compound semiconductors; CVD relies on simple gaseous precursors.
Temperature sensitivity: MOCVD low temperature characteristics are suitable for heat-sensitive substrates such as polymers or prefabricated devices.
Uniformity control: MOCVD uses advanced gas flow design (such as Veeco's TurboDisc technology) to support high uniformity deposition of multiple wafers.
Ⅲ. Application scenarios in semiconductor manufacturing
Main applications of CVD
Microelectronics: Deposition of dielectric layers (SiO₂, Si₃N₄), preparation of metal interconnect layers (tungsten, copper).

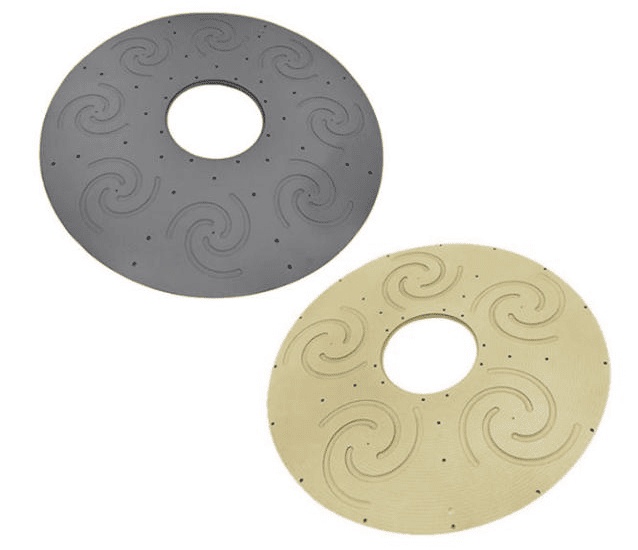

Semiconductor coating: In the field of semiconductor coating, such as CVD SiC Coating, CVD TaC Coating, etc., the comprehensive performance of Silicon Carbide Coating and Tantalum Carbide Coating products produced by Semixlab is at the world's advanced level.
Solar cells: CVD (especially PECVD) is the core technology for the manufacture of thin-film silicon solar cells. It achieves efficient and low-cost production of photovoltaic modules by low-temperature deposition of amorphous silicon, microcrystalline silicon and transparent conductive layers. The current industry leaders include Applied Materials, Oerlikon Solar and ULVAC.
Core applications of MOCVD
Optoelectronic devices:
LED: Gallium nitride (GaN) epitaxial layer growth supports blue/green LED production.
Laser diodes: Indium phosphide (InP) and gallium arsenide (GaAs) structures are used for optical communications.
Power electronics: Gallium nitride high electron mobility transistor (GaN HEMT), suitable for high-frequency devices.
Ⅳ. Advantages and limitations
| Technology | Advantages | Limitations |
| CVD | - Wide material compatibility- Suitable for large-scale low-cost production | - High temperature limits application scenarios- Insufficient precision for complex structures |
| MOCVD | - Atomic-level stoichiometric control- Supports high-volume optoelectronic device manufacturing | - High precursor cost- Complex waste disposal |
Ⅴ. How to choose CVD and MOCVD?
Material requirements: CVD is used for oxides, nitrides or metals; MOCVD is used for III-V/II-VI compound semiconductors.
Precision requirements: MOCVD is preferred for applications that require atomic-level interface control, such as quantum wells.
Cost considerations: CVD is used for general coatings such as sic coating and tac coating; high-performance optoelectronic devices can accept the high cost of MOCVD.
