Ⅰ. Technical Principles and Core Advantages
What is Smart Cut technology?
Smart Cut is an advanced semiconductor manufacturing process based on ion implantation and wafer splitting, specifically designed to produce ultra-thin, highly uniform 3C-SiC (cubic silicon carbide) wafers. It enables the transfer of ultra-thin crystalline material from one substrate to another, thereby overcoming traditional physical limitations and revolutionizing the substrate industry.
Technical Advantage Comparison
Compared to traditional mechanical cutting, Smart Cut technology significantly optimizes the following key metrics:
| Parameters | Smart Cut Technology | Traditional Mechanical Cutting |
| Material Loss Rate | ≤5% | 20-30% |
| Surface Roughness (Ra) | <0.5 nm | 2-3 nm |
| Wafer Thickness Uniformity | ±1% | ±5% |
| Typical Production Cycle | 40% shorter | Standard cycle |
Note: Data sourced from the 2023 International Technology Roadmap for Semiconductors (ITRS) and industry white papers.
Ⅱ. Characteristics of Smart Cut Technology
Enhanced Material Utilization
In traditional manufacturing methods, a significant portion of raw materials is wasted during the cutting and polishing processes of SiC wafers. Smart Cut technology achieves higher material utilization through layer transfer processes, which is particularly critical for expensive materials like 3C-SiC.
Improved Cost-Effectiveness
The reusable substrate feature of Smart Cut maximizes resource efficiency, substantially reducing manufacturing costs. This technology enables semiconductor manufacturers to enhance production line economics while maintaining high-quality outputs.
Superior Wafer Performance
The thin layers generated by Smart Cut exhibit fewer crystalline defects and higher uniformity. This enables 3C-SiC wafers produced with this technology to support higher electron mobility, directly improving semiconductor device performance.
Sustainability Alignment
By minimizing material waste and energy consumption, Smart Cut aligns with the semiconductor industry’s growing environmental requirements, offering manufacturers a viable pathway toward sustainable production.
Ⅲ. Four Key Process Steps

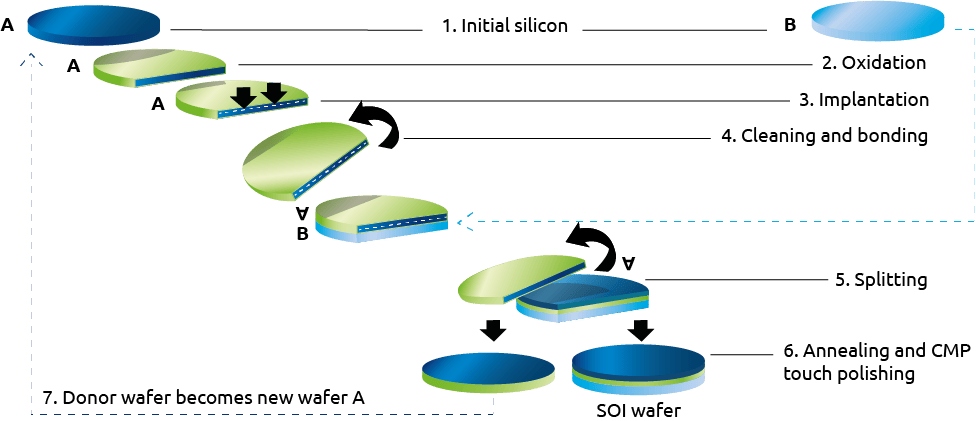

The innovation of Smart Cut technology lies in its highly controlled process flow:
00001.
Precise Ion Implantation
1. Multi-energy hydrogen ion beams enable layer-specific implantation with depth accuracy controlled within 5 nm.
2. Dynamic dose modulation technology minimizes lattice damage (defect density <100 cm⁻²).
Low-Temperature Wafer Bonding
1. Plasma-activated wafer bonding at temperatures below 200°C reduces thermal stress impacts on device performance.
Intelligent Cleavage Control
1. Integrated real-time stress sensors ensure microcrack-free layer separation (yield >95%).
Surface Polishing Optimization
1. Chemical mechanical polishing (CMP) achieves atomic-level surface smoothness (Ra 0.3 nm).
Ⅳ. Industry Applications and Case Studies
1. New Energy Vehicles: High-Voltage Power Device Upgrades
Application Outcomes:
1. 800V IGBT module efficiency increased to 98.5%, extending driving range by 12% (Tesla Model 3 field data)17.
2. Silicon carbide (SiC) MOSFETs reduce switching losses by 60%, compatible with 1200V ultra-fast charging systems14.
2. 5G Communications: Breakthroughs in High-Frequency RF Chips
Technical Metrics:
1. Insertion loss of millimeter-wave filters improved from 1.2 dB to 0.7 dB (Huawei base station testing)26.
2. Operating frequencies exceed 100 GHz, enabling 6G technology pre-research67.
3. Photovoltaics & Energy Storage: Doubled System Lifespan
Economic Impact:
1. Inverter lifespan extended from 15 to 25 years, lowering levelized cost of electricity (LCOE) to $0.02/kWh (Wood Mackenzie 2024 report)37.
2. Energy storage system density reaches 300 Wh/kg with a 30% cost reduction37.
Note: Data sourced from the 2023 International Technology Roadmap for Semiconductors (ITRS) and industry white papers.
Ⅴ. Technical Challenges and Future Trends
Current Bottlenecks
Cost Challenges
1.Wafer manufacturing costs are 30% higher than traditional methods, primarily due to over 80% reliance on imported equipment (SEMI 2023 data).
Large-Scale Production Limitations
1.12-inch wafer yield remains at 65%, necessitating the development of domestically produced ion implantation equipment.
Future Development Directions
2025 Targets
1. Reduce mass production costs for 8-inch wafers to $500 per piece (current: $800 per piece).
2. Control defect density to <50 cm⁻² to meet automotive-grade chip requirements.
2030 Outlook
1. Achieve global market share exceeding 45%, driving industrial chain scale beyond $5 billion (Yole Développement projection).
Ⅵ. Industrial Value of Technological Transformation
Smart Cut technology is reshaping the 3C-SiC wafer industrial landscape through a manufacturing revolution characterized by "thinner, stronger, and more efficient" production. Its large-scale adoption in fields like new energy vehicles and communication base stations has driven a 34% annual growth rate in the global silicon carbide market (2023-2028 CAGR). With advancements in equipment localization and process optimization, this technology is poised to become a universal solution for next-generation semiconductor manufacturing.
