Photoresist etching is an essential process for forming fine patterns on electronic parts. Photoresist is a unique material which can be modified by exposure to light. It is applied on a surface just before etching. Light hardens and protects the photoresist from whatever is beneath it. This Semixlab etching photoresist assists in creating precise patterns on the fabric.
2.2 Apply the photoresist Use a tool to coat the photoresist on the upper surface of the Si wafer. You can find these details in the “How to Make” section instructions on how thick the layer should be.

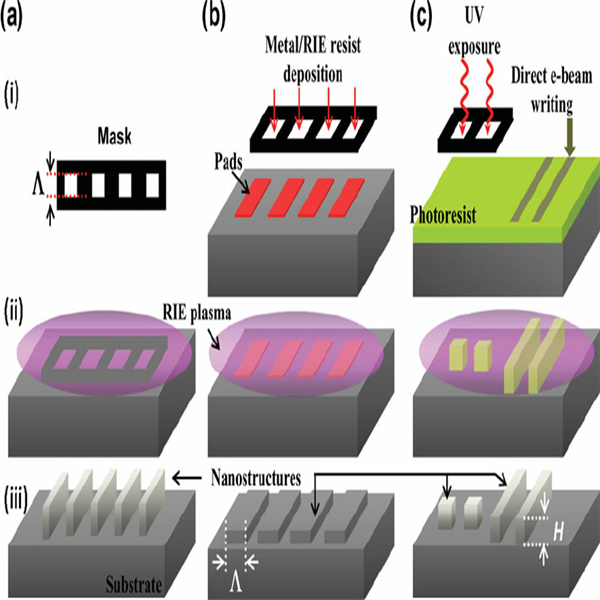

Expose the photoresist: Place a mask of the pattern you want on top of the photoresist and expose it to UV light. The light will solidify the portions of the photoresist providing a protective coating for etching.
Etch the material: Once you see the pattern, apply an etching agent to etch the material. The Semixlab negative photoresist pattern you draw will be the photoresist’s guide to where to harden, and you will then remove the unhardened photoresist and etch the unprotected area.
It’s important to etch right! It aids in getting a precise pattern on electronic parts. If you follow the right technique, The Semixlab dry film photoresist stand to produce large patterns that are of good quality and with little mistakes. With attention to details and consistency, manufacturers can produce reliable electronic components.
Under-etching: If you do not let the solution sit long enough, the Semixlab negative positive photoresist pattern is not likely to transfer fully. In this case, reapply the etching solution and watch it until the pattern is as desired.
Uneven etching: If the photoresist layer is not uniform, or is not exposed, well enough, you may get some uneven etching. Ensure the Semixlab photoresist material photoresist film is smooth and the exposure is correct.
