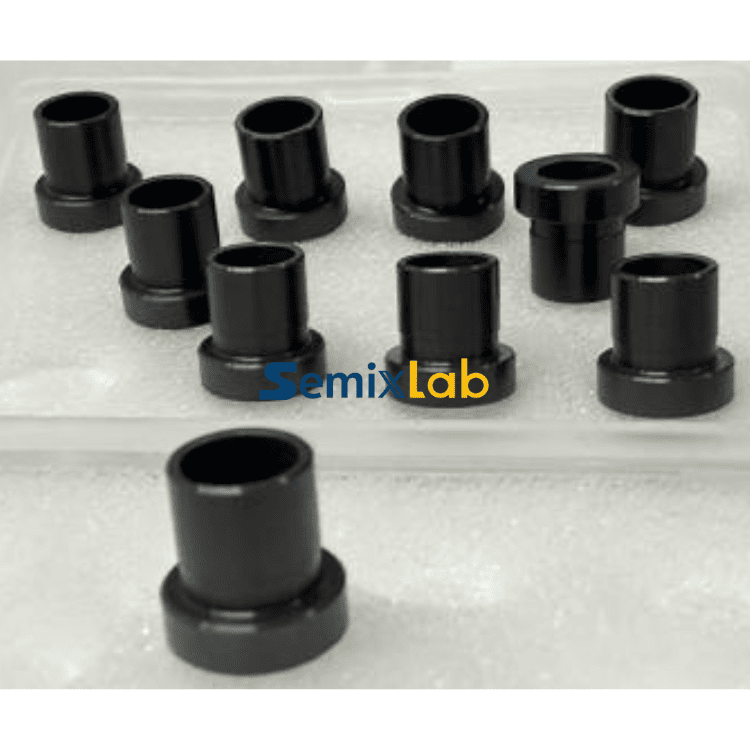

Silicon Nitride (Si₃N₄) Bushings & Sleeves

What makes Si₃N₄ special? It stays strong at high temperatures, resists thermal shock, and doesn't mind abrasive environments. Metals wear out or corrode; alumina cracks under stress. Silicon nitride just keeps going.

Where They're Used

You'll find these bushings and sleeves in all sorts of demanding settings:

● Semiconductor fabrication tools – wafer handlers, positioners, load locks.

● High-speed spindles and bearings – low friction, long life.

● Guide sleeves and precision shafts – maintain alignment under load.

● Vacuum chambers – outgassing is minimal, and they don't degrade.

● Pumps and valves – erosion-resistant for corrosive fluids.

● Automotive and aerospace – lightweight and heat-resistant.

● Furnace hardware – they hold up at 1,200°C.

● Solar panel production – same toughness, clean operation.

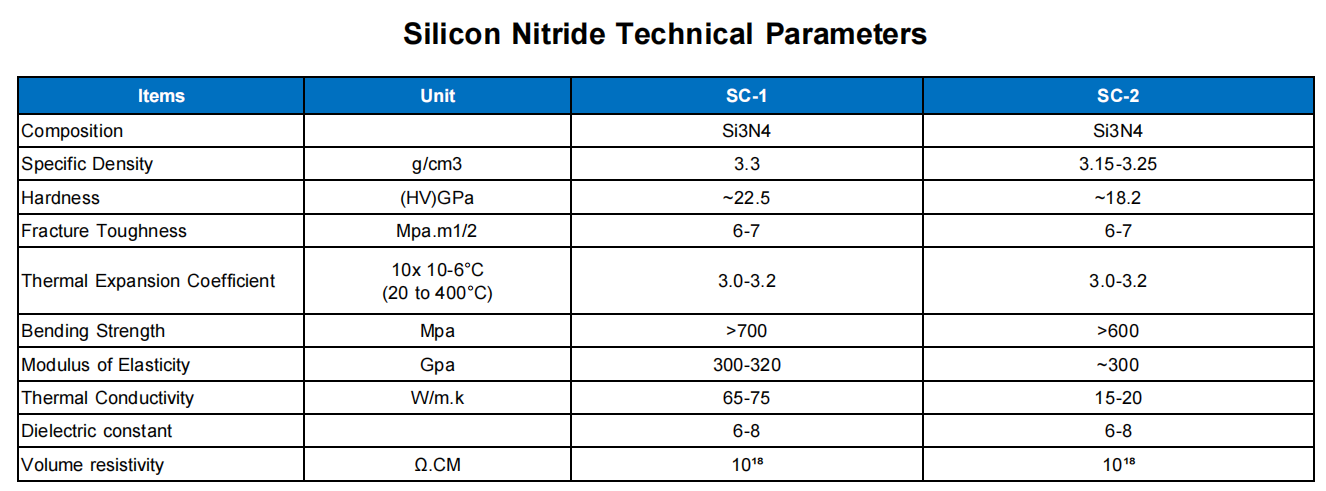

Typical Material Properties

Custom Manufacturing – We Work from Your Drawings

We don't just sell off-the-shelf parts. Most of our bushings and sleeves are made to order. You give us a drawing – CAD, STEP, IGES, or SolidWorks – and we'll machine the geometry you need.

We handle:

● Any shape – bushings, sleeves, tubes, rings, nozzles, spacers, structural parts.

● Prototypes, small batches, or full production runs – we're flexible.

● Custom dimensions and tolerances – just tell us what matters most.

Quality Checks at Every Step

We don't cut corners. Every batch goes through:

● Raw material verification – we track the source and purity.

● Dimensional inspection – make sure it matches the print.

● Surface finish measurement – smoothness counts.

● Density and mechanical testing – confirm the material performs.

● Final visual and packaging inspection – so it arrives ready to install.

Why Work with Semixlab?

● We use high-purity, semiconductor-grade silicon nitride.

● Our machining is precise – we've been doing ceramics for years.

● Batch-to-batch consistency – you get the same quality every time.

● Quick turnaround on prototypes and production orders.

● Full OEM/ODM support – we adapt to your design.

Get a Quote – Fast

Need silicon nitride bushings or sleeves for your next project? Send us your drawings or specifications. Our team will review them, suggest the best material grade, and get back to you with a competitive quote within 24 hours.

1. What makes silicon nitride better than alumina for my application?

Alumina is fine for static insulation, but if you have moving parts, high loads, or thermal cycling, silicon nitride wins. It's stronger, tougher, and much more resistant to thermal shock and wear.

2. Can you make custom bushing sizes?

Absolutely. We produce custom shapes and dimensions from your drawings. No minimum order for prototypes – we can make just one if that's what you need.

3. Which industries use these ceramic sleeves most often?

Semiconductor, solar, aerospace, automotive, vacuum equipment, and general high-temp machinery – any place where metal fails or alumina cracks.

4. Do you accept small prototype orders?

Yes. We support everything from a single prototype to high-volume production. Tell us your quantity, and we'll work out the best approach.
