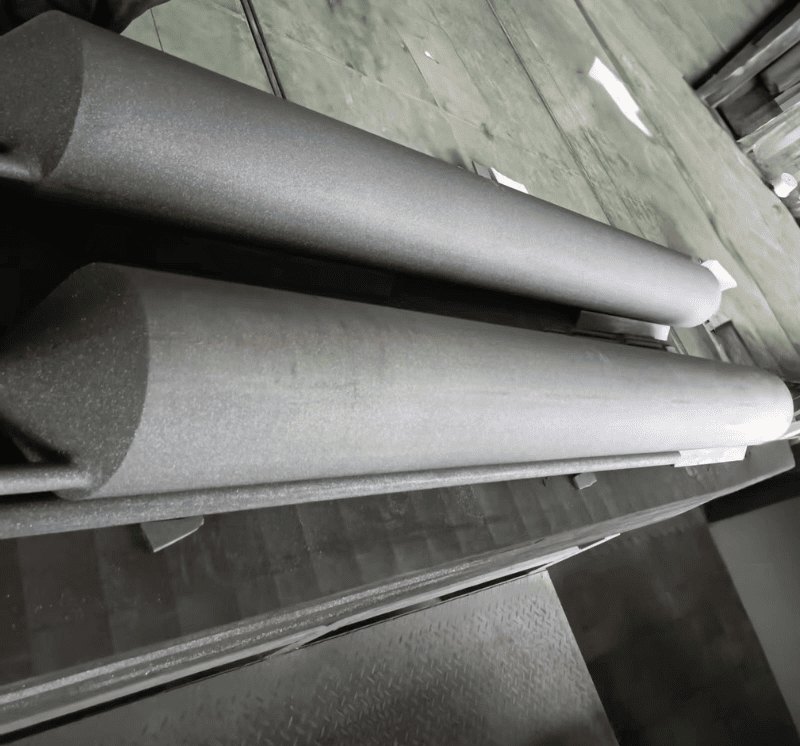

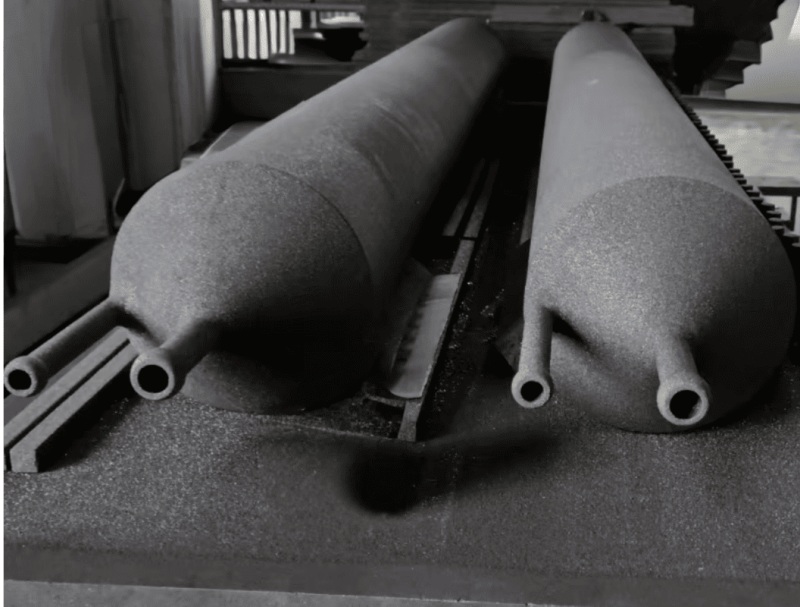

SiC Furnace Tube

Product Definition and Core Features

SiC furnace tube is a tubular high-temperature container made of high-purity silicon carbide ceramics through reactive sintering (RBSC) or chemical vapor deposition (CVD) processes. Unlike traditional metal or quartz materials, SiC's unique crystal structure gives it irreplaceable physical and chemical properties, allowing it to maintain excellent functional stability in extreme environments.

Core physical properties of the product:

● Ultra-high temperature tolerance: It can work stably for a long time at above 1600℃ in an inert atmosphere, and the safe use temperature in an oxidizing atmosphere is 1250-1300℃, far exceeding the limits of quartz tubes (≤1100℃) and heat-resistant alloys (≤1150℃).

● Thermal conductivity and thermal stability:

The thermal conductivity is as high as 100-200 W/m·K, which is more than 100 times that of quartz glass. It can achieve uniform heat distribution in the furnace (gradient ≤±2℃), eliminating the local hot spot problem common in traditional furnace tubes.

The thermal expansion coefficient is only 4.0×10⁻⁶/℃ (20-1000℃), combined with a high elastic modulus of 350 GPa, to ensure structural integrity during drastic temperature changes.

● Mechanical strength and wear resistance: Mohs hardness ≥9 (second only to diamond), bending strength 300 MPa, compressive strength 2000 MPa, resistance to particle erosion and mechanical stress.

● Chemical inertness: Resistant to strong acid corrosion such as HF and HCl, resistant to plasma etching, especially suitable for semiconductor dry etching environment.

Why choose Semixlab?

The Silicon Carbide Furnace Tubes we provide not only meet the extreme requirements of high temperature, high purity, corrosion resistance, etc. in semiconductor manufacturing, but also win the trust of customers through customized support, fast delivery and high-quality after-sales service.

Whether you are a wafer fab equipment engineer, laboratory researcher, or equipment integrator, we can provide reliable, durable and clean solutions for your high-end thermal treatment process. Welcome to contact us to start your new experience of high-performance thermal treatment.

Performance comparison of SiC furnace tubes and alternative materials:

Specific uses in semiconductor processing and manufacturing

SiC Furnace Tube plays an indispensable role in semiconductor processing and manufacturing, and its application covers multiple key process links:

● Diffusion Furnace:

Function: Diffusion furnace is the core equipment for doping, oxidation, annealing and other processes in semiconductor manufacturing. As the core liner of the diffusion furnace, SiC furnace tube provides a stable, pure, high-temperature reaction chamber for the wafer.

Advantages: The high purity and high temperature resistance of SiC ensure the minimization of impurities during the diffusion process and avoid contamination of the wafer. Its excellent thermal shock stability ensures the integrity of the furnace tube during the heating and cooling process, as well as the structural stability under long-term high-temperature operation, so as to achieve precise doping concentration and uniform oxide layer growth. This is essential for the manufacture of high-performance transistors and integrated circuits.

● PECVD (Plasma Enhanced Chemical Vapor Deposition)/LPCVD (Low Pressure Chemical Vapor Deposition) Equipment:

Function: In PECVD/LPCVD equipment, SiC furnace tubes are used as reaction chambers to deposit various thin films on the surface of wafers, such as silicon oxide, silicon nitride, etc.

Advantages: The corrosion resistance of SiC furnace tubes enables them to withstand the erosion of process gases (such as SiH4, NH3, N2O, etc.), ensuring the stability of the film deposition process and the quality of the film layer. Its high purity also prevents the film from being contaminated by the furnace tube material, ensuring the electrical and optical properties of the film layer.

● ALD (Atomic Layer Deposition) Equipment:

Function: ALD is a technology that can grow extremely thin and uniform films. SiC furnace tubes provide a stable and easy-to-clean reaction environment in ALD equipment.

Advantages: The SiC surface is not easy to adsorb reaction precursors. Its smooth surface and extremely high purity are conducive to atomic-level film growth control, ensuring film thickness uniformity and high repeatability.

● High temperature annealing furnace:

Function: High temperature annealing is a key step to eliminate wafer defects, activate dopants, and improve material properties.

Advantages: SiC furnace tubes can provide a stable ultra-high temperature environment to help wafers complete lattice repair and impurity activation, and improve the electrical performance and reliability of devices. Its excellent mechanical strength and thermal shock resistance also ensure that the furnace tubes are intact during frequent temperature increases and decreases.

● Other high temperature applications:

SiC Furnace Tube is also used in high temperature experimental furnaces, special material sintering furnaces, etc. in various R&D stages, providing a reliable high temperature environment for the development of cutting-edge semiconductor materials.

User concerns and solutions

1: Frequent equipment maintenance and easy rupture of quartz tubes?

Solution: Semixlab uses high-density silicon carbide ceramic tubes with excellent thermal shock resistance, which can significantly reduce maintenance frequency and downtime risks.

2: The product purity requirements are high, how to avoid secondary pollution?

Solution: Choose CVD SiC coating or high-purity dense SSiC tube, ultra-low metal impurity release, meet the ultra-clean process standards.

3: Is it difficult to purchase special sizes or interface structures?

Solution: We support drawing customization and composite structure processing (such as flange interfaces, step tubes, L-shaped bends, etc.) to meet your diverse and complex system integration needs.

4: How to solve the long delivery time and no after-sales guarantee?

Solution: As a leading manufacturer and supplier of SiC components in China, Semixlab has the following comprehensive advantages: stable production capacity + strict quality inspection + export packaging + technical support, which can guarantee delivery time and provide long-term cooperation trust.
