SiC cantilever paddle

Semixlab's SiC Cantilever Paddles are engineered to meet the most demanding environments in semiconductor manufacturing. We utilize high-purity Silicon Carbide (SiC), a material renowned for its exceptional physical properties that significantly outperform traditional alternatives.

Ⅰ. Key Physical Properties & Advantages:

●Ultra-High Temperature Resistance: Our SiC paddles operate stably at extreme temperatures of up to 1500°C and beyond, ensuring reliability and stability in high-temperature processes. This is crucial for equipment like diffusion and oxidation furnaces.

●Outstanding Thermal Shock Stability: SiC exhibits an extremely low coefficient of thermal expansion when exposed to rapid temperature changes, effectively preventing cracking and deformation caused by thermal stress and extending product lifespan.

●Exceptional Mechanical Strength & Rigidity: Our SiC paddles boast superior hardness and flexural strength, significantly reducing deformation under high-temperature loads and ensuring precise and stable wafer transfer.

●Ultra-Low Particle Contamination: The inherent low-shedding characteristics of SiC material, combined with our precise manufacturing processes, minimize particle generation, significantly reducing the risk of wafer contamination and improving yield.

●High Thermal Conductivity: SiC possesses good thermal conductivity, which aids in uniform heat distribution within the furnace, enabling more precise temperature control and consistent process outcomes.

Ⅱ. Semixlab: Your Expert for Custom SiC Cantilever Paddles

Semixlab understands the unique demands of semiconductor manufacturing. We don't just offer standard SiC cantilever paddles; we specialize in providing comprehensive customization services and exceptional customer support:

●Custom Design & Manufacturing: We can tailor-make SiC cantilever paddles to your specific equipment model, wafer size, process requirements, and furnace tube design. Whether you need special dimensions, shapes, hole patterns, or other functional requirements, we provide precise engineering solutions.

●Comprehensive After-Sales Service & Support: Semixlab is committed to long-term customer support. We offer installation guidance, usage and maintenance advice, and quick-response troubleshooting services to ensure your production line runs continuously and efficiently.

By utilizing Semixlab's SiC Cantilever Paddles, your semiconductor manufacturing processes will achieve higher efficiency, lower contamination, and more stable performance.

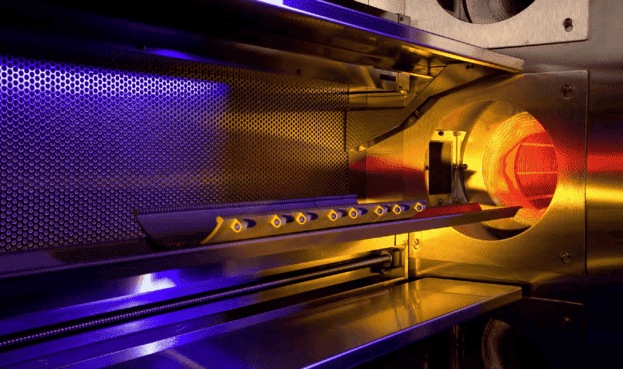

The Roles in Semiconductor Manufacturing

In core thermal processing steps of semiconductor manufacturing, such as diffusion furnaces and oxidation furnaces, SiC Cantilever Paddles play an indispensable role. They are critical carriers for precise, efficient, and contamination-free wafer handling and support.

1. Application in Diffusion Furnaces:

Diffusion furnaces are key equipment in semiconductor manufacturing used for doping and forming PN junctions. At high temperatures, impurity atoms diffuse into the wafer, altering its electrical properties.

●Precise Wafer Positioning & Transfer: Thanks to their high rigidity and low thermal expansion, SiC cantilever paddles ensure wafers are precisely carried and delivered to their designated positions within the high-temperature furnace. This prevents wafer slippage or deformation, guaranteeing consistency in the diffused layers.

●Reduced Particle Contamination: In the highly pure environment of diffusion, the extremely low particle shedding rate of SiC paddles is crucial for maintaining product yield. It effectively prevents particle contamination caused by traditional materials, thereby reducing defect generation.

●Extended Equipment Maintenance Cycles: The exceptional high-temperature and corrosion resistance of SiC paddles significantly extends their lifespan in diffusion furnaces, reducing replacement frequency and downtime, which lowers operational costs.

2. Application in Oxidation Furnaces:

Oxidation furnaces are used to grow thin oxide layers on the wafer surface, such as gate oxides or field oxides. These oxide layers are essential for isolating and protecting semiconductor devices.

●Wafer Support Under High-Temperature Stability: The oxidation process typically occurs in high-temperature, oxygen- or steam-rich environments. SiC cantilever paddles can withstand these extreme conditions, stably supporting wafers to ensure uniform oxide layer growth and consistent film thickness.

●Minimized Chemical Reactions & Contamination: SiC is highly inert to oxidizing atmospheres and will not chemically react with furnace gases, thus avoiding the introduction of additional impurities and ensuring the purity and electrical performance of the oxide film.

●Improved Process Repeatability: The excellent thermal shock stability and mechanical strength of SiC paddles guarantee consistent wafer conditions in each oxidation cycle, thereby improving process repeatability and yield.
