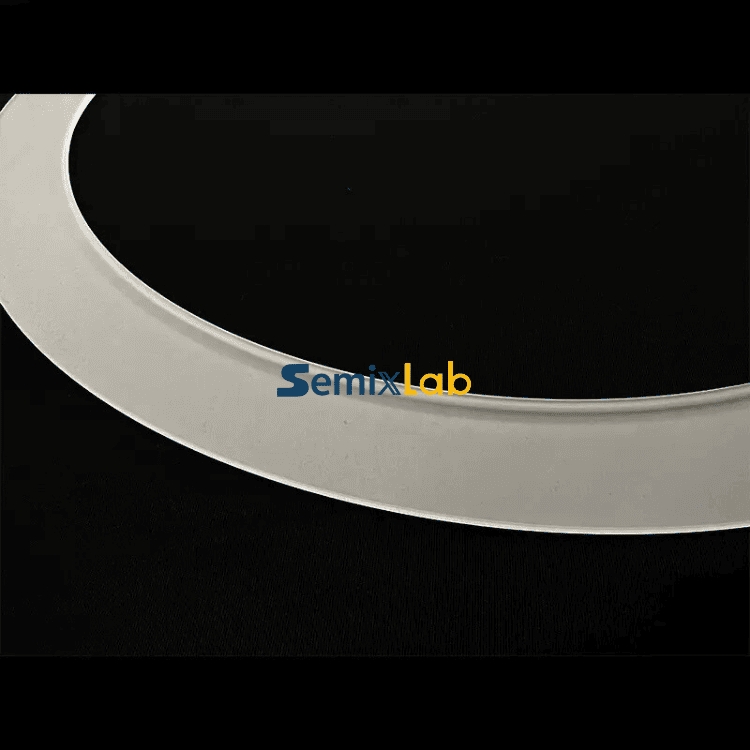

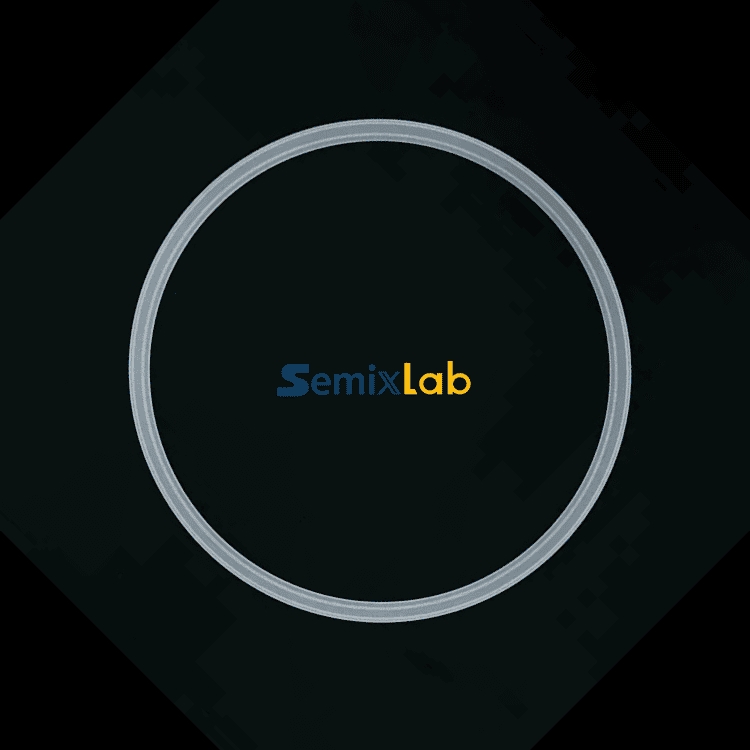

Semiconductor quartz ring

At Semixlab, we specialize in developing and manufacturing high-purity quartz components engineered for next-generation semiconductor processing environments. Among these, the Semixlab High-Purity Quartz Ring plays a critical role across multiple front-end wafer fabrication steps, where dimensional precision, chemical cleanliness, and thermal stability directly affect process performance and device yield.

In chemical vapor deposition (CVD) systems—including LPCVD, PECVD, and high-temperature SiC or Si epitaxy reactors—the quartz ring serves as a structural and functional interface between the susceptor and the reaction chamber. Its primary role is to isolate reactive gas flows, minimize parasitic deposition on chamber walls, and stabilize the thermal profile around the wafer. The exceptional thermal uniformity of Semixlab’s precision-polished quartz ensures consistent film thickness and superior surface quality across the wafer. The material’s optical transparency and infrared reflectivity can also be tailored to enhance heating efficiency and reduce temperature gradients within the deposition zone.

In plasma etching (Dry Etch) processes, the quartz ring acts as a protective barrier against plasma erosion and ion bombardment, shielding the chamber’s metallic surfaces from contamination and particle generation. Our high-density synthetic quartz, manufactured under tightly controlled impurity specifications (<1 ppm metallic contamination), maintains dimensional integrity even under prolonged exposure to aggressive fluorine- and chlorine-based plasmas. This significantly extends chamber component lifetime and helps maintain stable plasma distribution, a critical parameter for etch uniformity and CD (critical dimension) control.

Within oxidation and diffusion furnaces, Semixlab quartz rings function as precision alignment and insulation elements that support wafer boats and define the process gas flow path. Their ultra-low thermal expansion coefficient minimizes stress during repeated thermal cycling at temperatures exceeding 1000 °C. The result is improved process repeatability, reduced defectivity, and minimized risk of particle contamination in high-temperature oxidation or dopant diffusion steps.

For epitaxial growth processes, particularly in SiC epitaxy, the quartz ring contributes to temperature uniformity and chemical isolation. Positioned around the graphite or SiC-coated susceptor, it acts as a reflective and confinement component, shaping the gas boundary layer and improving dopant and thickness uniformity across the wafer surface. The combination of high thermal resistance, chemical inertness, and optical stability allows Semixlab quartz rings to maintain performance even at temperatures approaching 1600 °C in hydrogen-rich atmospheres.

Through decades of material science expertise and precision fabrication, Semixlab’s High-Purity Quartz Rings have become a trusted choice for global semiconductor manufacturers and equipment OEMs seeking enhanced reliability, purity, and process stability. Each component is engineered to SEMI standards, verified through ICP-MS elemental analysis, and processed in ISO-certified clean manufacturing environments. These attributes ensure that Semixlab quartz rings deliver consistent performance, minimize downtime, and help customers achieve tighter process control and higher device yield in advanced semiconductor manufacturing.
