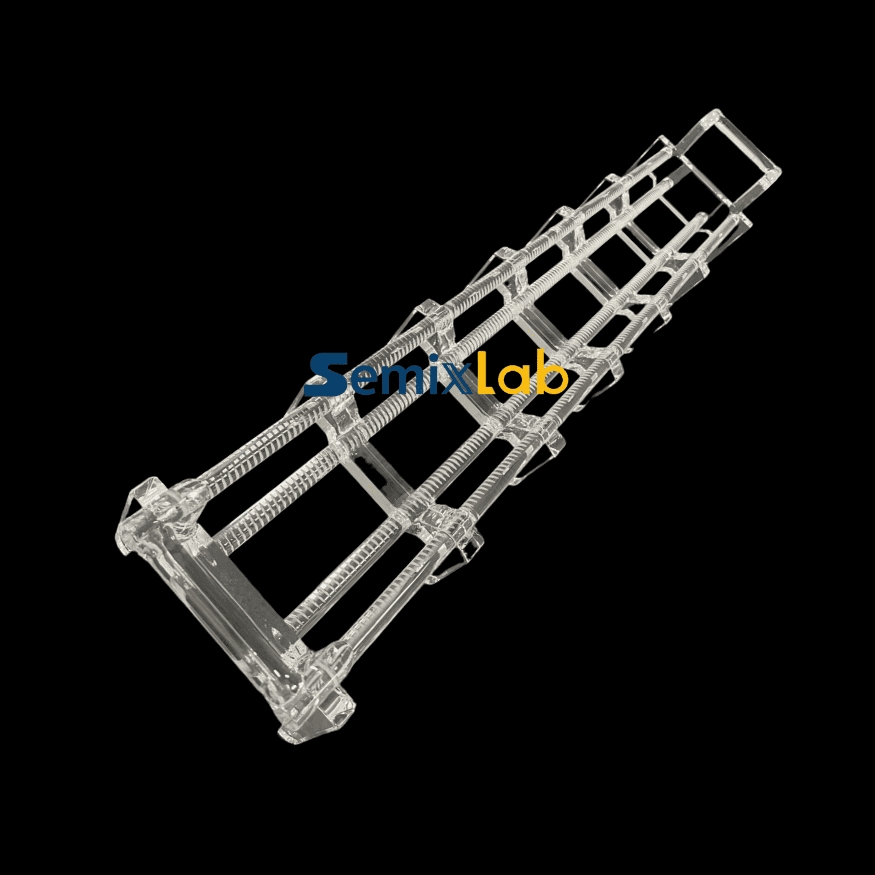

Semiconductor Fused Quartz Boat

Applications in Semiconductor Wafer Processing

Fused quartz boats play a critical role in semiconductor wafer processing, serving as precision carriers that support wafers during high-temperature thermal treatments such as oxidation, diffusion, LPCVD, and annealing. Their exceptional purity, chemical inertness, and thermal stability make them indispensable for maintaining process uniformity and minimizing contamination risks in advanced semiconductor fabrication lines.

1. Oxidation and Diffusion Processes

In thermal oxidation and diffusion furnaces, fused quartz boats are used to securely hold silicon wafers in a vertical or horizontal stack arrangement. These boats must withstand repeated exposure to temperatures exceeding 1000°C while maintaining dimensional stability and mechanical integrity.

Semixlab’s fused quartz boats exhibit outstanding resistance to thermal shock and deformation, ensuring consistent wafer spacing and optimized gas flow distribution throughout the furnace tube. This leads to uniform oxide layer growth and precise dopant diffusion.

2. LPCVD (Low Pressure Chemical Vapor Deposition)

During LPCVD processes, fused quartz boats are used as structural fixtures to transport and support wafers within vacuum chambers. The extremely low coefficient of thermal expansion (CTE) of Semixlab’s high-purity fused quartz helps prevent particle shedding and mechanical stress, which could otherwise lead to wafer breakage or film defects.

Additionally, the smooth and polished inner surfaces of Semixlab’s quartz boats minimize contamination by preventing unwanted particle accumulation, thereby maintaining clean chamber conditions for high-yield thin film deposition.

3. Annealing and Thermal Stabilization

In post-implantation annealing and gettering processes, quartz boats must tolerate rapid temperature changes while maintaining precise wafer alignment. Semixlab’s advanced quartz fabrication technology ensures that each boat maintains tight dimensional tolerances (<0.1 mm), preventing wafer slip and guaranteeing optimal temperature uniformity across the batch.

Semixlab Technical Advantages

●High mechanical strength and thermal stability

●Excellent resistance to HF,HCl, and oxidizing atmospheres

●Ultra-clean surface minimizes contamination and micro-particle release

●Optimized design ensures even wafer spacing and temperature control

●Extended service life under repeated thermal cycling

Semixlab’s fused quartz boats are trusted by semiconductor fabs worldwide for their outstanding thermal performance, purity, and durability, ensuring stable operation and superior wafer yield in critical high-temperature processes. We sincerely look forward to further cooperation with you.

Common Challenges and Solutions

Q1: How does Semixlab ensure the durability and dimensional stability of its fused quartz boats?

A1: Semixlab employs ultra-high purity fused silica with minimal OH content and precisely controlled microstructure. Each quartz boat undergoes advanced CNC machining and high-temperature annealing to eliminate internal stress, ensuring long-term dimensional stability even under extreme thermal gradients.

Q2: Can Semixlab customize quartz boats for different wafer sizes or reactor configurations?

A2: Absolutely. Semixlab provides full customization services, including designs for 6-inch, 8-inch, and 12-inch wafer processing systems. We can adapt the slot geometry, wall thickness, and thermal expansion tolerances based on specific diffusion or LPCVD reactor requirements.

Q3: How does Semixlab support customers in resolving process compatibility issues?

A3: Our engineering team offers pre-sale technical consultation and thermal simulation analysis to identify potential issues such as mismatched expansion coefficients or uneven heating zones. We collaborate closely with process engineers to deliver optimized quartz boat designs that enhance wafer yield and process repeatability.
