Quartz Tank for Wafer Processing
The Quartz Tank for Wafer Processing is a high-purity chemical container specifically designed for the wet etching and cleaning processes in semiconductor wafer fabrication. Manufactured from ultra-pure fused quartz (SiO2≥ 99.99%), it provides exceptional resistance to corrosive chemicals, high temperatures, and thermal cycling. In modern semiconductor fabs, quartz tanks are widely used for HF,HCI, HNOз,H₂SO4,H3PO4 KOH, and TMAH solutions, ensuring both process cleanliness and wafer yield stability.With superior chemical compatibility and mechanical strength, quartz tanks have become an indispensable component of wet stations and batch processing systems. Welcome for your consult.
Description
In the demanding world of semiconductor wafer manufacturing, every component is critical. Our Quartz Tanks for Wafer Processing are not just simple containers; they are the cornerstone of a stable, clean, and highly controlled Wet Etching Process. these tanks are meticulously engineered to meet the stringent requirements of advanced fabrication nodes, ensuring superior process control and maximum yield.
Key Functions in Wet Etching
Our quartz tanks are designed to be an indispensable part of your wet etching line. Their specific functions include:
● Enabling Ultra-High Purity Etching: As the primary vessel for various etchants like Hydrofluoric Acid (HF), Phosphoric Acid (H3PO4), and Nitric Acid (HNO3), our quartz tanks maintain the chemical integrity of the solution. The high-purity fused quartz prevents the leaching of metallic ions and other trace contaminants, which are notorious for causing device defects and impacting yield.
● Precision Temperature Management: Uniformity is paramount in wet etching. Our quartz tanks are equipped with advanced heating and cooling systems to maintain a stable, homogeneous solution temperature. This precise thermal control ensures a consistent etch rate across the entire wafer, critical for achieving tight process windows and superior device performance.
● Facilitating Particle-Free Environments: The smooth, non-porous surface of the quartz minimizes particle adhesion. This feature, combined with our tanks' compatibility with integrated filtration and recirculation systems, helps eliminate micro-contaminants that can lead to scratches or other physical damage on the wafer surface.
Semixlab Services & Customization
We understand that every fab has unique requirements. We offer a full suite of services to ensure our quartz tanks seamlessly integrate into your existing setup:
● Standard & Custom Sizes: We provide a range of industry-standard tank sizes as well as custom fabrication to meet your specific tool and process specifications.
● Integrated Solutions: Our tanks are designed to be compatible with a variety of process modules, including chemical management systems, heating/cooling units, and robotic wafer handling systems.
● Technical Support: With our two decades of experience, our team provides in-depth technical consultations and support, from initial design and installation to process optimization and troubleshooting.

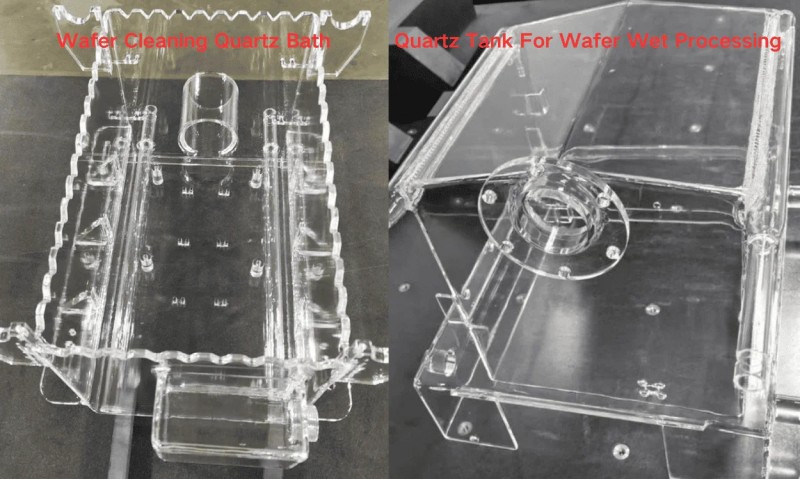

Semixlab products display:
Competitive Advantage
Physical Advantages of Quartz Tank
Semixlab's wafer processing quartz tanks are able to play a significant role in the wet etching process due to their following characteristics:
● Ultra-High Purity: ≥99.99% SiO2,eliminating risk of metallic contamination.
● Excellent Chemical Resistance: Stable in HF,HCI, H₂SOд, H₃PO4KOH, and other aggressive etchants.
● Thermal Stability: Withstands continuous operation at temperatures above 1000C.
● Low Thermal Expansion: Prevents stress cracks under rapid temperature changes.
● Smooth Surface Finish: Ensures minimal particle generation and supports uniform wafer processing.
● Durability: Long service life under corrosive and high-temperature environments.
