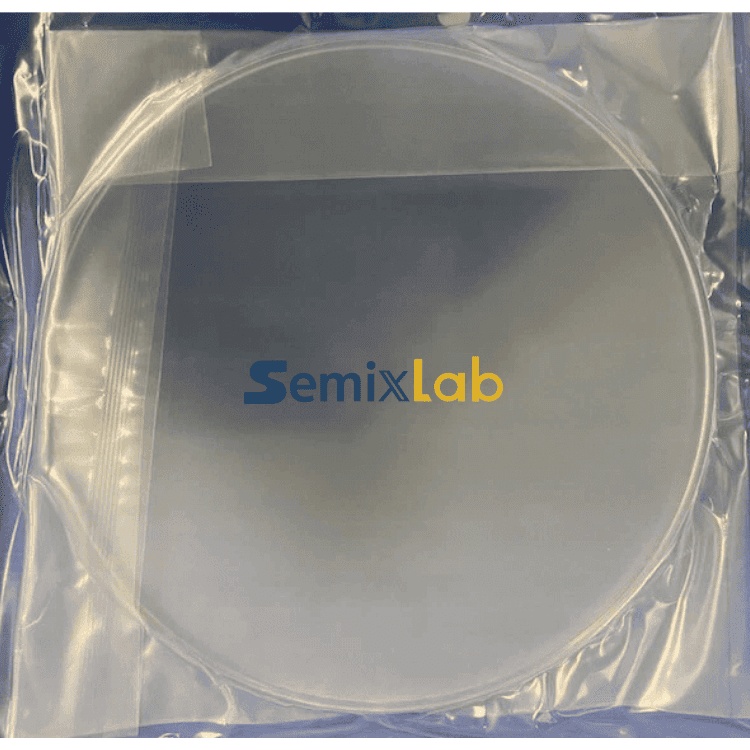

0200-09074 Quartz Heater Window

1. Product Overview

The AMAT 0200-09074 Quartz Heater Window is a high-purity fused quartz component designed for semiconductor processing equipment, primarily used in CVD (Chemical Vapor Deposition) and etch systems requiring precise thermal management.

As a critical interface between the heating system and the process chamber, this heater window enables efficient thermal energy transfer while maintaining strict isolation between process gases and external heating elements.

At Semixlab Technology, our quartz heater windows are manufactured using ultra-high-purity quartz materials, combined with precision machining and controlled surface finishing to ensure low contamination, high thermal stability, and long operational lifetime in demanding semiconductor environments.

2. Position in Equipment

The Quartz Heater Window is typically installed between the external heating source (such as IR lamps or resistive heaters) and the internal process chamber.

Typical configuration:

● Located above or below the wafer processing zone

● Positioned directly in the thermal radiation path

● Serves as a sealed barrier between:

Heating module (outside)

Process chamber (inside)

Structural role:

● Acts as a transparent thermal transmission interface

● Maintains chamber integrity under vacuum or controlled atmosphere conditions

This positioning makes it a critical component influencing both thermal delivery and contamination control.

3. Core Functions & Process Impact

The AMAT 0200-09074 Quartz Heater Window performs multiple essential roles that directly affect process stability, film quality, and yield performance.

✔ Thermal Energy Transmission

● Enables efficient transmission of infrared (IR) radiation from the heater to the wafer

● Supports precise wafer temperature control during deposition or etching

✔ High IR transmittance of quartz ensures minimal energy loss and stable heating performance

✔ Thermal Uniformity Control

Contributes to uniform heat distribution across the wafer surface

Reduces temperature gradients that can lead to:

● Film thickness variation

● Process non-uniformity

✔ Process Isolation

Physically separates the heating system from reactive process gases

Prevents:

● Corrosive gas backflow

● Contamination of heater components

✔ Contamination Reduction

● High-purity quartz minimizes impurity release at high temperatures

● Smooth surface reduces particle adhesion and accumulation

✔ Process Stability Enhancement

● Maintains consistent thermal conditions across multiple process cycles

● Supports repeatable deposition rates and film properties

4. Typical Failure Modes & Maintenance Considerations

Due to continuous exposure to high temperatures, reactive gases, and thermal cycling, quartz heater windows are subject to gradual degradation. Understanding failure mechanisms is critical for optimizing maintenance strategies and minimizing yield loss.

① Thermal Shock Cracking

Caused by rapid temperature changes during process cycling

Leads to:

● Micro-cracks

● Structural weakening or breakage

② Devitrification (Quartz Crystallization)

Prolonged exposure to high temperatures causes quartz to lose its amorphous structure

Results in:

● Reduced optical transparency

● Lower IR transmission efficiency

③ Deposition Build-up

Accumulation of process by-products (e.g., films, polymers) on the surface

Alters:

● Optical properties

● Heat transfer efficiency

④ Chemical and Plasma-Induced Corrosion

Exposure to reactive gases (e.g., fluorine-based chemistries, NH₃)

Causes surface roughening and material degradation

⑤ Particle Generation

Resulting from:

●Surface degradation

● Micro-cracking

● Film flaking

Impact of Failure

● Temperature non-uniformity

● Film thickness variation

● Increased particle defects

● Reduced process repeatability

● Higher maintenance frequency and downtime

Semixlab Technology provides optimized quartz heater window solutions with:

● Ultra-high-purity quartz materials for minimal contamination

● Precision machining and tight tolerances for perfect system compatibility

● Enhanced surface quality to reduce deposition and particle adhesion

● Optional lifetime optimization solutions based on process conditions

Semixlab Technology offers reliable, high-performance quartz heater window solutions tailored to your specific application needs. Contact us today to optimize your process performance.
