Quartz flange for semiconductor process
Quartz flanges are precision-engineered components widely used in semiconductor process equipment. Made from high-purity fused quartz, they provide reliable sealing, thermal stability above 1000 °C, and excellent resistance to corrosive process gases and chemicals. Their inert nature minimizes contamination risk, making them suitable for CVD (Chemical Vapor Deposition), Oxidation, Diffusion, Annealing and Etching & Cleaning Process applications.
Description
Quartz flanges are vital in semiconductor processes,providing sealing, gas flow control, and thermal stability.
Applications
The Role and Application of Quartz Flanges in Semiconductor Processing
1. CVD (Chemical Vapor Deposition) Process

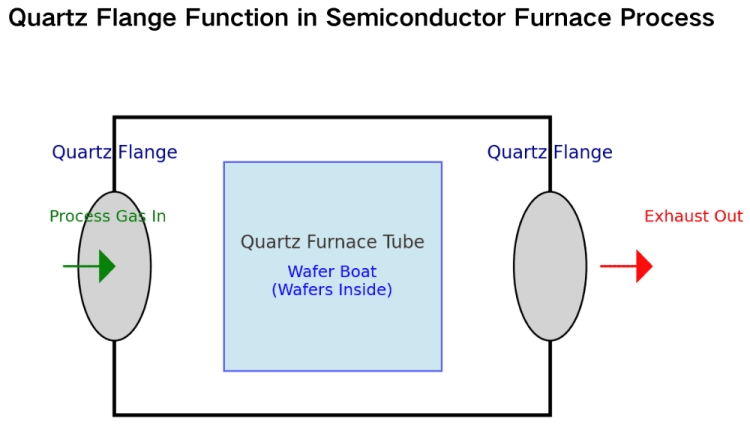

●Purpose: In a CVD reaction chamber, a quartz flange seals the interface between the quartz tube and the metal chamber, ensuring uniform flow of process gases within the reaction zone while preventing air from entering and maintaining a vacuum environment.
●Application: Prevents deposition gas leakage, ensuring film uniformity and deposition quality. High-temperature resistant quartz material can withstand process temperatures ranging from hundreds to thousands of degrees Celsius.
2. Oxidation Furnace Process
●Purpose: A quartz flange connects the quartz tube to a quartz boat or support structure, creating the enclosed space required for high-temperature oxidation.
●Application: Ensures stable distribution of oxygen or water vapor within the chamber, thereby forming a uniform oxide layer on the silicon wafer surface. The thermal stability of the quartz flange ensures a good seal through multiple thermal cycles.
3. Diffusion Furnace Process
●Purpose: In a diffusion tube furnace, quartz flanges are used to secure the furnace tube and seal the process gas, ensuring that dopant gases (such as B₂H₆ and PH₃) only reach the wafer within the tube.
●Application: Ensure uniformity during the gas diffusion process, prevent safety risks from gas leaks, and reduce particle contamination.
4. Annealing Process
●Purpose: Quartz flanges ensure the airtightness of the annealing chamber, preventing the ingress of external oxygen or moisture, thereby preventing contamination and unnecessary oxidation of the wafer surface.
●Application: In conjunction with inert gases (such as N₂ and Ar) in high-temperature environments, they maintain a pure atmosphere during the annealing process, helping to eliminate defects and improve wafer performance.
5. Etching & Cleaning Process
●Purpose: Quartz flanges are also used to seal the chamber in some wet or dry cleaning/etching equipment.
●Application: To ensure that corrosive gases or liquids (such as HCl, NF₃, HF) act only in the designated cavity, avoid leakage, extend equipment life, and reduce corrosion to surrounding components.
Quartz Flange in Semiconductor Process - Challenges &Solutions
| Challenges | Solutions | Benifits |
Thermal Stress &Cracking Cracks caused by thermal cycling,reduced lifetime | - Use high-purity opaque quartz to disperse stress - Optimize flange structure and thickness - Control heating/cooling rates | - Extended service life - Lower risk of leakage and failure due to cracks |
Particle Contamination Particles detaching andcontaminating wafers | - Use ultra-high purity quartz (>99.99% SiO2) - Precision surface polishing - Optimized gas flow design - Regular maintenance and replacement | - Reduced particle defects - Improved yield and process stability |
Chemical Corrosion & Surface Degradation Corrosive gases roughen thesurface and weaken strength | - Use corrosion-resistant purified quartz - Surface protection & improved smoothness - Strict control of process atmosphere | - Enhanced corrosion resistance - Minimized surface degradation & particle generation - Long-term flange reliability |
Vacuum Integrity Loss Loss of sealing performance,unstable process environment | -High-precision machining of sealing surfaces - Use high-temperature resistant O-rings - Regular helium leak testing | - Maintained chamber purity - Higher process repeatability & film uniformity - Reduced maintenance risk |
By combining high purity, dimensional accuracy, and long-term durability, Semixlab quartz flanges ensure stable process environments and consistent wafer quality. Their use contributes to extended equipment uptime, reduced maintenance frequency, and enhanced reliability across critical semiconductor manufacturing steps. Semixlab offers advanced solutions with high-purity quartz, optimized designs, and precision sealing to ensure long-term reliability, reduced defects, and improved wafer yield. We are looking forward to your further consultation and cooperation.
