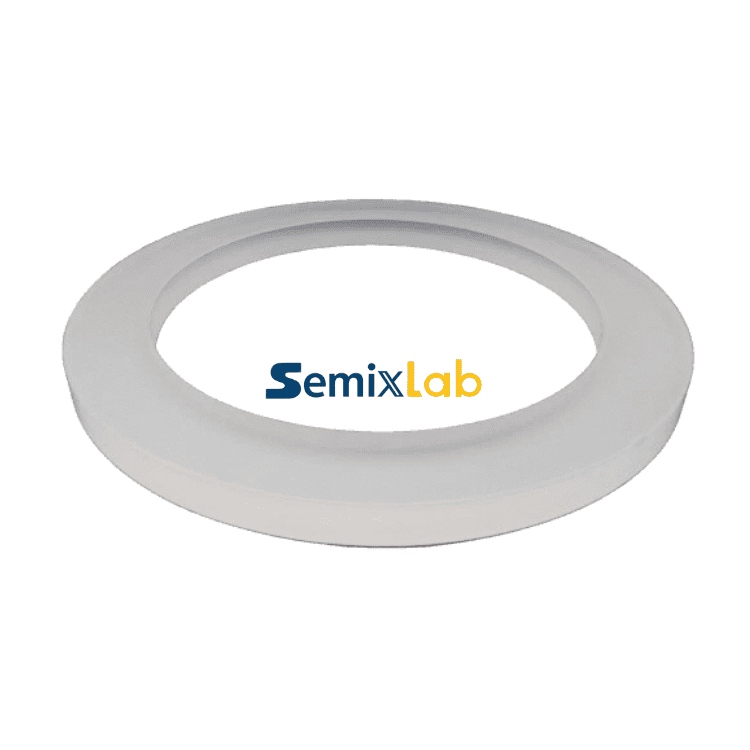

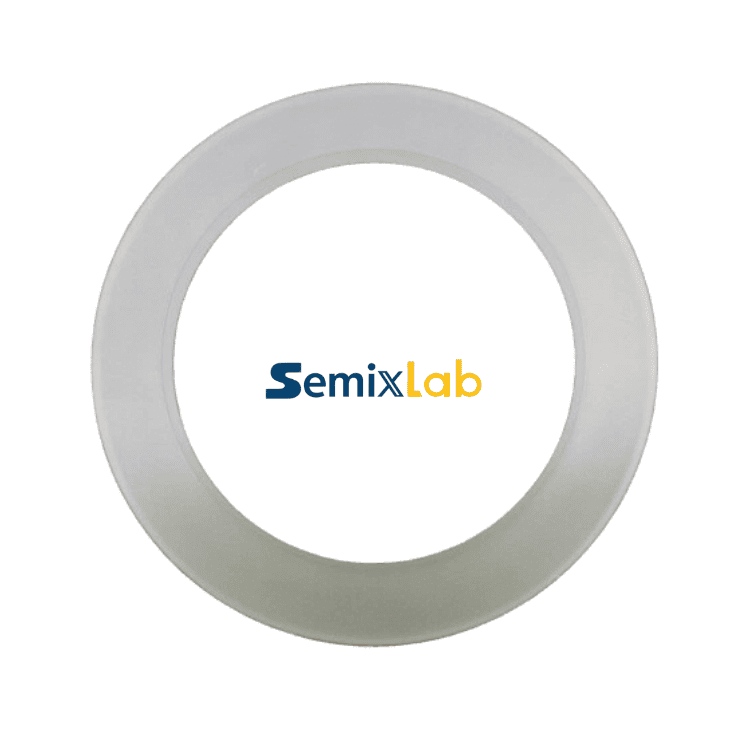

Quartz Cover Pedestal 150mm 0200-09734

At Semixlab, we provide high-precision semiconductor chamber components compatible with leading OEM platforms. The Quartz Cover Pedestal 150mm is a critical structural consumable used in 150mm wafer process chambers, designed to ensure process stability, plasma control, and contamination protection in advanced thin-film and etch systems.

The Quartz Cover Pedestal 150mm is a high-purity quartz chamber component used in Applied Materials 150mm process equipment. It functions as a protective cover or structural enclosure around the wafer pedestal area inside the process chamber.

This component is not part of the wafer handling mechanism itself, but rather a critical internal chamber structure part that helps define the process environment during deposition or etching steps. It plays an essential role in maintaining chamber integrity and process repeatability in mature semiconductor manufacturing platforms.

Position and Functional Role in the Equipment

Inside AMAT 150mm process chambers, the quartz cover pedestal is typically installed around or above the wafer pedestal region, forming part of the internal reaction chamber geometry.

Its key functions include:

● Physical protection of the pedestal region from direct plasma exposure

● Contamination isolation, preventing metal parts from being exposed to reactive plasma environments

● Plasma and gas flow shaping, contributing to uniform distribution across the wafer surface

● Edge process stabilization, supporting uniform film deposition and etch consistency

In practical operation, this component acts as a passive but critical geometry-defining structure that directly influences process uniformity and chamber cleanliness.

Key material advantages include:

● Excellent thermal stability under high-temperature process conditions

● Low particle generation, supporting high-yield manufacturing environments

● High chemical purity, minimizing metallic contamination risks

● Good resistance to plasma environments, especially in oxide and fluorine-based chemistries

● Dimensional stability, ensuring consistent chamber geometry over time

However, quartz is also a consumable material in plasma environments, as it gradually undergoes surface modification and etching under long-term process exposure.

Common Failure Modes

Like most quartz-based chamber components, the 0200-09734 cover pedestal is a consumable part with a defined lifecycle. Common degradation modes include:

● Plasma-induced surface erosion, especially in fluorine-rich chemistries

● Surface whitening or haze formation, indicating material modification over time

● Micro-crack development due to thermal cycling stress

● Particle generation caused by surface devitrification or structural weakening

● Deposition buildup leading to contamination and process drift

These failure mechanisms typically result in increased particle levels, reduced process stability, and ultimately the need for scheduled preventive replacement.

Why Choose Semixlab?

Semixlab focuses on high-performance semiconductor chamber consumables and precision ceramic/quartz components for advanced wafer processing systems. Our components are engineered to support high purity, long service life, and process stability in demanding semiconductor manufacturing environments.

We emphasize engineering accuracy, material consistency, and OEM-level compatibility, helping customers maintain stable production performance in both legacy and advanced process nodes.

Typical Application in AMAT 150mm Process Platforms

The quartz cover pedestal is widely used in legacy and mature-node 150mm equipment platforms, particularly in:

● PECVD (Plasma Enhanced Chemical Vapor Deposition) chambers

● Oxide deposition process modules

● Dry etch chamber configurations

● Centura and P5000 series 150mm systems

● Legacy Producer platform variants supporting 150mm wafers

Within these systems, it contributes to process chamber stability, uniform film deposition, and plasma confinement control, which are essential for maintaining yield consistency in older-generation semiconductor production lines.
