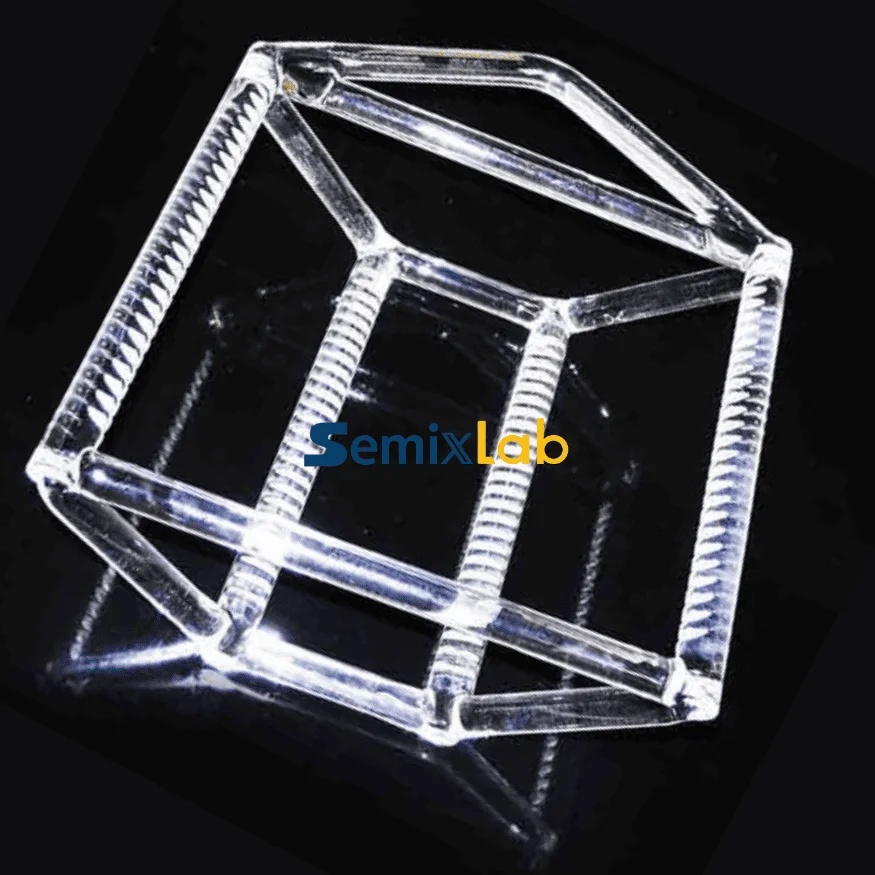

Quartz Boat for Diffusion of Wafer Processing

Our Quartz Boat is a high-purity fused silica wafer carrier specifically engineered for diffusion processes in semiconductor manufacturing. Designed to withstand high temperatures and aggressive process environments, it provides stable mechanical support while minimizing contamination, ensuring optimal performance during wafer processing.

Improve Diffusion Uniformity in Wafer Processing

Achieving uniform dopant distribution across all wafers in a diffusion process is critical for semiconductor device performance and yield. Diffusion uniformity depends on temperature control, gas flow dynamics, wafer positioning, and material compatibility. Below is a detailed technical analysis of key factors and solutions:

1. Optimized Thermal Management

Problem: Uneven temperature distribution across wafers or within a furnace tube creates variable diffusion rates, leading to radial or axial concentration differences.

Solution:

● Use high-purity quartz boats with precise slot spacing to minimize thermal gradients.

● Implement multi-zone furnace control to fine-tune temperature along the length of the diffusion tube.

● Gradually ramp-up and ramp-down temperatures to reduce thermal shock and localized hot spots.

2. Controlled Gas Flow and Dopant Delivery

Problem: Non-uniform gas flow leads to varying dopant concentration at different wafer positions, causing inconsistent junction depths.

Solution:

● Design boat slots and wafer spacing to promote laminar gas flow around each wafer.

● Adjust gas inlet/outlet positions and flow rates to eliminate dead zones and turbulence.

● Regularly clean boats to prevent surface deposits that can block gas channels.

3. Wafer Positioning and Load Configuration

Problem: Improper wafer stacking or orientation can cause shadowing effects and non-uniform exposure to diffusion gases.

Solution:

● Maintain consistent slot spacing based on wafer size and furnace diameter.

● Avoid overloading the boat; maintain optimal wafer-to-wafer distances.

● Rotate or flip wafers in multi-batch processes if necessary to balance exposure.

In diffusion wafer processing, Quartz Boats play a multi-functional role--from precise mechanical support, uniform thermal management, controlled gas exposure, contamination reduction, to enabling high-throughput batch processing. Proper boat selection,maintenance, and alignment are essential to ensure consistent diffusion profiles, high yield, and device reliability. Semixlab welcomes your customized product demand consultation.

Applications of Quartz Boats in Diffusion Processes

Quartz Boats are more than simple wafer holders in diffusion processes; their design and material properties directly affect wafer quality, dopant uniformity, and yield. Below is a detailed breakdown of their key applications:

1. Mechanical Support and Precise Wafer Positioning

Quartz Boats provide stable vertical support for multiple wafers, preventing bending, sliding, or warping during high-temperature diffusion cycles.

Slot Design and Alignment: Each slot is engineered to maintain a consistent wafer-to-wafer spacing, crucial for batch processing. Correct spacing ensures:

2. Thermal Management

Quartz’s low thermal expansion and high thermal stability allow it to maintain structural integrity at temperatures typically ranging from 800°C to 1,200°C.

Uniform Heat Distribution: The boat’s geometry and quartz’s high thermal resistivity help maintain even wafer surface temperature across the entire batch, which directly impacts dopant diffusion profiles.

3. Gas Flow Facilitation and Dopant Distribution

The design of quartz boats ensures laminar flow of process gases around each wafer, preventing dead zones and local concentration imbalances.

Proper spacing allows even exposure to oxidizing or dopant gases, ensuring uniform junction depth and consistent electrical characteristics.

4. Contamination Prevention

Quartz is chemically inert at high temperatures, minimizing metallic contamination and particulate generation, which are common yield-limiting factors in diffusion processes.

Surface Integrity: Smooth and defect-free slot surfaces reduce particle shedding. Coating or polishing may be applied for extended lifetime in aggressive processes.

5. Batch Throughput and Process Efficiency

Quartz Boats are engineered to maximize the number of wafers per batch without compromising thermal uniformity or gas flow.This allows higher throughput, critical for high-volume semiconductor manufacturing.
