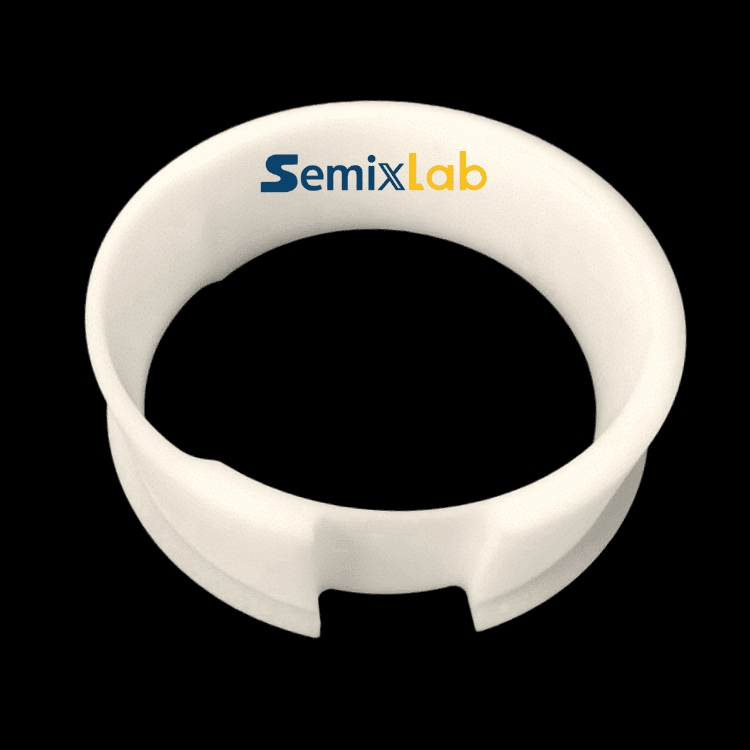

Opaque quartz flange ring

The Opaque Quartz Flange Ring is a critical component widely used in semiconductor manufacturing processes such as CVD (Chemical Vapor Deposition), oxidation, diffusion, annealing, and vacuum processing. Its unique opaque quartz material, with a micro-bubble structure, offers superior thermal insulation and stability in high-temperature and high-purity environments.

Key Functions & Uses

1. Airtight and Support Function

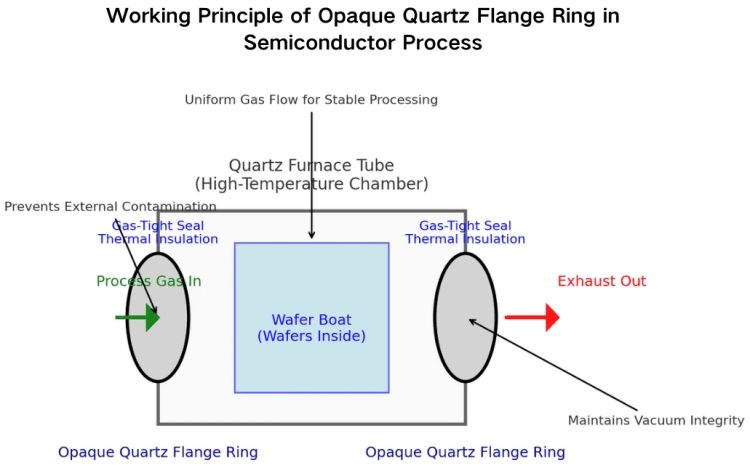

In semiconductor equipment, opaque quartz flange rings are often used as flange sealing components in conjunction with chambers or quartz tubes to ensure the airtightness of the reaction chamber, preventing external gas infiltration or reaction gas leakage. Their mechanical strength and high-temperature stability make them suitable as load-bearing or support components, ensuring the stability of the process chamber.

2. Thermal Isolation and Temperature Uniformity Function

Opaque quartz has an inherent bubble structure, providing excellent thermal insulation properties. In CVD or oxidation furnace processes, flange rings act as thermal barriers, reducing heat conduction and dissipation, thereby improving temperature uniformity within the chamber. This is crucial for consistent film thickness and quality control during wafer deposition and oxidation processes.

3. Contamination Resistance and Chemical Stability

Quartz material is inherently high-purity and chemically inert. It releases no impurities at high temperatures, preventing metal ion or particle contamination of the silicon wafer. As a chamber interface component, the opaque quartz flange ring effectively isolates the process area from the external environment, reducing the ingress of external impurities.

4. Structural Positioning and Assembly

As a flange structure, it can be used to position quartz tubes, quartz boats, or other load-bearing components, ensuring the concentricity and stability of process equipment. It also facilitates assembly with metal flanges or quartz tubes, improving equipment maintainability and durability.

Semixlab Solutions to Common Challenges

At Semixlab, we understand the challenges our customers face when using Opaque Quartz Flange Rings in demanding semiconductor processes. From my perspective as a manufacturer, here is how we address the four most common issues:

1. Thermal Stress and Cracks

The rapid heating and cooling can create severe thermal stress, leading to cracks in quartz components. To prevent this, we use high-purity opaque quartz with excellent thermal shock resistance, and apply annealing treatment to release residual stress before shipment. In addition, we optimize the flange design with smooth transitions and reinforced edges, minimizing stress concentration and extending service life.

2. Particle Contamination

The contamination control is to wafer yield. To address this, we employ ultra-precise surface polishing to minimize particle generation, followed by ultrasonic pure-water cleaning and high-purity nitrogen drying before delivery. We also provide maintenance and cleaning recommendations to help our customers maintain long-term cleanliness during actual operation.

3. Chemical Corrosion and Surface Degradation

The corrosive gases such as HCl, NF₃, and O₂ can gradually degrade quartz surfaces, reducing dimensional accuracy and sealing performance. To overcome this, we select ultra-high-purity quartz (>99.99% SiO₂) and offer CVD SiC coating solutions for customers working in highly corrosive environments. This significantly enhances surface stability, reduces chemical erosion, and extends replacement cycles.

4. Decline in Gas Tightness

vacuum integrity is essential in deposition and diffusion processes. Over time, sealing surfaces may wear out, causing micro-leaks. To prevent this, we enforce strict dimensional tolerances and high-precision polishing, ensuring perfect compatibility with quartz tubes and metal flanges. Furthermore, we provide customized flange designs that guarantee reliable sealing performance under high-temperature and vacuum conditions.
