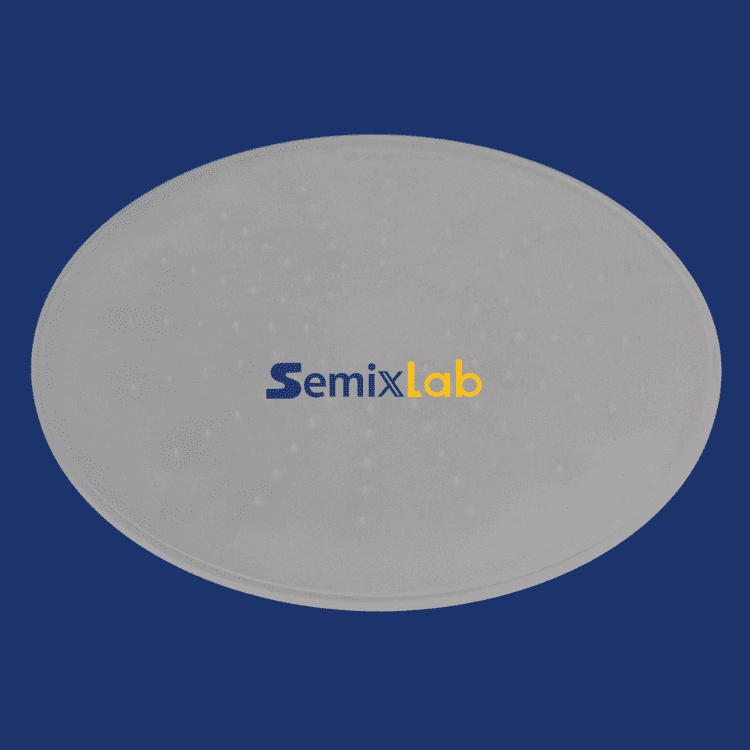

0200-10246 Quartz GDP (Gas Distribution Plate)

The AMAT 0200-10246 Quartz GDP (Gas Distribution Plate) is a high-precision fused quartz component designed to deliver uniform gas distribution and controlled plasma interaction in semiconductor processing equipment. Commonly configured as a Uni-Insert liner with an 88-hole pattern, it functions as a critical interface between process gas delivery systems and the plasma reaction zone.

Engineered for advanced plasma etch and CVD applications, this component operates under extreme conditions, including:

● High-energy plasma exposure

● Reactive process gases (e.g., fluorine- and chlorine-based chemistries)

● High ताप thermal cycling environments

● Tight process uniformity requirements

Unlike passive chamber protection parts, the Quartz GDP is a process-critical component that directly influences gas flow uniformity, plasma density distribution, and critical dimension (CD) control.

At Semixlab Technology, our Quartz GDP inserts are manufactured using ultra-high purity fused quartz, combined with precision hole machining and strict quality control, ensuring consistent and repeatable performance in demanding semiconductor processes.

Position in Equipment and Functional Roles

Installation Position

The Quartz GDP is typically installed:

● At the top assembly of the process chamber

● Within or beneath the showerhead structure

● Directly above the wafer surface, facing the plasma zone

It acts as the primary interface for gas introduction into the plasma region.

Core Functions

1. Uniform Gas Distribution (Primary Function)

● The 88-hole precision pattern ensures:

● Even distribution of process gases across the wafer

● Controlled gas flow rate and direction

Result: Enhanced plasma uniformity and consistent etch/deposition rates across the wafer.

2. Plasma Formation and Stability Control

By regulating how gases enter the plasma region, the GDP:

● Influences plasma ignition and sustainment

● Shapes plasma density distribution

Impact: Improved process stability and reduced variation between wafers.

3. Process Uniformity and CD Control

The geometry and hole design directly affect:

● Ion and radical distribution

● Reaction kinetics at the wafer surface

Benefit: Optimized etch profile, CD uniformity, and wafer-to-wafer repeatability.

4. Chamber Protection and Contamination Control

As a quartz liner, the GDP also:

● Shields metal showerhead components from plasma exposure

● Reduces metallic contamination risks

Common Failure Modes

Due to its direct exposure to plasma and reactive gases, the Quartz GDP is subject to several performance-limiting degradation mechanisms:

1. Hole Clogging (By-product Deposition)

● Polymer or reaction by-products accumulate inside holes

● Reduced or uneven gas flow

Impact: Loss of gas distribution uniformity and process instability.

2. Plasma-Induced Erosion

● Ion bombardment enlarges hole diameters

● Surface roughening alters flow dynamics

Impact: Changes in plasma density distribution and CD drift.

3. Flaking and Particle Generation

● Deposited films peel off over time

● Particles enter the chamber environment

Impact: Increased defect density and yield loss.

4. Thermal Stress Cracking

● Repeated thermal cycling causes micro-cracks

● Structural integrity weakens over time

Impact: Component failure and unexpected downtime.

5. Gas Flow Drift

● Long-term wear alters internal geometry

● Gradual shift in gas flow distribution

Impact: Subtle but critical process drift, difficult to diagnose.

Why Choose Semixlab Technology?

With extensive experience in semiconductor materials and precision quartz fabrication, Semixlab Technology delivers high-performance Quartz GDP solutions tailored for advanced plasma environments:

● Ultra-High Purity Quartz: Ensures low contamination and stable plasma interaction.

● Precision Multi-Hole Machining: Accurate hole size, spacing, and geometry for optimal gas distribution.

● Surface Optimization: Minimizes particle generation and enhances process cleanliness.

● Extended Lifetime Performance: Improved resistance to plasma erosion and thermal stress.

● OEM-Compatible Design: Seamless integration with AMAT systems and process conditions.

The AMAT 0200-10246 Quartz GDP is widely used in:

● Applied Materials 200mm plasma etch systems

● CVD and PECVD process chambers

● High-uniformity semiconductor fabrication processes

It is especially critical in applications requiring tight process control, including:

● Advanced node etching

● Power semiconductor manufacturing (SiC, IGBT)

● MEMS and specialty device fabrication
