Customized Quartz Wafer Carrier
The Customized Quartz Wafer Carrier from Semixlab Semiconductor is a precision-engineered solution for ultra-clean wafer processing in high-temperature semiconductor environments. Made from high-purity fused silica, it's engineered for oxidation, diffusion, LPCVD, and annealing furnaces, the carrier ensures optimal wafer alignment, uniform temperature distribution, and minimal particle contamination. Its custom geometry supports controlled gas flow and precise thermal equilibrium, delivering superior process uniformity and yield.
Description
In advanced semiconductor manufacturing, the Customized Quartz Wafer Carrier designed and engineered by Semixlab serves as a precision-built platform that ensures stability, purity, and dimensional accuracy throughout critical thermal and deposition processes. Fabricated from high-purity fused quartz, the carrier exhibits exceptional resistance to thermal deformation, chemical corrosion, and particle generation, enabling consistent wafer integrity under extreme process conditions.
Within oxidation, diffusion, LPCVD, and annealing environments, the quartz wafer carrier functions as the mechanical and thermal backbone of wafer batch processing. Its transparent, low-expansion structure allows wafers to be uniformly supported while maintaining excellent temperature uniformity across multiple wafer planes. The open-frame architecture facilitates laminar gas flow and controlled thermal convection, minimizing localized turbulence that can lead to film non-uniformity or dopant concentration variations. Through optimized slot geometry and precise wafer spacing, the carrier helps achieve uniform deposition profiles and repeatable process results across the entire batch.
In high-temperature oxidation or diffusion furnaces, the quartz carrier isolates the silicon substrates from metallic contamination and outgassing that may arise from alternative support materials. The high-purity SiO₂ matrix, virtually free of alkali metals and mobile ions, prevents trace metal migration that could degrade device electrical performance. Additionally, the mechanical stability of fused quartz under repetitive thermal cycling ensures long-term dimensional consistency, thereby reducing wafer edge stress and mechanical damage during insertion and withdrawal cycles.
The carrier’s custom-engineered configuration also contributes to improved process throughput and yield optimization. By tailoring the design to specific reactor geometries and process chemistries, Semixlab enables precise control of wafer pitch, flow dynamics, and radiant heating balance.
In essence, Semixlab Customized Quartz Wafer Carrier is not a passive fixture, but an integral component of the process environment—one that defines wafer alignment, thermal equilibrium, and contamination control. Its refined material quality and engineering precision transform it into a critical enabler for next-generation semiconductor fabrication, ensuring each wafer receives the same controlled, contamination-free thermal exposure required for sub-nanometer process consistency.

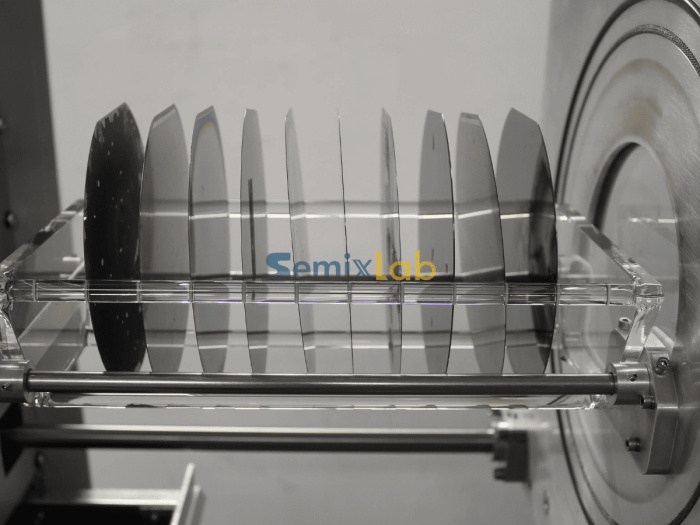

Customized Quartz Wafer Carrier working scenario
