PG-Coated Graphite Ring

If you’ve ever run a SiC crystal growth furnace, you know that small parts can make a big difference. The PG-coated graphite ring is one of those parts – tucked into the hot zone of a PVT system, it helps keep temperature profiles stable, improves run-to-run consistency, and cuts down on contamination during those long, expensive growth cycles.

We start with high-purity graphite and give it a dense pyrolytic graphite (PG) coating. Compared to plain graphite, the coated version conducts heat better, resists chemical attack, and sheds far fewer particles. And as SiC wafer makers push toward larger crystals and higher throughput, these rings have become a go-to consumable – not just for performance, but for keeping multiple furnaces running with reproducible results.

What stands out?

High-purity PG layer – The coating has a well-ordered carbon structure that stays clean and stable even when things get seriously hot. It doesn’t degrade easily or release impurities into the growth environment.

Tailored for SiC PVT – The ring’s thermal properties are matched to the specific needs of silicon carbide crystal growth. Uniform heat distribution is critical here, and this component is designed to help achieve that.

Handles repeated thermal cycling – We’re talking >2200°C, cycle after cycle. The ring holds its shape and dimensions, so you don’t have to keep adjusting your process parameters.

Low particle generation – Because the PG surface is so dense, graphite dust and loose flakes are drastically reduced. That means a cleaner chamber and fewer defects in the final boule.

Customizable – Need a different wall thickness, a specific coating depth, or a non-standard inner diameter? We can work from your drawings, your furnace geometry, or even an existing sample.

Batch-to-batch consistency – Whether you’re ordering a few pieces for R&D or regular shipments for production, we keep the specs tight so you don’t have to re-qualify every new lot.

Where do these rings actually get used?

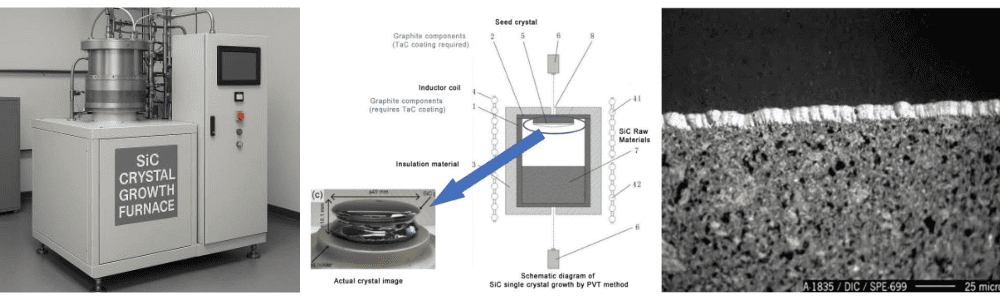

● SiC crystal growth furnaces – especially the PVT type

● Semiconductor hot-zone assemblies

● High-temperature graphite furnace components

● SiC boule production lines

● Wide-bandgap semiconductor manufacturing tools

● R&D systems for crystal growth experiments

Why choose PG-coated over standard graphite?

Here’s a quick side-by-side:

The more ordered graphite structure in the PG coating not only boosts heat transfer – it also helps stabilise thermal gradients, which becomes especially important when you’re growing larger-diameter crystals.

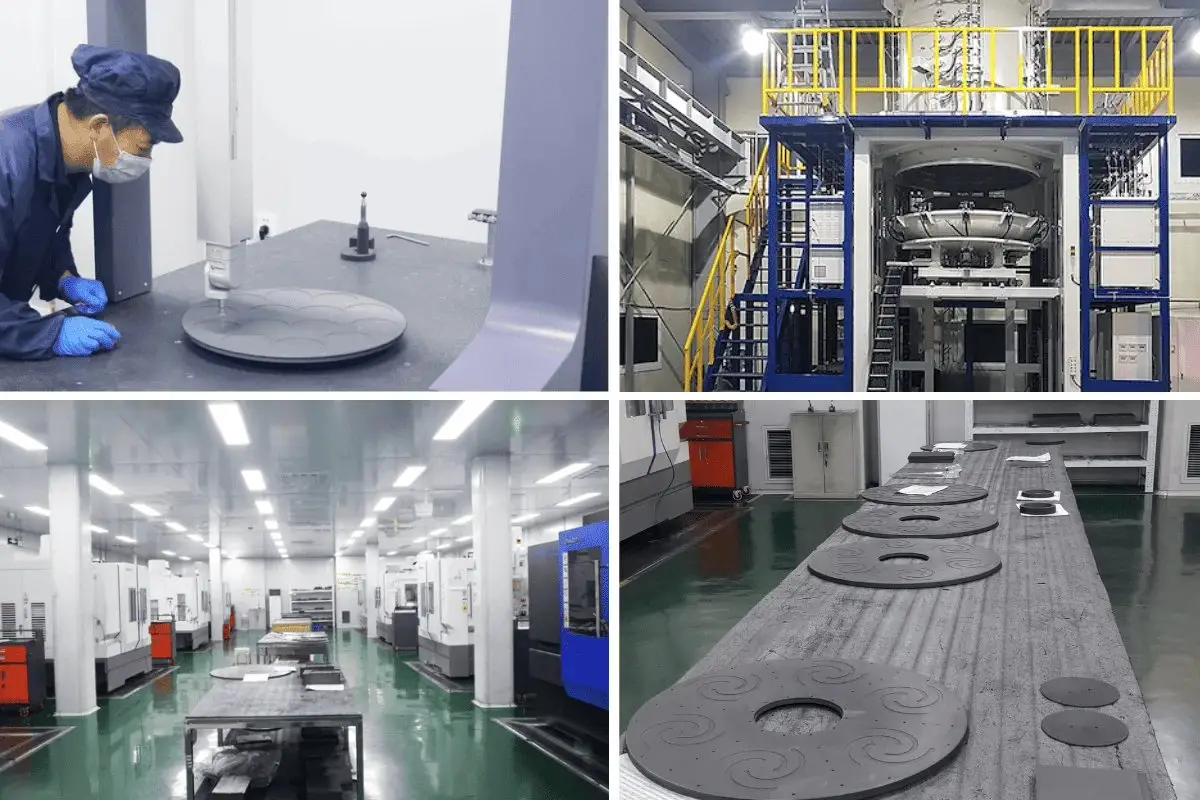

Manufacturing and quality control – what we actually do?

We machine the graphite substrate precisely, then run a tightly controlled CVD deposition process to apply the PG layer. After that, every batch goes through:

● Dimensional checks

● Coating thickness measurement

● Surface quality inspection (both visual and instrument-based)

● Purity verification

● Batch-to-batch consistency tests

If you’re running several furnaces, you already know how annoying it is when replacement parts don’t match. That’s why we pay extra attention to keeping every batch as close as possible – it saves you time on recalibration and helps maintain stable growth from furnace to furnace.

What Semixlab offers in coated graphite?

We specialise in high-performance coated graphite for semiconductors, SiC crystal growth, and advanced thermal processing. Our product line includes:

● PG-coated graphite rings

● PG-coated crucibles

● PG-coated guides and liners

● PG-coated thermal field components

● SiC-coated graphite parts

● Custom-made graphite assemblies

We’ve worked with quite a few SiC wafer manufacturers and equipment suppliers over the years, so we understand the real-world demands of high-temperature, high-purity environments.

Typical technical specs (reference values)

These can be adjusted to meet your specific requirements.

Some questions we hear often

1. What’s the real difference between PG coating and PyC coating?

In short, PG (pyrolytic graphite) has a more ordered crystal structure, which gives it better thermal conductivity and heat management. PyC (pyrolytic carbon) also offers good surface protection, but its thermal performance is generally lower. If your thermal field uniformity is critical, PG is usually the better fit.

2. Can you make these rings to my own design?

Absolutely. Outer diameter, inner diameter, height, coating thickness, even partial coating areas – we can follow your drawings or replicate an existing sample.

3. Which industries use them most?

Mainly SiC crystal growth, semiconductor furnace manufacturing, and any high-temperature materials processing where purity and thermal stability matter.
