Thermal Field Graphite Parts

Thermal Field Graphite Parts form the foundational architecture of the heat environment in epitaxial reactors, where temperature consistency directly defines crystal quality, doping precision, and defect density. In Si and SiC epitaxy—where operating temperatures can exceed 1600°C—our isostatic graphite heaters, susceptors, reflectors, and insulation shields establish a stable and symmetrical thermal field essential for uniform film growth.

These components are manufactured using ultra-high-purity graphite grades with extremely low metallic contamination to ensure minimal particle generation and optimum wafer-edge and center-to-edge uniformity. Combined with advanced SiC coatings engineered for resistance to H₂, Cl₂, NH₃, and hydrocarbon precursors, Semixlab’s graphite parts maintain structural integrity and thermal efficiency through long-duration, high-temperature cycles, significantly extending mean time between maintenance in both horizontal and vertical epitaxy systems.

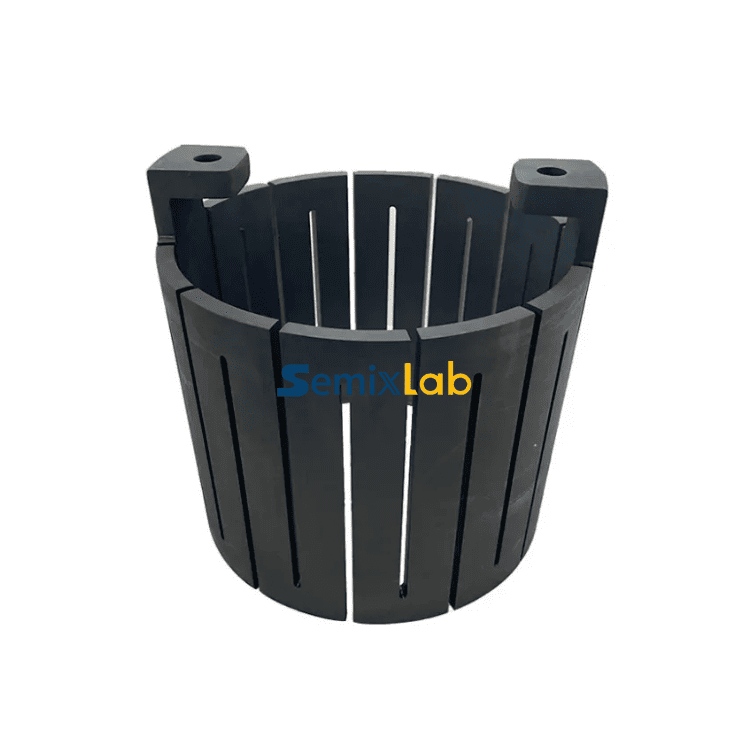

Beyond epitaxy, thermal field graphite components play a decisive role in high-temperature annealing for wide-bandgap devices, particularly SiC MOSFETs. These applications demand stability at temperatures approaching 1700–1800°C under inert or vacuum atmospheres. Semixlab’s engineered graphite heaters, susceptor trays, and insulation cylinders ensure uniform thermal exposure to the wafer during dopant activation, ohmic contact formation, and defect repair. Our components mitigate thermal gradients that can otherwise induce wafer bow, slip lines, or crystalline stress—all detrimental to device performance and yield. The optimized thermal field produced by Semixlab solutions enhances dopant activation efficiency and reduces thermal shock, enabling repeatable and tightly controlled high-temperature processes.

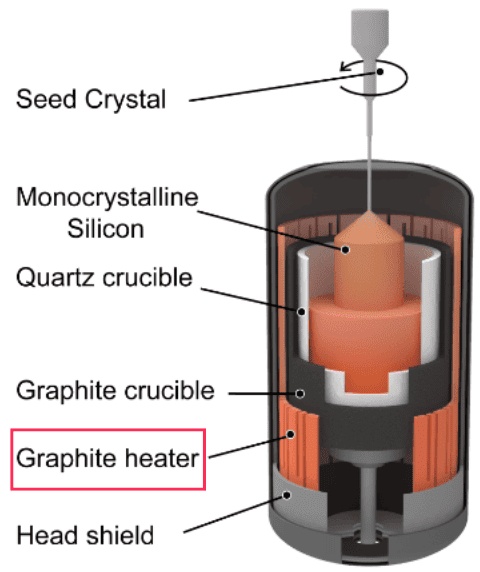

Czochralski single crystal furnace thermal field

In RTP and RTA systems, where semiconductor wafers must undergo rapid heating and cooling cycles on the order of hundreds of degrees per second, precision thermal field components are equally critical. Though RTP primarily uses lamp-based heating, the internal thermal architecture—often composed of pyrolytic graphite reflectors, low-outgassing graphite supports, and engineered shielding components—defines how radiative energy reaches the wafer.

Semixlab’s graphite parts are designed to stabilize radiative heat distribution, suppress edge-hotspot effects, and support ultra-fast thermal transitions without warping or outgassing. This ensures process uniformity for critical steps such as dopant activation, silicide formation, annealing of ultra-shallow junctions, gate stack optimization, and strain-engineering treatments in advanced CMOS nodes.

Across all these high-temperature processes, Semixlab’s Each Thermal Field Graphite Part is engineered to optimize heat flow, reduce temperature gradients, and operate reliably under repeated thermal shock, corrosive chemistries, and ultra-clean vacuum environments. Our integrated quality system ensures dimensional accuracy, surface purity, and coating adhesion consistency that meet or exceed the requirements of leading semiconductor equipment manufacturers. Semixlab sincerely hopes to become your long-term partner in China.
