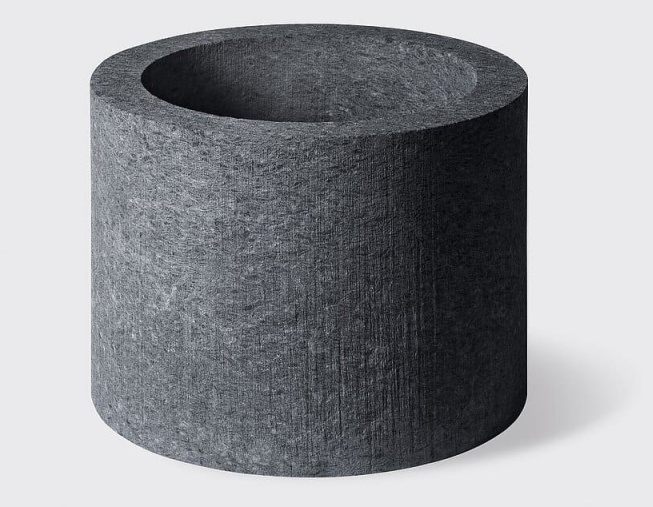

Porous Graphite for SiC Crystal Growth

In the semiconductor manufacturing industry, porous graphite has become an indispensable advanced carbon material due to its unique physical and chemical properties. Semixlab is committed to providing high-quality porous graphite products to meet your application needs in harsh environments.

Basic Physical Properties of Porous Graphite

Porous graphite is based on high-purity graphite material and is processed using advanced techniques to form a porous structure with uniform structure and controllable porosity. Its main physical properties include:

● High Purity: Carbon content as high as 99.9%, with extremely low impurity levels.

● Excellent Chemical Inertness: Remains stable even under extreme temperatures and corrosive atmospheres.

● Low Thermal Conductivity: Exhibits outstanding thermal insulation performance in high-temperature environments.

● Controlled Porosity: Supports customization of various pore sizes, with stable and adjustable gas permeability.

● Thermal Stability: Can operate stably under extreme conditions above 2000°C.

These properties make porous graphite an ideal choice for thermal field systems, insulation components, and gas diffusion components, particularly in SiC single crystal growth furnaces, where its performance advantages are particularly prominent.

The Core Role of Porous Graphite in Silicon Carbide Single Crystal Growth Furnaces

In advanced silicon carbide (SiC) single crystal growth furnaces, porous graphite plays a pivotal role, with its three key functions being critical to the successful growth of high-quality SiC crystals:

Low thermal conductivity provides excellent insulation, maintaining high temperatures inside the furnace and establishing precise temperature gradients.

During SiC crystal growth, the furnace must maintain extreme temperatures as high as 2000°C or higher. Porous graphite, with its extremely low thermal conductivity, minimizes heat loss, ensuring stable heat distribution within the furnace chamber. More importantly, by precisely designing the geometric shape and pore distribution of the porous graphite insulation components, it is possible to cleverly form and maintain the precise temperature gradient essential for crystal growth within the furnace. This gradient serves as the driving force for SiC vapor transport and ordered crystal growth; even minor temperature fluctuations can lead to crystal defects. Therefore, low thermal conductivity graphite insulation is the cornerstone for ensuring the thermal stability of the SiC crystal growth environment.

Its high-purity characteristics confer excellent chemical inertness, enabling it to resist high-temperature corrosion and protect the furnace body, thereby ensuring a clean growth environment.

The growth environment for SiC single crystals demands extremely high purity. High temperatures inside the furnace not only accelerate reactions but may also cause material degradation or the introduction of impurities. Semixlab's high-purity porous graphite (High Purity Porous Graphite) exhibits exceptional chemical inertness, meaning it does not react with the silicon sources, carbon sources, or protective atmospheres (such as argon) required for SiC growth, even at extremely high temperatures. This high-temperature corrosion resistance effectively protects the expensive furnace structure and internal components from erosion, fundamentally eliminating the risk of impurity introduction. A clean, contamination-free growth environment is a prerequisite for producing high-quality silicon carbide crystals.

Its most core and unique function lies in its controllable permeability, which allows gases (carrier gases and reaction byproducts) to diffuse uniformly and stably through the material, achieving a dynamic balance of low-pressure conditions inside the furnace. This prevents sudden pressure changes and turbulence, thereby ensuring the stable transport of SiC vapor phase materials and high-quality growth at the crystal interface.

This is the most critical and irreplaceable function of porous graphite in SiC crystal growth. SiC crystals are typically grown using the sublimation method, which involves transporting silicon-carbon vapor to the seed crystal surface via carrier gas. The unique controlled permeability of porous graphite means that its interconnected microporous structure allows carrier gas (such as argon) and reaction byproducts (such as unreacted Si and C vapor) to diffuse through at a uniform and stable rate. This controlled gas flow is crucial as it enables:

1. Achieve dynamic equilibrium in the low-pressure environment inside the furnace: Maintain a stable low-pressure environment within the furnace chamber to prevent the formation of localized high-pressure or negative-pressure zones, which are ideal conditions for SiC vapor transport.

2. Prevent sudden pressure changes and turbulence: Uncontrolled gas flow may cause sudden changes in furnace pressure or turbulence, severely disrupting the transmission path of SiC vapor, leading to uneven transmission, and thereby affecting the uniform growth and quality of the crystal.

3. Ensure stable transport of SiC vapor phase materials: Stable gas diffusion ensures that SiC precursors (silicon and carbon vapor) can continuously and uniformly reach the seed crystal surface, avoiding issues such as insufficient supply or excessive accumulation.

4. Promoting high-quality crystal interface growth: Stable vapor phase transmission is the foundation for forming flat, defect-free crystal interfaces. By precisely controlling gas diffusion through porous graphite, defects such as dislocations and microtubes during crystal growth can be effectively suppressed, ultimately yielding high-quality, large-sized SiC single crystals.

Semixlab's Porous Graphite Product Advantages and Service Guarantees

1. Support for multiple specifications and customization services

Semixlab can customize porous graphite products according to customer requirements, including but not limited to:

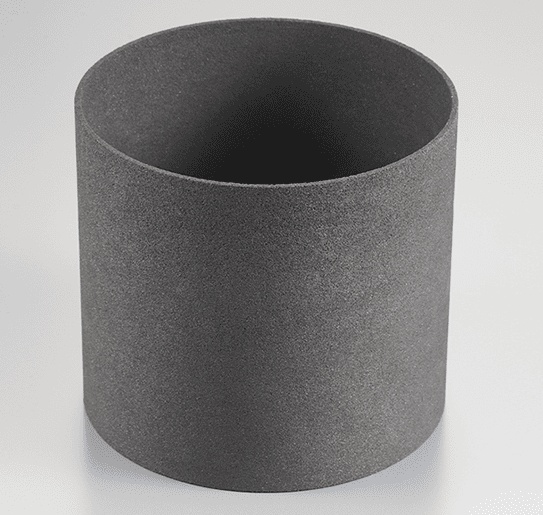

● Insulation bricks, thermal insulation covers

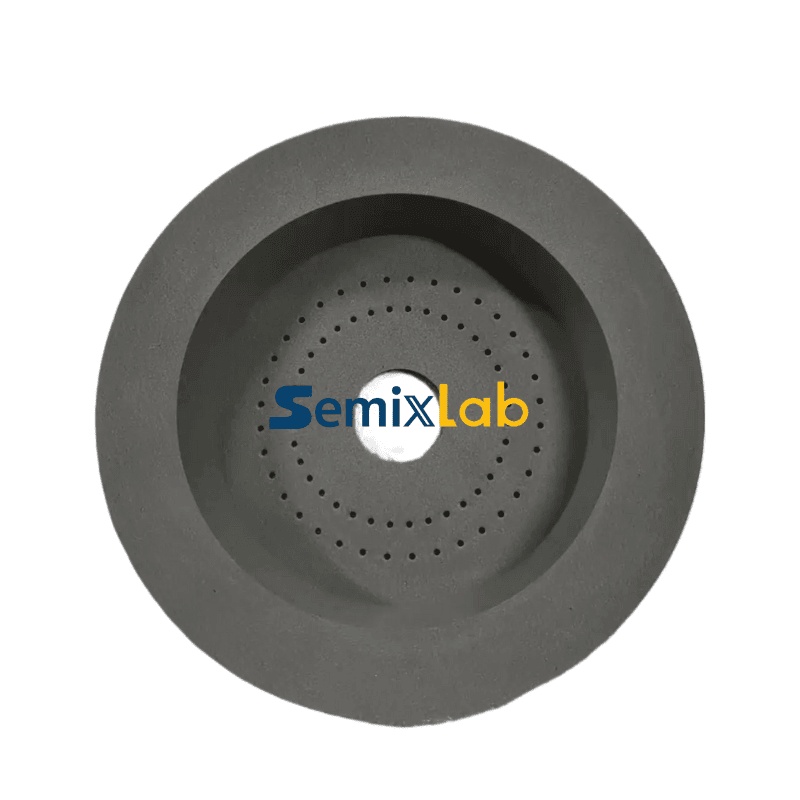

● Gas diffusion plates, permeable blocks

● Special thermal field components (custom manufacturing available based on provided drawings)

● Customization range: Porosity 10%-80%, thickness ±0.1mm precision control

2. Rapid Delivery and High-Standard Packaging

We offer a flexible and efficient supply chain system:

● Delivery cycle: Standard specifications shipped within 5-7 working days; custom parts delivered within 10-15 days after drawing confirmation.

● Packaging standards: Vacuum dust-proof packaging + multi-layer cushioning protection to ensure safe and contamination-free transportation.

Choosing Semixlab's porous graphite means you are choosing high quality, professional customization, and exceptional service. We look forward to collaborating with you to provide reliable material solutions for your cutting-edge technological applications.
