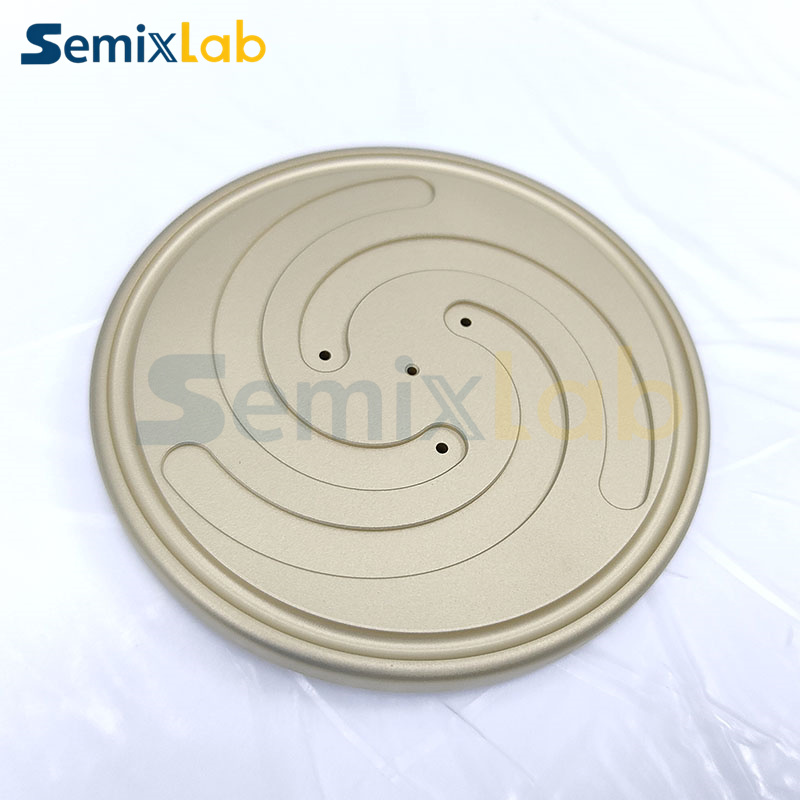

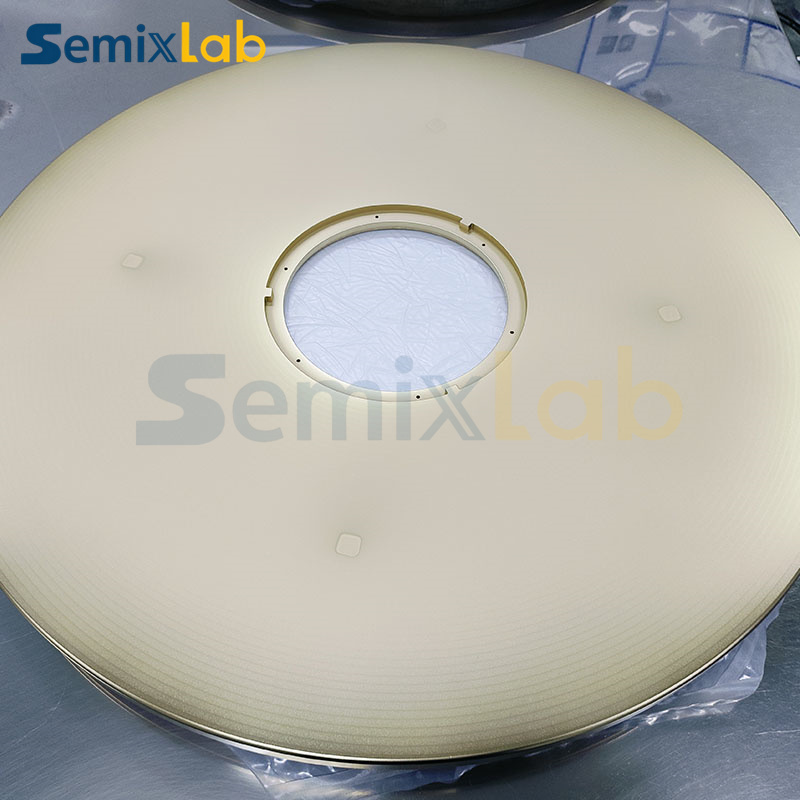

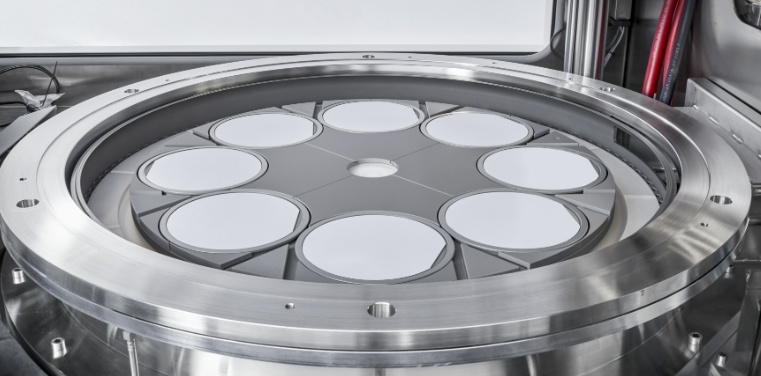

TaC Planetary Epi Susceptor
| Place of Origin: | China |
| Brand Name: | Semixlab |
| Model Number: | TPES0001 |
| Certification: | ISO 9001 |
| Minimum Order Quantity: | 1pc |
| Price: | Customized |
| Packaging Details: | Standard export box |
| Delivery Time: | 30-45days |
| Payment Terms: | To be negotiated |
| Supply Ability: | 200pcs per months |
Description
The Aixtron planetary disk is a key bearing component in metal-organic chemical vapor deposition (MOCVD) equipment, mainly used in the growth process of silicon carbide (SiC) epitaxial sheets. Its core structure adopts the composite design of high-purity graphite material + tantalum carbide (TaC) coating.
Quick Detail:
1. Other names: Aixtron planetary disk,TaC coated planetary susceptor,SiC Epi susceptor for Aixtron reactor
2. Application: For high-performance silicon carbide (SiC), gallium nitride (GaN) and other third generation semiconductor epitaxial process.
3. Core parameters:
The structure remains stable at 2000℃ to avoid coating volatilization contamination of the reaction chamber.
Effective resistance to erosion of precursor gases such as SiH₄ and HCl. Reduces surface defects on the substrate.
The thermal conductivity of the graphite +TaC composite structure is close to that of the SiC wafer (SiC: 490 W/m·K), reducing the lattice distortion caused by thermal stress.
The surface roughness of TaC coating is < 1μm, which can inhibit the fall off of micro-particles and ensure the surface quality of epitaxial layer (defect density < 0.5/cm²).
Product overview
The Aixtron planetary disk is a key bearing component in metal-organic chemical vapor deposition (MOCVD) equipment, mainly used in the growth process of silicon carbide (SiC) epitaxial sheets. Its core structure adopts the composite design of high-purity graphite material + tantalum carbide (TaC) coating:
Graphite substrate: provides excellent thermal conductivity (~130 W/m·K) and high temperature stability (temperature > 2000℃) to ensure a uniform thermal field distribution in the reaction chamber.
Tantalum carbide coating: The graphite surface is covered by a chemical vapor deposition (CVD) or sintered process, usually 30-100um thick, to form a dense chemical barrier.
The design is optimized for the high temperature (1500-1700℃), highly corrosive (silane, HCl and other gases) environment of SiC epitaxial growth, significantly improving process stability and wafer yield.
Tantalum carbide (TaC) and silicon carbide (SiC) coating performance comparison
| Coating Material | Tantalum carbide (TaC) coating | Silicon carbide (SiC) coating |
| Melting point | Melting point 3880℃ (higher temperature limit) | Melting point 2700℃ (easy to decompose at high temperatures) |
| Thermal expansion coefficient | Thermal expansion coefficient 6.3×10⁻⁶/K (better matching with graphite) | 4.5×10⁻⁶/K (easy to crack due to thermal mismatch) |
| Resistance to silicon vapor corrosion | Excellent resistance to silicon vapor corrosion (low TaC and Si reactivity) | poor (at high temperatures SiC reacts with Si to form gas phase Si₂C) |
| Particle pollution risk | Very low risk of particle contamination (dense coating without pores) | High (coating prone to local peeling) |
| Lifetime | Service life > 5000 hours (extended maintenance cycle more than 50%) | About 2000-3000 hours |

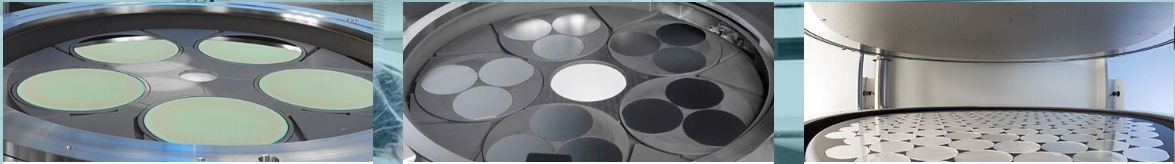

Production compatibility
Adapted to Aixtron G5 WW C and Prophet platform, it can carry 6/8-inch wafers with a capacity of > 30 wafers/batch.
Technical value and industry significance
Graphite + tantalum carbide coated planetary susceptor solves the bottleneck problem of traditional SiC coating in the long-term high temperature process:
Cost optimization: extend the replacement cycle of consumables and reduce the epitaxial cost of a single piece by more than 20%;
Yield improvement: reduce particle pollution and heat spot effect, and promote the epitaxial sheet yield to exceed 95%;
Process window broadening: supports higher growth rates (> 50μm/h) and thicker epitaxial layers.
As global SiC capacity is upgraded to 8 inches, this technology will be a critical path to break through the epitaxial consistency bottleneck.
Specifications
| Physical properties of TaC coating | |
| Density | 14.3 (g/cm³) |
| Specific emissivity | 0.3 |
| Thermal expansion coefficient | 6.3 10-6/K |
| Hardness (HK) | 2000 HK |
| Resistance | 1×10-5 Ohm*cm |
| Thermal stability | <2500℃ |
| Graphite size changes | -10~-20um |
| Coating thickness | ≥20um typical value (35um±10um) |
| Thermal conductivity | 9-22(W/m·K) |
| Physical properties of isostatic graphite | ||
| Property | Unit | Typical Value |
| Bulk Density | g/cm³ | 1.83 |
| Hardness | HSD | 58 |
| Electrical Resistivity | μΩ.m | 10 |
| Flexural Strength | MPa | 47 |
| Compressive Strength | MPa | 103 |
| Tensile Strength | MPa | 31 |
| Young' s Modulus | GPa | 11.8 |
| Thermal Expansion(CTE) | 10-6K-1 | 4.6 |
| Thermal Conductivity | W·m-1·K-1 | 130 |
| Average Grain Size | μm | 8-10 |
Applications
Silicon carbide power device epitaxy
It is suitable for 4H-SiC homogeneous epitaxial growth, which is used to manufacture high-voltage MOSFET and IGBT devices above 1200V.
Demand for new energy vehicles, photovoltaic inverters, rail transit and other fields has surged.
Third generation semiconductor development
Supports GaN-on-SiC heteroepitaxy process for 5G RF devices and millimeter wave communication chips.
Competitive Advantage
Summary of core advantages:
TaC coating is superior to traditional SiC coating in terms of corrosion resistance at high temperature, thermal matching and long life, especially suitable for silicon vapor enrichment environment in SiC epitaxial growth.
Resistance to extreme heat:
The structure remains stable at 2000℃ to avoid coating volatilization contamination of the reaction chamber.
Chemical resistance:
Effective resistance to erosion of precursor gases such as SiH₄ and HCl. Reduces surface defects on the substrate.
Thermal field uniformity:
The thermal conductivity of the graphite +TaC composite structure is close to that of the SiC wafer (SiC: 490 W/m·K), reducing the lattice distortion caused by thermal stress.
Low pollution output:
The surface roughness of TaC coating is < 1μm, which can inhibit the fall off of micro-particles and ensure the surface quality of epitaxial layer (defect density < 0.5/cm²).
