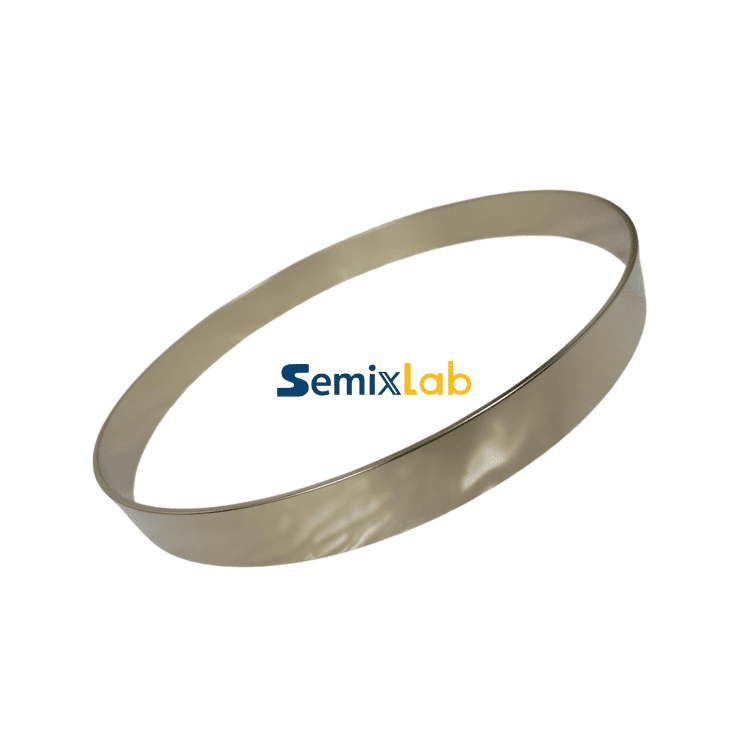

TaC coated graphite sealing ring

Semixlab’s TaC Coated Graphite Sealing Ring is a high-reliability sealing component engineered for semiconductor manufacturing equipment operating under extreme thermal, chemical, and cleanliness constraints. By combining a high-purity graphite substrate with a dense, chemically stable tantalum carbide (TaC) coating, this sealing solution delivers long-term dimensional stability, superior corrosion resistance, and ultra-low particle generation in the most demanding front-end processes.

Tantalum carbide is one of the most thermally stable and chemically inert refractory ceramics available, with an exceptionally high melting point(≥3880℃) and strong resistance to halogen-based and chlorinated process chemistries. When applied as a conformal coating to precision-machined graphite sealing rings, TaC forms a robust diffusion barrier that suppresses graphite sublimation, surface erosion, and impurity release at elevated temperatures. This coating architecture allows the sealing ring to maintain structural integrity and sealing performance in environments where uncoated graphite or conventional ceramic materials may degrade or contaminate the process.

In epitaxy systems, particularly those used for silicon, SiC, and compound semiconductor growth, the TaC coated graphite sealing ring plays a critical role in maintaining chamber integrity at temperatures that can exceed 1200 °C. Installed at high-temperature sealing interfaces and hot-zone structural boundaries, the sealing ring benefits from the low thermal expansion and isotropic mechanical properties of the graphite core, while the TaC coating provides a hard, chemically inert surface that resists attack from hydrogen, HCl, and metal-chloride-based precursors. This combination helps stabilize reactor pressure and gas flow conditions, reduces particle generation near the growth zone, and minimizes the risk of carbon or metallic contamination that can directly impact epitaxial layer uniformity and electrical performance.

In LPCVD and high-temperature CVD processes, sealing components are exposed not only to sustained high temperatures but also to aggressive precursor gases and long process cycles. Semixlab’s TaC Coated Graphite Sealing Ring is designed to withstand these conditions by leveraging the excellent chemical stability and low vapor pressure of TaC at elevated temperatures. The dense coating acts as a protective shield against corrosive species, significantly slowing material degradation and extending service life compared to uncoated graphite sealing solutions. This improved durability contributes to longer preventive maintenance intervals, more stable process conditions, and reduced tool downtime in high-volume manufacturing environments.

Diffusion and oxidation processes place additional emphasis on long-term thermal stability and resistance to slow material degradation over extended furnace runs. In these applications, the TaC coated graphite sealing ring maintains consistent sealing performance during prolonged exposure to high temperatures and repeated thermal cycling. The TaC layer effectively limits surface reactions and material loss, while the graphite substrate absorbs thermal stress without cracking or distortion. This balance of hardness and compliance helps preserve furnace atmosphere control, supporting uniform dopant diffusion profiles and oxide growth rates.

Engineered with a focus on material science, process compatibility, and long-term reliability, Semixlab’s TaC Coated Graphite Sealing Rings are manufactured using controlled coating processes to ensure uniform thickness, strong adhesion, and low defect density. Their proven performance in high-temperature, corrosive semiconductor processes makes them an ideal sealing solution for advanced equipment platforms.
