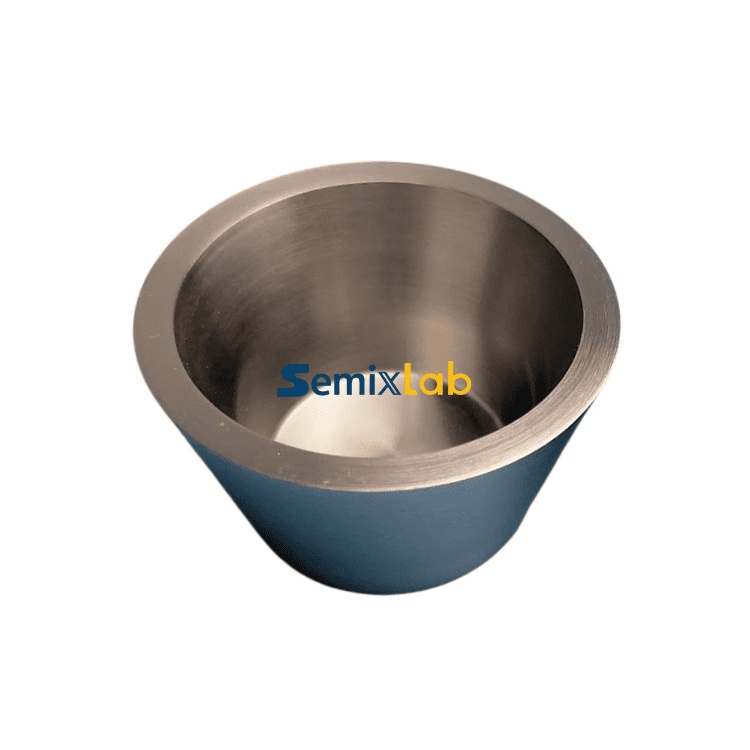

TaC Coated Crucible for Crystal Growth

In single-crystal growth environments—whether for SiC physical vapor transport (PVT), GaN ammonothermal processing, sapphire (Al₂O₃) Kyropoulos/Czochralski methods—the stability and purity of the crucible define the ultimate quality of the grown boule. Semixlab’s Tantalum Carbide Coated Crucible is engineered specifically for these ultra-high-temperature and chemically aggressive growth environments, delivering superior thermal uniformity, minimal contamination, and extended lifespan compared with traditional graphite or refractory metal crucibles.

At the core of our design is a dense, uniform Tantalum Carbide (TaC) coating deposited on high-purity isostatic graphite. TaC, with its melting point above 3880°C, extremely low vapor pressure, and remarkable chemical inertness, remains stable in the harshest growth atmospheres—carbon-rich PVT chambers, ammonia-rich GaN reactors, or oxygen-bearing sapphire furnaces. This allows the crucible to maintain structural integrity and suppress parasitic reactions that would otherwise introduce impurities, degrade crystal yield, or distort thermal fields critical to ingot morphology.

For SiC PVT crystal growth, the TaC-coated inner surface significantly reduces graphite evaporation and prevents carbon contamination of the seed and charge materials. The coating also enhances radiation heat transfer, improving the axial temperature gradient consistency that directly governs SiC polytype stability, dislocation density, and boule diameter scalability.

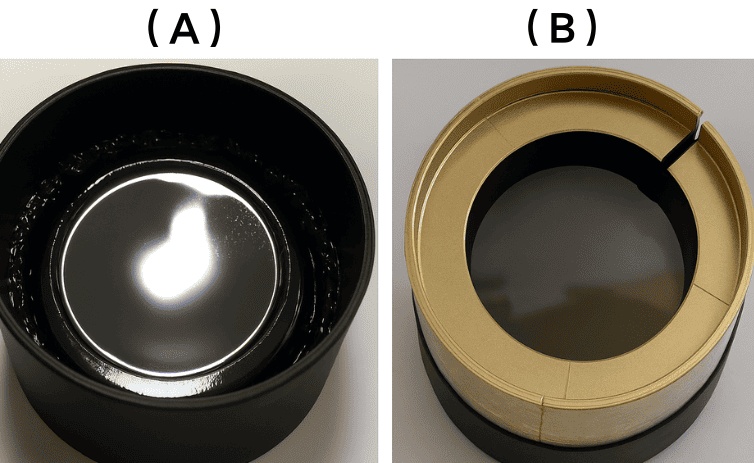

The Effect of TaC Coated Crucible for SiC Single Crystal Growth

In GaN crystal growth, TaC’s resistance to severe corrosion under supercritical ammonia enables long-duration runs with stable thermal conductivity and minimal surface degradation, supporting higher crystallographic uniformity.

During sapphire growth, the coating acts as a barrier against graphite oxidation and prevents Al₂O₃-reactive interactions that could cause crucible embrittlement or melt contamination. In GaAs growth, TaC’s chemical inertness suppresses arsenic-related reactions while maintaining an exceptionally clean melt environment, improving electrical uniformity and reducing defect formation.

Semixlab’s manufacturing process ensures coating density, thickness uniformity, adhesion strength, and thermal shock resistance suitable for extended multi-cycle operation. Each crucible undergoes dimensional metrology, coating integrity verification, and high-temperature stress testing to meet the quality requirements of advanced crystal growth equipment manufacturers.
