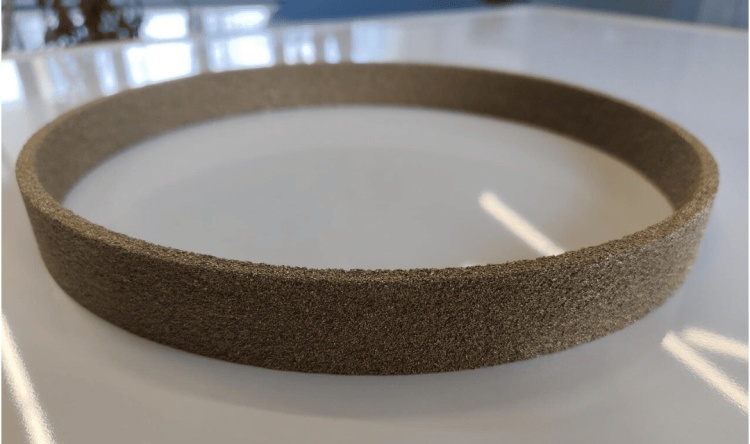

Porous TaC Coated Graphite Ring

Porous TaC Coated Graphite Rings from Semixlab are essential components in high-demand semiconductor environments, providing unmatched durability, stability, and process optimization. They are the ideal choice for SiC epitaxy, GaN MOCVD, diffusion, and CVD processes where reliability and performance are critical.

Material & Properties

● Graphite Base: High-density isostatic graphite with porous structure for reduced thermal mass and enhanced heat transfer.

● Tantalum Carbide Coating: High-melting-point tantalum carbide (3880°C) ensures extreme hardness, chemical inertness, and long-term durability in harsh process gases.

● Porous Design: Improves gas flow distribution, reduces local stress during rapid thermal cycling, and minimizes particle contamination.

Semixlab Services

● Custom Design & Dimensions tailored to specific epitaxy or furnace equipment.

● High-Purity Materials to meet strict semiconductor contamination requirements.

● Strict Quality Control ensuring coating thickness, adhesion, and porosity optimization.

● Global Technical Support for semiconductor fabs and equipment manufacturers.

Contact Semixlab today to request samples, technical specifications, or customized solutions.

Key Applications in Semiconductor Processes

1. Epitaxy Processes (SiC, GaN, and Si)

In epitaxial growth processes such as MOCVD, CVD, and SiC epitaxy, porous TaC coated graphite rings play a critical role in susceptor assemblies and gas flow control structures. Their porous design helps regulate carrier gas distribution, preventing turbulence and ensuring uniform precursor delivery to the wafer surface. This results in improved layer thickness uniformity, fewer defects, and higher device yield. The TaC coating protects the graphite substrate from aggressive precursors like HCl, NH₃, silane, and hydrocarbons, extending service life under continuous high-temperature conditions (>1500°C).

2. Diffusion and Annealing Furnaces

During dopant diffusion and high-temperature annealing after ion implantation, graphite rings are used as support and thermal balancing elements within furnace systems. Their porous structure lowers thermal mass, enabling faster ramp-up and cool-down cycles while reducing thermal stress on wafers. The TaC coating prevents oxidation and chemical degradation, ensuring the ring maintains structural integrity across repeated thermal cycles. By stabilizing wafer environments, these rings help achieve consistent dopant profiles and minimized wafer warpage.

3. PECVD and LPCVD Chambers

In PECVD and LPCVD reactors, porous TaC coated graphite rings act as chamber liners, shielding components, or support rings. These environments often expose materials to plasma bombardment and highly corrosive gases such as fluorine- and chlorine-based species. The TaC coating demonstrates superior resistance to etching and plasma erosion, significantly reducing particle shedding and contamination risk. Furthermore, the porous design helps dissipate heat more evenly, ensuring stable film deposition rates and improved process repeatability.

4. Etching and Deposition Environments

In dry etching and thin-film deposition processes, porous TaC coated graphite rings serve as protective barriers and stabilizing elements that mitigate backside deposition and plasma-induced erosion of critical reactor parts. The coating’s hardness and chemical inertness prevent unwanted reactions with process gases, reducing contamination sources. Their application is crucial in maintaining chamber cleanliness, improving uptime, and protecting high-value wafers from yield-killing particle contamination.
