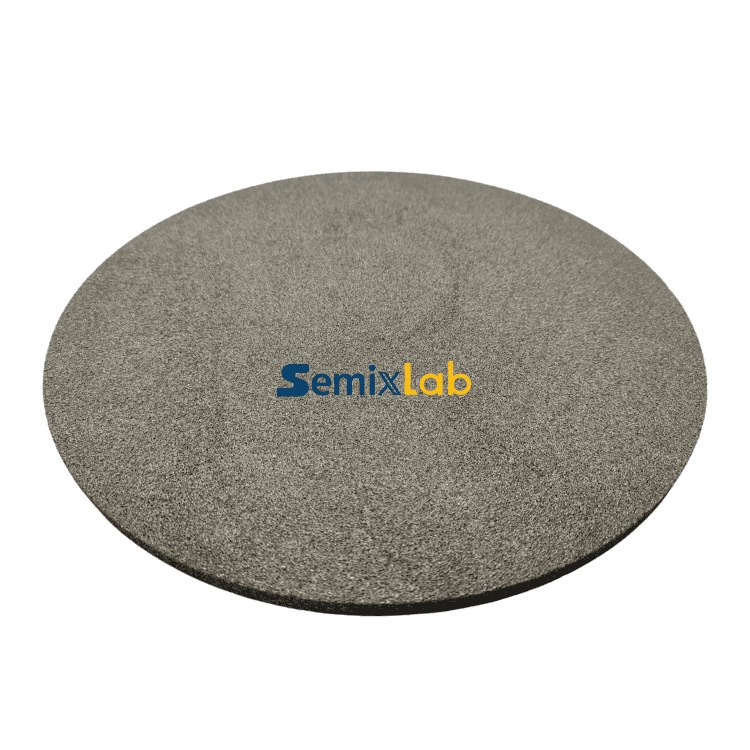

Porous TaC Coated graphite disks for SiC single crystal growth

As silicon carbide (SiC) single crystal growth continues to scale toward larger diameters and tighter defect control, the stability and purity of hot-zone components have become critical to overall crystal yield and device performance. Porous TaC (Tantalum Carbide) coated graphite disks are engineered as advanced functional components within the physical vapor transport (PVT) SiC crystal growth process, playing a decisive role in vapor transport regulation, thermal field stabilization, and contamination control.

In SiC single crystal growth environments operating at ultra-high temperatures typically exceeding 2000 °C, conventional graphite components are vulnerable to chemical erosion, carbon sublimation, and particle generation when exposed to reactive silicon-containing vapor species. Semixlab’s porous TaC coated graphite disks address these challenges by combining a carefully engineered porous graphite substrate with a conformal, high-purity TaC coating. This design provides both controlled gas permeability and a chemically inert barrier, enabling precise management of Si- and C-containing vapor flux between the source material and the crystal growth interface.

Within the growth crucible, porous TaC coated graphite disks function as vapor flow moderators and diffusion regulators. The interconnected pore structure allows controlled transmission of sublimated species while suppressing turbulent vapor flow and localized concentration gradients. This controlled mass transport contributes directly to a more uniform growth interface, improved radial thickness consistency, and enhanced crystal morphology. At the same time, the TaC coating isolates the underlying graphite from direct chemical interaction with Si vapor, significantly reducing graphite consumption, surface degradation, and carbon-related contamination during extended growth runs.

Thermally, TaC’s exceptional melting point(≥3880℃) and stability ensure structural integrity and coating adhesion under repeated thermal cycling. The porous architecture further contributes to localized thermal resistance tuning, helping to stabilize axial and radial temperature gradients within the hot zone. This thermal moderation is particularly beneficial for large-diameter SiC boule growth, where interface stability and thermal symmetry are essential for minimizing micropipe formation, basal plane dislocations, and other crystallographic defects.

From a contamination control perspective, porous TaC coated graphite disks offer a substantial advantage over uncoated or conventionally coated components. The dense TaC layer effectively suppresses graphite dusting and particle release, supporting lower background impurity levels and cleaner growth environments. This translates into improved crystal purity, reduced defect nucleation risk, and higher downstream wafer yields.

Semixlab designs and manufactures porous TaC coated graphite disks using controlled coating processes that balance coating thickness, pore retention, and coating penetration depth. This ensures long-term permeability stability without pore blockage, maintaining consistent vapor transport characteristics throughout the component’s service life. Each product is developed with compatibility across mainstream SiC PVT furnace designs and is suitable for both research-scale and volume production crystal growth systems.
