6 inch TaC coated graphite heater

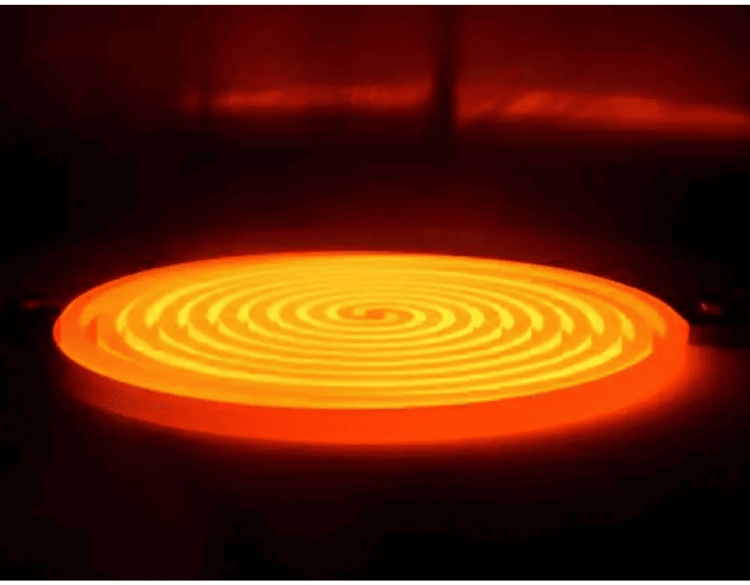

Semixlab's 6-inch TaC-coated graphite heaters typically utilize an isostatically pressed or high-density graphite substrate. A heating circuit (typically a concentric thread or circular pattern) is machined and a protective layer of tantalum carbide (TaC) is deposited on the surface or in key locations. These heaters utilize resistive heating to provide a highly uniform and reliable heat source directly for small wafers (e.g., 6" / 150 mm) or susceptors. The TaC coating significantly enhances component lifespan and cleanliness in high-temperature, corrosive process environments.

Ⅰ. Roles in Major Semiconductor Processes

1. Epitaxy (SiC, GaN, and Si Layers)

In epitaxial growth processes, the 6 inch TaC coated graphite heater is a core thermal element responsible for achieving stable and uniform substrate heating. Precise temperature control is essential for maintaining layer thickness uniformity, crystal quality, and defect minimization in SiC, GaN, and Si epitaxy. The TaC coating protects the graphite substrate from chlorinated and hydrogen-based gases, which are highly corrosive at elevated temperatures. This ensures long service life while preventing contamination and particle release into the chamber.

2. Chemical Vapor Deposition (CVD / MOCVD / PECVD)

In CVD and MOCVD systems, heaters are critical for maintaining a controlled environment for thin-film growth. The TaC coating provides plasma erosion resistance and chemical inertness, making the heater suitable for PECVD and LPCVD environments where fluorine and chlorine species are used. Its high emissivity and thermal conductivity ensure fast heating and cooling rates, enhancing process stability.

3. Diffusion and Annealing Processes

During high-temperature dopant diffusion and post-implantation annealing, uniform heating is critical for achieving precise dopant activation and diffusion profiles. The TaC coated graphite heater minimizes thermal stress and ensures a controlled wafer environment. Its resistance to oxidation and thermal cycling improves reliability and repeatability across multiple process runs.

4. Etching and Surface Treatment

In dry etching environments, heaters coated with TaC function as substrate heating platforms that withstand fluorine- and chlorine-based plasma conditions. The coating protects the graphite base from erosion and particle release, while maintaining thermal stability for the wafer surface. This leads to improved etching precision and reduced chamber contamination.

Ⅱ. Key Materials and Structures:

Graphite Susceptor: Excellent electrical conductivity, high thermal conductivity, strong machinability, and low heat capacity (favoring rapid temperature ramping).

Heating Circuit Shape: Concentric rings/spirals are used to achieve radial temperature uniformity; multi-zone configurations can be used to fine-tune temperature gradients/deviations.

TaC (Tantalum Carbide) Coating: High melting point (≈3880°C), high hardness, chemical and plasma resistance, and excellent electrical conductivity. As a protective layer, it reduces chemical reactions with process gases, minimizes particle shedding, and extends life.

Interface Coupling/Adhesion: Adhesion between TaC and graphite, coating thickness, and stress control are key process control factors, impacting life and reliability.

Ⅲ . Process Challenges and solutions

When using a 6 inch TaC coated graphite heater in semiconductor processes, there are several engineering points that require careful attention. Addressing these issues properly ensures stable performance, longer service life, and consistent wafer quality.

1. Coating Adhesion and Peeling Risk

Challenge:

If the TaC coating does not bond strongly with the graphite base, it may peel or crack after repeated heating and cooling cycles. This can generate particles and reduce heater life.

Solution:

● Apply advanced surface preparation before coating (etching and cleaning to increase bonding strength).

● Use optimized CVD parameters to achieve a dense and uniform TaC layer.

● Conduct adhesion testing during quality inspection to avoid hidden failures.

2. Thermal Stress and Cracking

Challenge:

Rapid temperature changes during processes like RTP (Rapid Thermal Processing) can create stress between the graphite and the TaC layer, leading to cracks or deformation.

Solution:

● Design the heater with matching thermal expansion properties between graphite and TaC.

● Use controlled heating/cooling ramps to reduce thermal shock.

● Employ high-purity, fine-grain graphite with low thermal expansion for the substrate.

3. Uniform Heating Across Wafer

Challenge:

If the TaC coating or graphite base has uneven thickness, it can cause hot spots or cold zones, leading to wafer defects.

Solution:

● Apply precise machining to the graphite substrate with strict dimensional tolerances.

● Ensure coating uniformity with advanced CVD control.

● Use thermal mapping during quality control to confirm consistent heat distribution.

4. Service Lifetime and Replacement Cycle

Challenge:

Over time, even the best heaters degrade under extreme conditions, potentially causing unexpected downtime.

Solution:

● Establish a predictive replacement schedule based on operating hours and gas chemistry.

● Keep spare heaters on hand to minimize production interruptions.

● Work with the supplier to perform lifetime testing and failure analysis for continuous improvement.

In essence, the materials and structure design of the 6 inch TaC coated graphite heater ensures high-temperature stability, corrosion resistance, and structural integrity, making it an indispensable component for advanced epitaxy, CVD,and diffusion processes. Feel free to consult us for further customized solutions.
