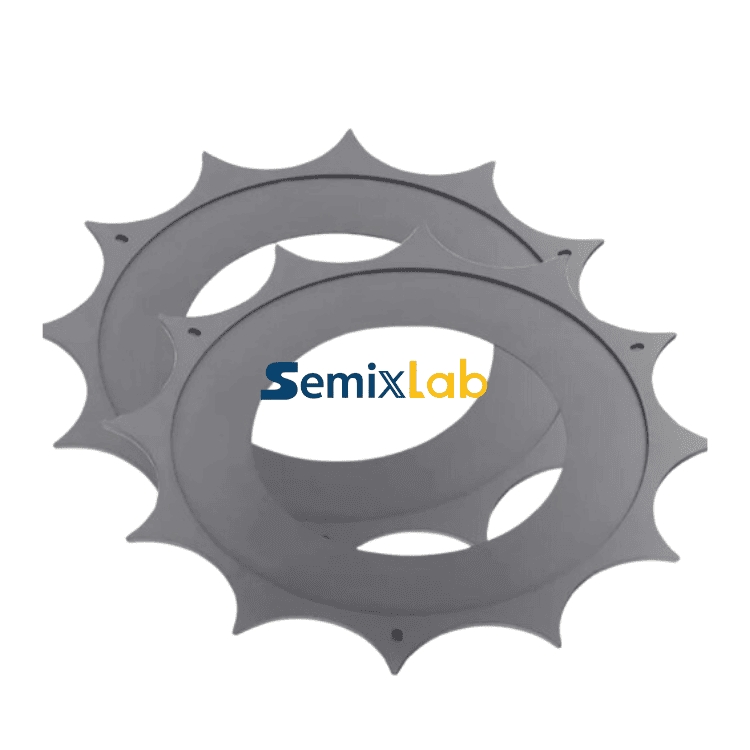

SiC coated Graphite Satellite cover for MOCVD

The SiC coated graphite satellite cover is a critical component in MOCVD (Metal-Organic Chemical Vapor Deposition) systems, specifically designed to ensure stability, durability, and cleanliness during the epitaxial growth of GaN, SiC, GaAs, and other compound semiconductor materials. Built on a base of isostatic graphite and coated with high-purity CVD SiC, it combines excellent thermal properties with superior chemical resistance, meeting the stringent requirements of next-generation semiconductor manufacturing.

Material & Physical Characteristics

Graphite Substrate: Fine-grain isostatic graphite, providing high mechanical strength and machinability.

CVD SiC Coating: CVD silicon carbide layer, ensuring exceptional hardness, corrosion resistance, and protection against particle generation. And Excellent heat transfer characteristics for uniform temperature distribution across the MOCVD susceptor system. Long service life under repeated high-temperature cycling (>1200°C).

Applications in MOCVD

The SiC coated graphite satellite cover is an essential component in MOCVD epitaxy reactors, designed to ensure stable wafer handling, precise temperature control, and contamination-free processing. Its applications extend across a wide range of compound semiconductor manufacturing, including GaN, GaAs, InP, SiC, and other III-V materials.

1. Wafer Loading & Support

The satellite cover serves as the structural carrier for wafers during the epitaxial growth process. Its graphite base provides excellent mechanical stability, while the SiC coating prevents erosion and ensures smooth wafer placement. This combination reduces the risk of wafer slippage or micro-cracking under high-temperature operation.

2. Uniform Rotation for Even Deposition

In MOCVD, wafers are rotated at controlled speeds to achieve uniform precursor gas distribution. The satellite cover ensures smooth and stable rotation, minimizing vibration and maintaining uniform epitaxial layer thickness across the wafer surface — a critical factor for high-yield LED, power device, and RF device production.

3. Thermal Management & Heat Transfer

Temperature uniformity is essential for crystal quality. The high thermal conductivity of SiC coating ensures effective heat transfer from the susceptor to the wafer, reducing thermal gradients. This results in consistent layer properties such as doping concentration, crystal orientation, and film stress.

4. Protection Against Process Gases

MOCVD processes involve aggressive gases such as NH₃ (ammonia), H₂ (hydrogen), and metal-organic precursors. The SiC layer acts as a robust barrier against chemical attack, preventing graphite erosion, particle generation, and contamination of the reactor chamber.

5. Minimization of Particle Contamination

Particle contamination directly impacts device performance and yield. The SiC coating provides a smooth, dense, and hard surface that resists flaking and dust formation, ensuring cleaner epitaxial films and higher device reliability.

6. Extended Service Life in High-Temperature Cycling

During repeated heating and cooling cycles, uncoated graphite degrades quickly. The SiC coating significantly improves oxidation resistance and mechanical durability, thereby extending service intervals, reducing downtime, and lowering overall cost of ownership for fabs and R&D labs.

Semixlab Advantages

Semixlab is committed to delivering high-performance graphite and SiC coated solutions for semiconductor epitaxy equipment. Our strengths include:

● Customization – Tailored designs to match different MOCVD reactor models and customer requirements.

● Technical Consultation – Over 20 years of semiconductor manufacturing expertise to support process optimization.

● Strict Quality Control – Each satellite cover undergoes dimensional accuracy checks, coating thickness verification, and high-temperature stability tests.

● Reliable After-Sales Service – Dedicated support team ensures quick response and continuous customer guidance.

The SiC coated graphite satellite cover by Semixlab is engineered to deliver outstanding thermal stability, corrosion resistance, and cleanliness for MOCVD processes. By ensuring wafer surface quality and extending equipment uptime, it provides a cost-effective and reliable solution for compound semiconductor epitaxy. Contact Semixlab today to customize your SiC coated graphite components and enhance your MOCVD production performance.
