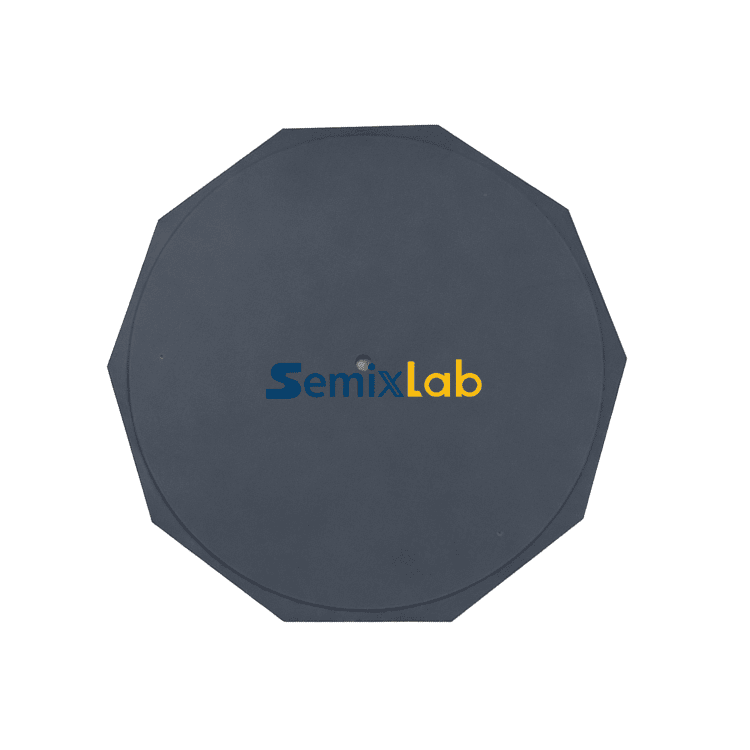

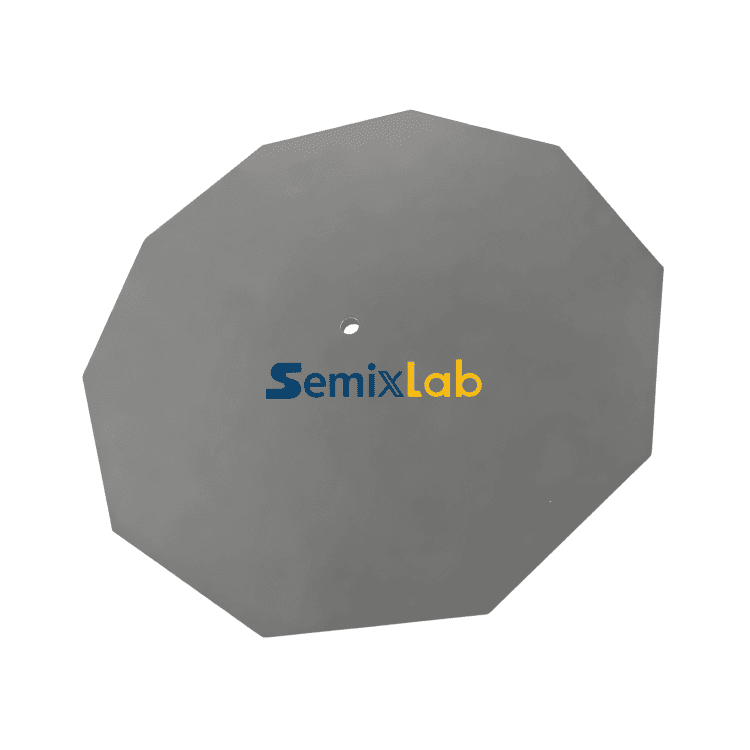

SiC Coated Top Plate for LPE PE2061S

The SiC Coated Top Plate for LPE PE2061S is a structural component specifically designed for installation in the upper reaction zone of the LPE PE2061S liquid phase epitaxy system. In compound semiconductor manufacturing, particularly in LPE growth processes, thermal field integrity and contamination control are critical to epitaxial layer quality. Positioned atop the reactor assembly, the top plate plays a critical role in maintaining chamber geometry, stabilizing the thermal environment, and preserving internal process purity during prolonged high-temperature operation.

Within the LPE PE2061S system, the top plate is mounted above the primary growth zone as part of a closed thermal structure that dictates heat flow patterns and reactor stability. Although it does not directly contact the wafer or molten solution, its structural and thermal properties influence the overall temperature distribution within the chamber. In liquid phase epitaxy, precise temperature gradients are required to control growth rate, dopant incorporation, and interface smoothness. Any deformation, surface degradation, or instability in the top structure components disrupts thermal reflection and conduction pathways, leading to non-uniform growth conditions. Semixlab SiC Coated Top Disks maintain dimensional stability and structural rigidity during repeated thermal cycling from 700°C to over 1100°C.

The Top Plate is manufactured from high-purity isostatic graphite and coated with a dense, uniform silicon carbide (SiC) layer, combining mechanical strength with advanced chemical protection. The SiC coating acts as a highly inert diffusion barrier, isolating the graphite substrate from reactive vapors and metallic substances potentially present in liquid phase epitaxy (LPE) environments. The SiC-coated surface significantly reduces risks associated with particle formation, carbon diffusion, and corrosion-related degradation, ensuring stable epitaxial layer performance.

Thermal stability is another key feature of the Silicon Carbide Coating Top Plate. Silicon Carbide exhibits excellent thermal conductivity and thermal shock resistance, enabling uniform heat distribution and minimizing localized stress concentrations during heating and cooling cycles. The top plate facilitates the formation of a stable and predictable thermal field within the PE2061S reactor, supporting repeatable epitaxial growth conditions and enhancing batch-to-batch consistency. In high-precision liquid phase epitaxy (LPE) production environments, maintaining reactor symmetry and minimizing thermal deformation are critical for achieving stringent process control.

Semixlab's SiC Coated Top Plate for LPE PE2061S undergoes rigorous quality control and factory testing to ensure precise consistency in coating adhesion, thickness uniformity, surface integrity, and dimensional accuracy. This component is specifically engineered for compatibility with the PE2061S system architecture, ensuring precise alignment and seamless integration with epitaxial reactor assemblies. Simultaneously, the Top Plate serves as a critical reactor component supporting high-quality liquid phase epitaxy. Within LPE epitaxial processes, this part plays a vital role in enhancing contamination control, maintaining stable thermal performance, and improving long-term operational reliability in advanced compound semiconductor manufacturing environments. We look forward to your further inquiries.
