TaC Coating: A Revolutionary Protective Layer in Semiconductor

In the high-tech world of semiconductor manufacturing, materials that can withstand extreme conditions are critical to ensuring precision, durability, and performance. Among these materials, Tantalum Carbide (TaC) coating has emerged as a standout solution, particularly for protecting graphite-based components in harsh environments. In this article, we delve into the science behind TaC coatings, their applications, and how they compare to other coatings like Silicon Carbide (SiC).

1. What is TaC Coating? Chemical Properties and Deposition Methods

Chemical Composition and Key Properties

Tantalum Carbide (TaC) is a ceramic compound composed of tantalum and carbon, with a chemical formula of TaC. It is renowned for its exceptional properties:

High melting point (~3,880°C), making it one of the most refractory materials.

Extreme hardness (up to 15–20 GPa), comparable to diamond.

Excellent chemical inertness, resisting corrosion from acids, alkalis, and molten metals.

Superior thermal stability with minimal thermal expansion, even under rapid temperature changes.

Deposition Methods: Focus on CVD

TaC coatings can be applied via Physical Vapor Deposition (PVD), thermal spray, or Chemical Vapor Deposition (CVD). At Semixlab, we specialize in CVD-based TaC coatings, a method that offers unparalleled advantages:

Uniformity: CVD enables even coverage on complex geometries, critical for semiconductor components.

Adhesion: Strong bonding to substrates like graphite ensures long-term reliability.

Purity: High-purity coatings minimize contamination risks in sensitive processes.

CVD involves reacting gaseous precursors (e.g., TaCl₅ and CH₄) at high temperatures, forming a dense, crystalline TaC layer. This method is ideal for creating coatings that withstand aggressive semiconductor fabrication environments.

2. TaC Coating on Graphite Substrates: A Game-Changer

Graphite is widely used in semiconductor equipment due to its thermal conductivity and machinability. However, its susceptibility to oxidation and erosion limits its lifespan in corrosive atmospheres (e.g., plasma etching or high-temperature CVD chambers).

TaC-coated graphite solves these challenges:

Corrosion Resistance: Protects graphite from halogen plasmas (Cl₂, F₂) and reactive gases.

Wear Resistance: Reduces particle generation caused by mechanical wear, critical for contamination control.

Extended Lifespan: Coated components last 3–5x longer, reducing downtime and costs.

Applications in Semiconductor Tools:

Heaters and Susceptors: TaC-coated graphite heaters maintain stability in epitaxial growth systems.

Plasma Etch Components: Shields electrodes and focus rings from ion bombardment.

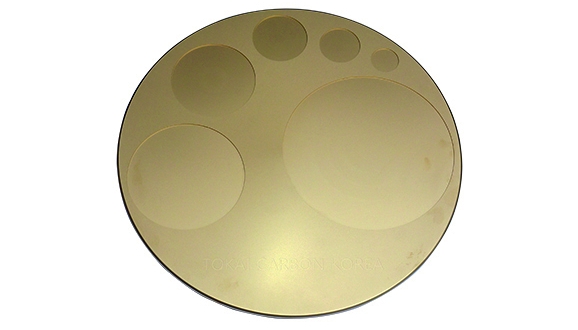

Wafer Carriers: Prevents metal contamination during high-temperature processes.

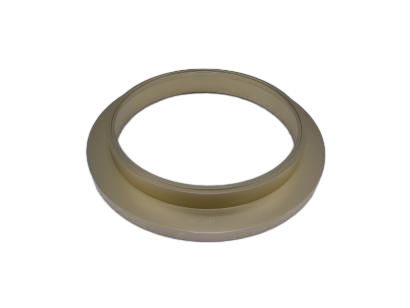

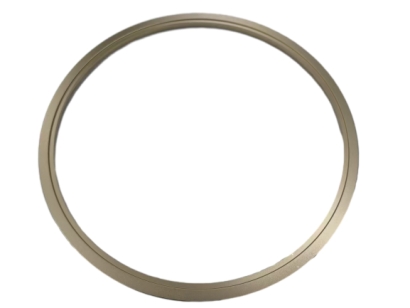

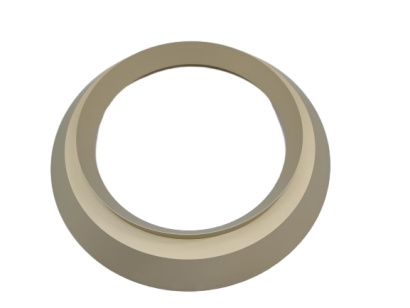

Guide Ring for SiC crystal growth:TaC coated Guide Ring mainly plays the role of protecting crucible, maintaining chemical stability, optimizing thermal field distribution, reducing defects and impurity incorporation in SiC crystal growth, so as to improve crystal quality.

3. TaC vs. SiC Coatings: Which Performs Better?

While Silicon Carbide (SiC) is another popular protective coating, TaC outperforms it in specific scenarios:

Why Choose TaC?

Higher Temperature Tolerance: Ideal for processes exceeding 1,500°C.

Better Plasma Resistance: Critical for advanced nodes (e.g., 3nm FinFETs) with aggressive etch chemistries.

Reduced Metal Contamination: TaC is less reactive with metal precursors in CVD/PVD chambers.

4. TaC in Semiconductor Applications: Enabling Next-Gen Tech

The semiconductor industry’s push toward smaller nodes and 3D architectures (e.g., GAAFETs, 3D NAND) demands materials that endure increasingly harsh conditions. TaC coatings play a pivotal role in:

Etching Systems: Protecting graphite electrodes in plasma etchers from Cl₂/F₂-based plasmas.

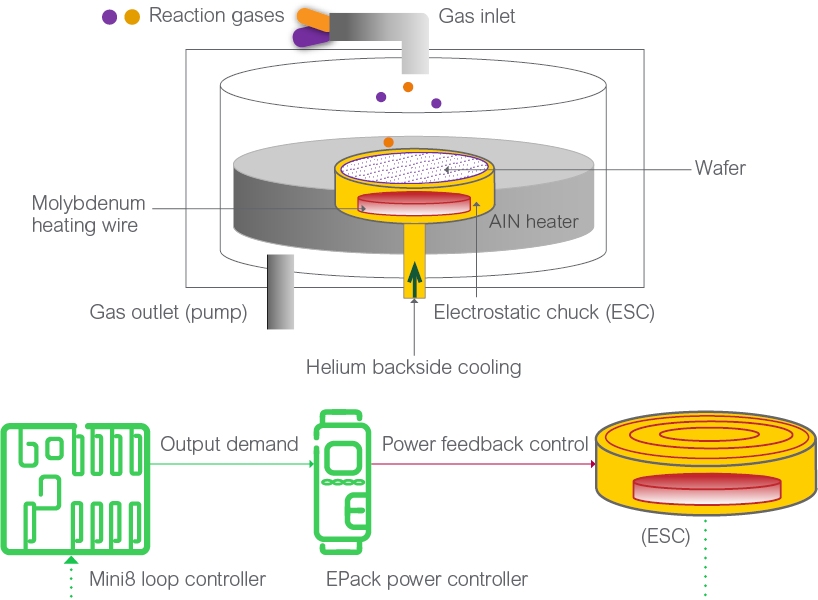

CVD Reactors: Coating susceptors and liners to prevent reaction with precursors like WF₆ or TiCl₄.

Ion Implantation: Shielding components from high-energy ion bombardment.

Metal Deposition: Serving as a diffusion barrier in PVD chambers.

Future Outlook:

As semiconductor processes move toward higher power and temperatures (e.g., GaN/SiC power devices), TaC’s ability to resist degradation will become even more vital.

Why Choose Semixlab for TaC Coatings?

At Semixlab, we combine cutting-edge CVD technology with deep expertise in semiconductor material engineering. Our TaC coatings are:

Tailored: Optimized for your specific substrate and process conditions.

Reliable: Rigorously tested for adhesion, purity, and thermal cycling performance.

Cost-Effective: Extend component lifetimes, reducing maintenance and replacement costs.

Whether you’re developing advanced logic chips, memory devices, or power electronics, TaC coatings from Semixlab provide the robust protection your equipment needs to thrive in extreme environments.
