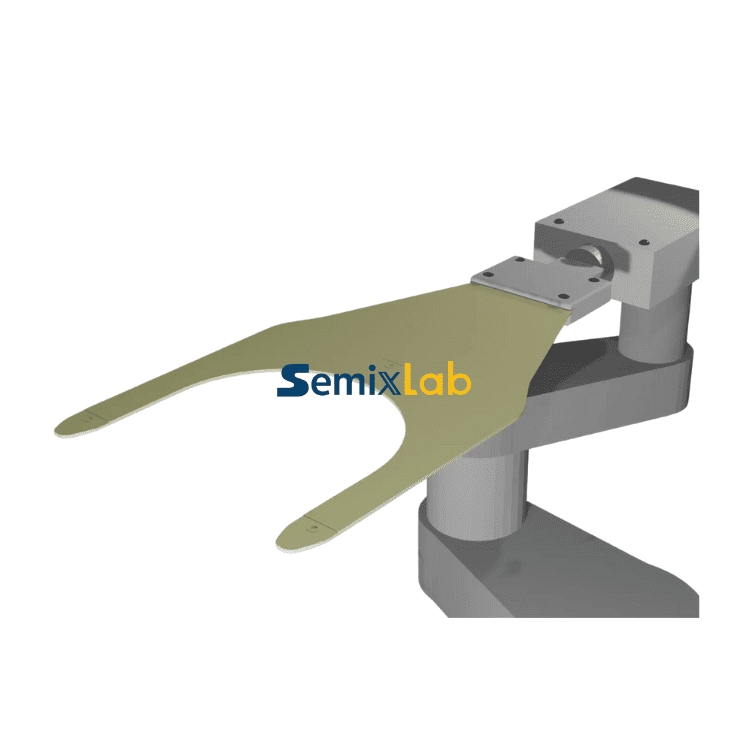

Wafer Transfer End Effector

Name: Wafer Transfer End Effector
Brand: Semixlab
Price: 60.0 USD
Availability: InStock
Rating: 5 (18 reviews)

Semixlab Alumina Ceramic Wafer Transfer End Effector provides unmatched mechanical stability, cleanliness, and corrosion resistance for modern semiconductor wafer automation. By combining high-purity alumina processing, precision machining, and surface finishing excellence, Semixlab supports global wafer fabs in achieving higher yield, lower defect rates, and longer equipment uptime. Looking forward to your consultation at any time.

INQUIRY

Description

Ⅰ. Material and Physical Advantages

The Semixlab Wafer Transfer End Effector is manufactured from high-purity Alumina (Al₂O₃) ceramic, engineered to provide exceptional mechanical and thermal stability in advanced semiconductor processing environments.

This precision component is designed for high cleanliness, structural rigidity, and long-term resistance to plasma and corrosive gases—making it the preferred choice for wafer handling in CVD, PECVD, etching, oxidation, and epitaxy equipment.

Key Material Advantages:

● Purity ≥ 99.5%: Ensures zero metal ion contamination, maintaining wafer surface integrity.

● High Hardness (Mohs ~9): Exceptional abrasion resistance for repeated wafer contact.

● Thermal Stability up to 1000°C: Ideal for hot wafer transfer operations.

● Excellent Electrical Insulation: Volume resistivity >10¹⁴ Ω·cm prevents ESD damage.

● Ultra-Smooth Surface Finish (Ra ≤ 0.02 μm): Minimizes wafer scratches and particle generation.

● Strong Chemical and Plasma Resistance: Withstands HF, Cl₂, CF₄, and O₂ plasma exposure.

Compared with quartz or carbon composite alternatives, Alumina ceramics offer superior rigidity, purity, and longevity under repeated thermal and vacuum cycling conditions.

Ⅱ. Common Process Challenges and Engineering Solutions

Challenge	Cause	Semixlab Engineering Solutions
Particle Generation	urface roughness or micro-cracks from repetitive handling	Mirror polishing (Ra ≤ 0.02 μm) and precision chamfering; regular ultrasonic cleaning
Wafer Slippage	Uneven surface friction or poor vacuum distribution	Optimized groove geometry and micro-texture coating for enhanced wafer grip
Static Charge Build-Up	Insufficient charge dissipation under vacuum	Use of semiconductive Al₂O₃-TiO₂ composite to improve charge release
Plasma Erosion or Chemical Attack	Continuous exposure to corrosive gases	Use of dense-sintered Al₂O₃ (>99.8%) with SiC or Y₂O₃ coatings for surface protection
Thermal Shock Damage	Rapid temperature transitions between process zones	Fine-grain alumina design with low CTE and preheating protocols to reduce stress

Applications

Roles and Applications in Semiconductor Processes

Semixlab Wafer Transfer End Effector serves as the critical interface between robotic handling systems and delicate silicon wafers, ensuring precise, stable, and contamination-free transport between process chambers.

Main Application Scenarios:

1. Wafer Loading and Unloading

Used in LPCVD, PECVD, and oxidation furnaces, alumina end effectors maintain wafer alignment and eliminate micro-vibration during insertion and removal from process chambers.

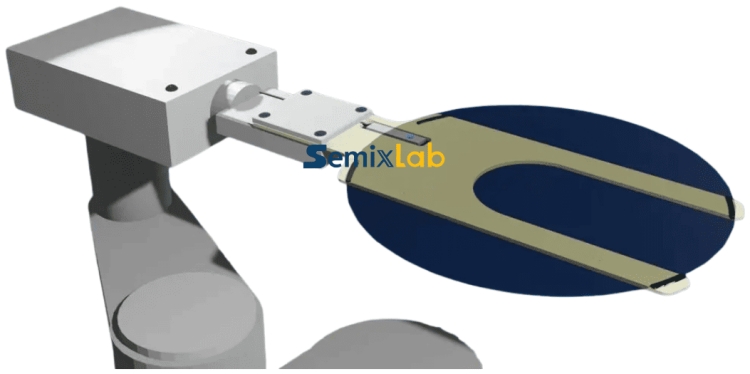

Wafer Transfer End Handling Arm

2. Robotic Handling Systems

Integrated into automated wafer transfer modules, these effectors provide repeatable positioning accuracy, critical for high-throughput and precision wafer fabs.

3. High-Temperature Process Handling

Thanks to its excellent thermal stability, the alumina effector supports post-deposition wafer transfer after high-temperature processes such as epitaxial growth and annealing.

4. Plasma and Etch Chamber Integration

Resistant to reactive gases and plasma erosion, the alumina effector ensures durable performance in plasma etchers and cleaning systems.

5. Contamination-Control Environments

Its ultra-clean surface and chemical inertness make it suitable for critical process nodes (<10 nm), where even trace contamination impacts device yield.

Competitive Advantage

Semixlab Ceramic End Effector Advantages

● Precision: ISO-level dimensional control and sub-micron flatness for stable wafer contact.

● Purity: 100% cleanroom-compatible materials with rigorous outgassing and contamination testing.

● Customization: Available in multiple geometries (edge grip, vacuum type, fork type) to match different robotic systems.

● Reliability: Proven lifetime performance in high-volume semiconductor fabs worldwide.

Semixlab engineers continuously refine ceramic processing and coating technologies to ensure dimensional precision, minimal particle generation, and extended operational lifespan of each effector. We sincerely look forward to providing you with professional and customized products and technical solutions.
