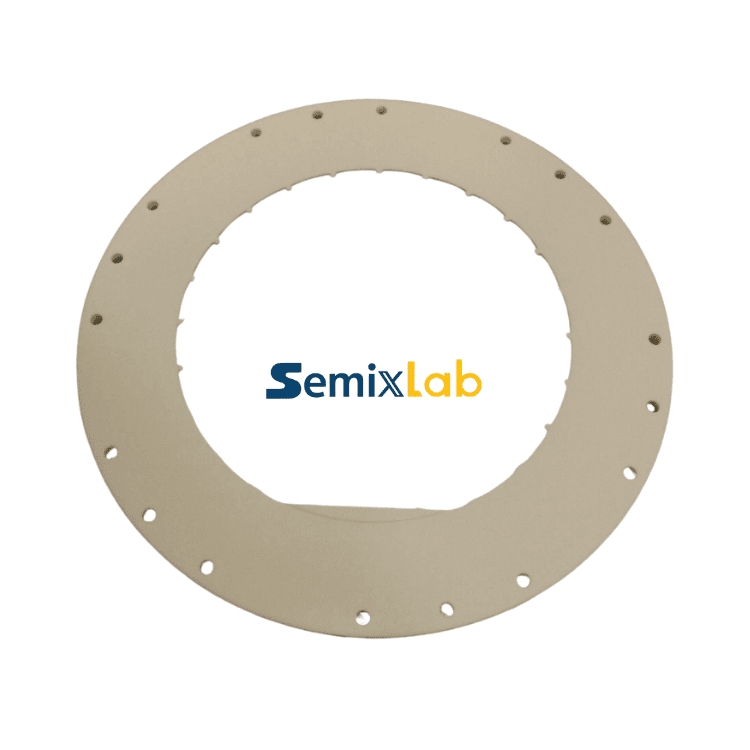

Clamp Ring 0200-15001

The AMAT 0200-15001 Clamp Ring is one of the key structural components in Applied Materials (AMAT) semiconductor equipment chambers. It is a high-purity alumina (Al₂O₃) ceramic clamping/compression component widely used in deposition and etching process modules. Its core value lies not in direct participation in reactions, but in maintaining the structural stability of the chamber and the consistency of the process environment.

1. Product Overview and Material Properties (Al₂O₃)

● Product Name: AMAT 0200-15001 Clamp Ring

● Category: Chamber Ceramic Clamp Ring / Chamber Clamp Component

● Material: High-purity alumina ceramic (Al₂O₃)

2. Core Functions in Semiconductor Equipment

Within the AMAT chamber structure, this Clamp Ring primarily serves the functions of mechanical restraint and process stability assurance:

① Structural Fixation and Chamber Clamping

Used to securely fix critical chamber components, including:

●Quartz (quartz components)

●Liner (chamber lining)

●Edge ring (edge ring structure)

●Showerhead (gas distribution structure)

Precise clamping prevents structural misalignment caused by thermal expansion or vacuum stress.

② Plasma Uniformity Control

The geometric precision of the Clamp Ring directly influences:

●Symmetry of electric field distribution

●Plasma density uniformity

●Edge effect control capability

This is particularly critical for advanced processes (≤28 nm).

③ Particle Control and Yield Assurance

Structural stability reduces micro-vibrations and friction, thereby minimizing:

●micro-particle generation

●wafer edge contamination

●fluctuations in defect density

3. Typical Failure Modes (Failure Analysis)

Based on Semixlab’s experience in equipment maintenance and refurbishment, common failure modes for this type of Al₂O₃ Clamp Ring include:

① Plasma Erosion

Long-term exposure to the reaction gas environment leads to:

●Surface roughening

●Material sputtering

●Increased particle release

② Thermal Stress Cracking

Caused by rapid temperature changes (thermal cycling):

●Formation and propagation of microcracks

●Decreased structural strength

●Potential risk of fracture

③ Edge Chipping

Commonly seen in cases of:

●Uneven installation stress

●Improper torque control

●Mechanical impact

④ Particle Outgassing Failure

Release of Al₂O₃ particles following surface degradation:

●Increased wafer defect rate

●Narrowed process window

⑤ Dimensional Drift

Microstructural changes caused by long-term thermal loading:

●Decreased alignment accuracy

●Deteriorated chamber sealing
